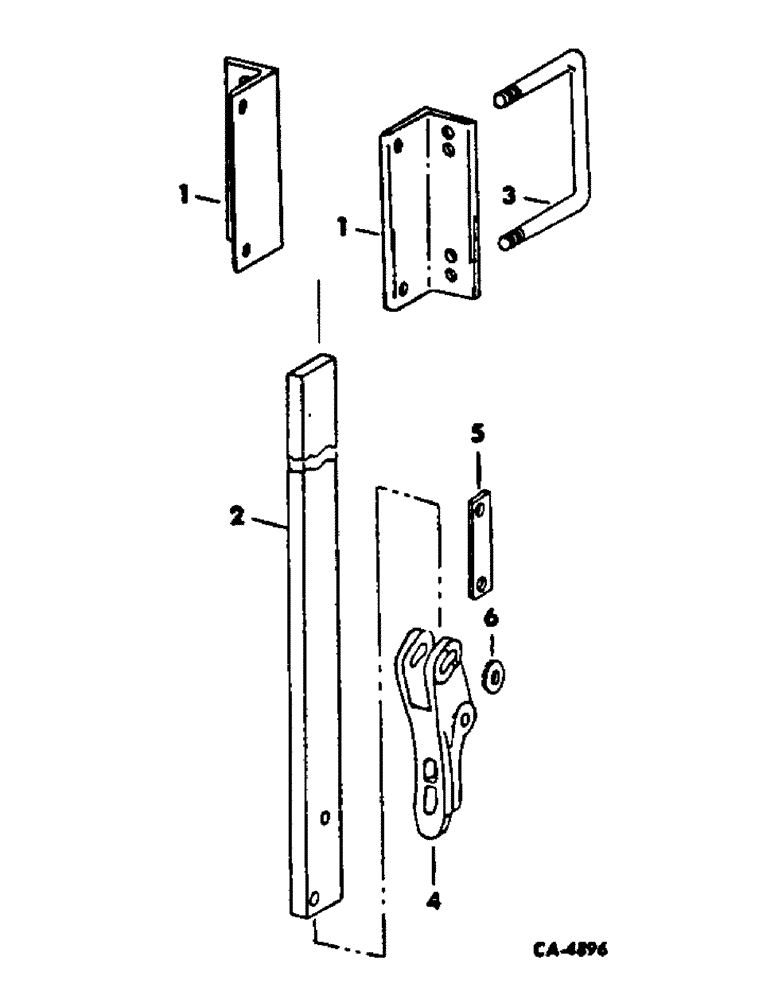

Запчасти Case IH 92 (D-20) - RIPPER SHANK ATTACHMENT

1

55336C1

ANGLE, beam mounting

4шт.

2

61691C1

STANDARD RIPPER

2шт.

3

61692C1

BOLT,U, 3/4" - 10 x 211.80

U-BOLT, 3/4, 5 row

2шт.

3

100502C1

U-BOLT, 3/4, 7 and 9 row

2шт.

280954

NUT,3/4"-10, G5

8шт.

271727

CAM,Hex, 5/8" - 11 x 3", Gr 5

SCREW, 5/8-11 x 3 znd hex-hd cap

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 znd hex.

4шт.

4

487239R1

LEVER

SHANK, replaces 55342C1

2шт.

5

55343C1

CLIP

2шт.

6

523011R1

WASHER

serrated

4шт.

271730

SWASH PLATE,Hex, 5/8" - 11 x 3 3/4", Gr 5

SCREW, 5/8-11 x 3-3/4 znd hex-hd cap

2шт.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

SCREW, 5/8-11 x 3 znd hex-hd cap

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

4шт.

77583C91

PACKAGE

IH trademark, large size, Consists of, product graphics

1шт.

NSS

NOT SOLD SEPARAT

IH trademark 6.58 x 7.09, product graphics

2шт.

NSS

NOT SOLD SEPARAT

IH trademark 7.68 x 8.27, product graphics

2шт.

NSS

NOT SOLD SEPARAT

IH trademark 10.24 x 11.02, product graphics

2шт.

77582C91

PACKAGE

IH trademark, medium size, Consists of, product graphics

1шт.

NSS

NOT SOLD SEPARAT

IH trademark 3.66 x 3.94, product graphics

2шт.

NSS

NOT SOLD SEPARAT

IH trademark 4.39 x 4.72, product graphics

2шт.

NSS

NOT SOLD SEPARAT

IH trademark 5.48 x 5.91, product graphics

2шт.

77581C91

PRODUCT GRAPHIC

PACKAGE, IH trademark, small size, Consists of, product graphics

1шт.

NSS

NOT SOLD SEPARAT

IH trademark 1.46 x 1.57, product graphics

2шт.

NSS

NOT SOLD SEPARAT

IH trademark 2.19 x 2.36, product graphics

2шт.

NSS

NOT SOLD SEPARAT

IH trademark 2.93 x 3.15, product graphics

2шт.

547495R92

DECAL KIT

PACKAGE, International name, For red machines, Consists of, product graphics

1шт.

NSS

NOT SOLD SEPARAT

International 8.56 x .56, product graphics

2шт.

NSS

NOT SOLD SEPARAT

International 14.06 x .94, product graphics

2шт.

NSS

NOT SOLD SEPARAT

International 23.12 x 1.50, product graphics

2шт.

NSS

NOT SOLD SEPARAT

International 35.12 x 2.25, product graphics

2шт.

547497R92

DECAL

PACKAGE, model designation, For red machines, Consists of, product graphics

1шт.

NSS

NOT SOLD SEPARAT

Model designation 8.78 x 2.45, product graphics

2шт.

NSS

NOT SOLD SEPARAT

Model designation 14.08 x 4.5, product graphics

2шт.

NSS

NOT SOLD SEPARAT

Model designation 20.04 x 7.57, product graphics

2шт.

NSS

NOT SOLD SEPARAT

Model designation 15.20 x 7.56, product graphics

2шт.

547496R92

DECAL

PACKAGE, International name, For yellow machines, consists of, product graphics

1шт.

NSS

NOT SOLD SEPARAT

International 8.50 x .50, product graphics

2шт.

NSS

NOT SOLD SEPARAT

International 17.00 x 1.00, product graphics

2шт.

NSS

NOT SOLD SEPARAT

International 23.00 x 1.38, product graphics

2шт.

NSS

NOT SOLD SEPARAT

International 35.00 x 2.12, product graphics

2шт.

547498R92

DECAL

PACKAGE, model designation, For yellow machines, consists of, product graphics

1шт.

NSS

NOT SOLD SEPARAT

Model designation 12.20 x 3.00, product graphics

2шт.

NSS

NOT SOLD SEPARAT

Model designation 15.80 x 4.68, product graphics

2шт.
