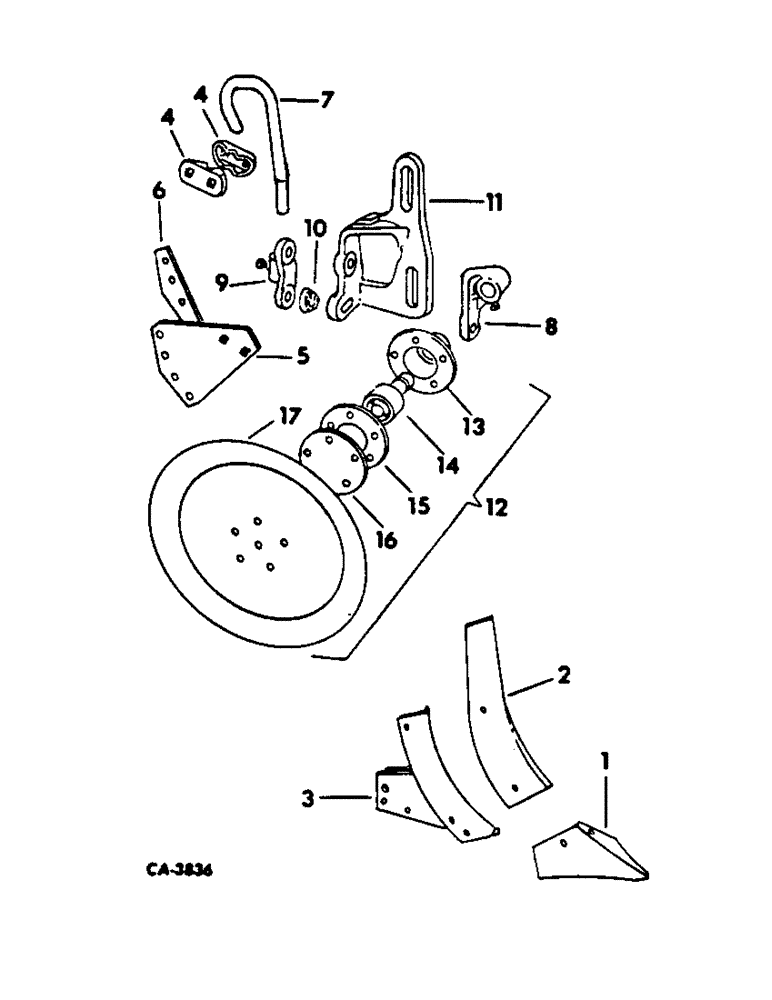

Запчасти Case IH 92 (D-18) - ADJUSTABLE ANGLE ROTARY, MOLDBOARD BOTTOM, ONE PER ROW

1

518437R11

SHARE

ASSEMBLY, 10 in. solid

1шт.

23056R1

BOLT, 3/8 x 7/8 znp no. 3 plow

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

2

518438R11

SHIN ASSSEMBLY

1шт.

23056R1

BOLT, 3/8 x 7/8 znp no. 3 plow

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

3

518439R11

FROG ASSEMBLY

1шт.

4

518432R1

CLAMP

scraper arm

4шт.

5

518441R1

SUPPORT

BLADE, scraper

2шт.

18479R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 2

BOLT, 3/8 x 2 c-z sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

6

518444R1

PAD

EDGE, scraper

2шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

1/4 x 3/4 c-z slt-pan-hd mach

8шт.

120392

WASHER,1/4", SAE

9/32 x 5/8 x .065 c-z

8шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

8шт.

7

483688R1

ARM

scraper

2шт.

8

483686R1

BRACKET, bearing support RH

1шт.

8

483685R1

BRACKET, bearing support LH

1шт.

22215R1

SCREW, 1/2 x 1 c-z sq-hd ov-pt set

2шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2-13 c-z hex. jam

2шт.

271722

TIP,Hex, 5/8" - 11 x 1 7/8", Gr 5

BOLT, 5/8 x 1-7/8 c-z hex-hd cap

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

9

483687R1

BRACKET, scraper holder

2шт.

21228R1

SCREW, 7/16 x 3/4 c-z sq-hd cup-pt set

2шт.

18722R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/2", Gr 2

BOLT, 5/8 x 2-1/2 c-z sq-nk crg

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 c-z hex.

2шт.

10

523011R1

WASHER

serrated

2шт.

11

483690R1

BRACKET, disk adjusting RH

1шт.

11

483689R1

BRACKET, disk adjusting LH

1шт.

18829R1

BOLT

5/8 x 4-1/2 c-z hex-hd mach

1шт.

19460

BOLT, 5/8 x 4-3/4 c-z hex-hd mach

1шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga c-z

4шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 c-z hex.

2шт.

12

483691R91

DISC

DISK ASSY

2шт.

13

483692R1

HUB

disk bearing

2шт.

14

ST686

BALL BEARING,47.63mm OD x 88.09mm L

BEARING ASSY, double row ball

2шт.

15

518445R2

GASKET

disk hub

2шт.

16

484861R1

COVER

disk hole

2шт.

17

483693R1

DISK

2шт.

87013867

RIVET,But Hd, 1/4" x 1"

1/4 x 1 b-hd

10шт.
