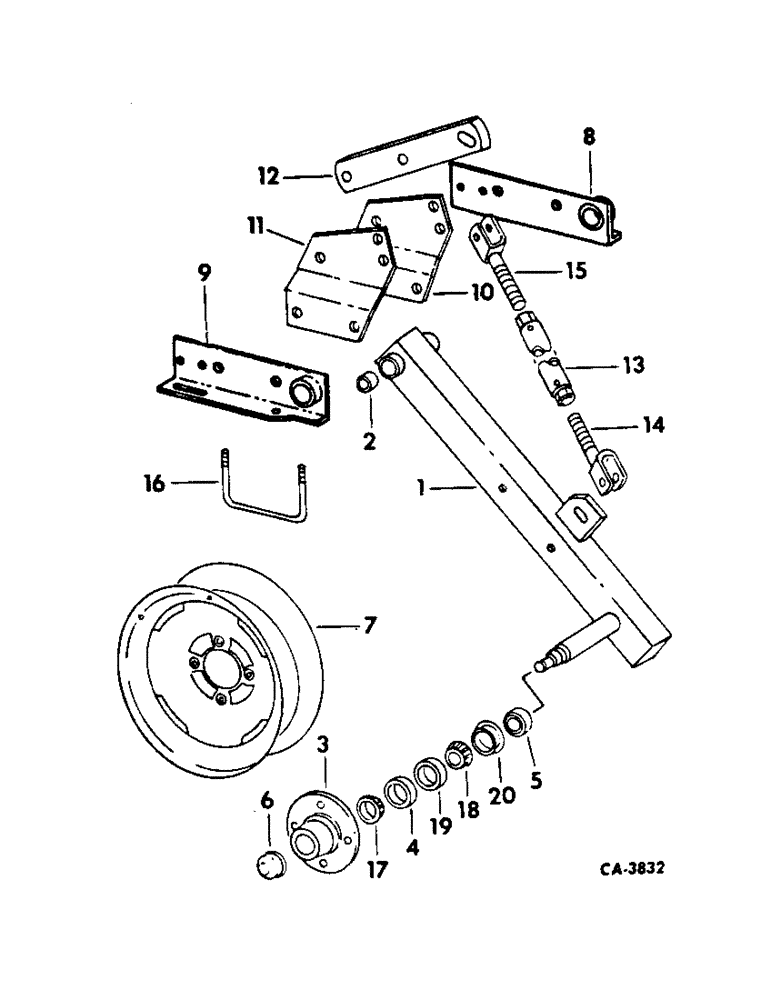

Запчасти Case IH 92 (D-15) - GAUGE WHEEL, 1 PAIR PER MACHINE

1

541784R1

TUBE

ASSY, wheel LH

1шт.

1

541785R1

TUBE

ASSY, wheel RH

1шт.

219-45

LUBE NIPPLE,65 Degree Elbow, 1/4" NPTF

FITTING, 1/4-65 deg drive lub

1шт.

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

1шт.

69422D

NUT, 3/4-16 slt-hex.

1шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

2

583346R1

BUSHING,25.45mm ID x 28.55mm OD x 25.4mm L

bronze

2шт.

2

480233R1

BUSHING

wheel pipe pivot

2шт.

3

472220R21

HUB

W/SET SCREW, wheel

2шт.

443804

SCREW, 1/4-28 x 1/4 c-z slt-ov-pt hdls set

2шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 NF std lub

2шт.

4

651814R1

BEARING CUP

BEARING, wheel hub outer cup

2шт.

5

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

wheel hub oil

2шт.

6

651194R1

CAP

wheel bearing hub

2шт.

7

463036R1

WHEEL (STEERING)

WHEEL, 14 in. x 5

2шт.

387841R91

VALVE

tr 413 w/core & cap

1шт.

7

455169R92

WHEEL

15 in. x 4-1/2 kb

2шт.

387897R91

VALVE STEM

VALVE, tr 415 w/core & cap

1шт.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

wheel hub

8шт.

8

541787R1

ANGLE

ASSY, gauge wheel LH

2шт.

9

541788R1

ANGLE

ASSY, gauge wheel RH

2шт.

10

541793R1

PLATE

gauge wheel LH

2шт.

11

541794R1

PLATE

gauge wheel RH

2шт.

480256R1

SPACER, gauge wheel clamp

2шт.

271783

CAGE,Hex, 3/4" - 10 x 5", Gr 5

SCREW, 3/4-10 x 5 znd hex-hd cap

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

6шт.

280954

NUT,3/4"-10, G5

6шт.

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

4шт.

12

541795R1

ANCHOR

gauge wheel

2шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

280954

NUT,3/4"-10, G5

4шт.

13

480249R1

TRUSS ROD

TURNBUCKLE

2шт.

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 str drive lub

4шт.

14

480250R91

ROD

ASSY, LH

2шт.

480255R1

HEADED PIN,1" x 2 3/16"

PIN, 1 x 2-3/16 std-hd

4шт.

21636R1

PIN, 1/4 x 1-1/2 c-z self-opening cotter

4шт.

15

480251R91

ROD

ASSY, RH

2шт.

426899

NUT,Jam, 1"-8, G5

1/8 c-z hex. jam

2шт.

480255R1

HEADED PIN,1" x 2 3/16"

PIN, 1 x 2-3/4

1шт.

16

541654R1

BOLT,U, 3/4" - 10 x 168.90mm

U-BOLT, For 4 and 5 row

4шт.

541791R1

CLIP, gauge wheel

4шт.

280954

NUT,3/4"-10, G5

8шт.

16

541655R1

BOLT,U, 3/4" - 10 x 192.80mm

U-BOLT, For 6, 7, 8 and 9 row

4шт.

23245R1

WASHER

25/32 x 1-3/4 x 7 ga c-z

8шт.

280954

NUT,3/4"-10, G5

8шт.

17

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING ASSY, outer cone

2шт.

17

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

18

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, inner cone

2шт.

19

651817R1

BEARING CUP

BEARING, wheel hub inner cup

2шт.

20

472222R1

SLEEVE

oil seal wear

2шт.
