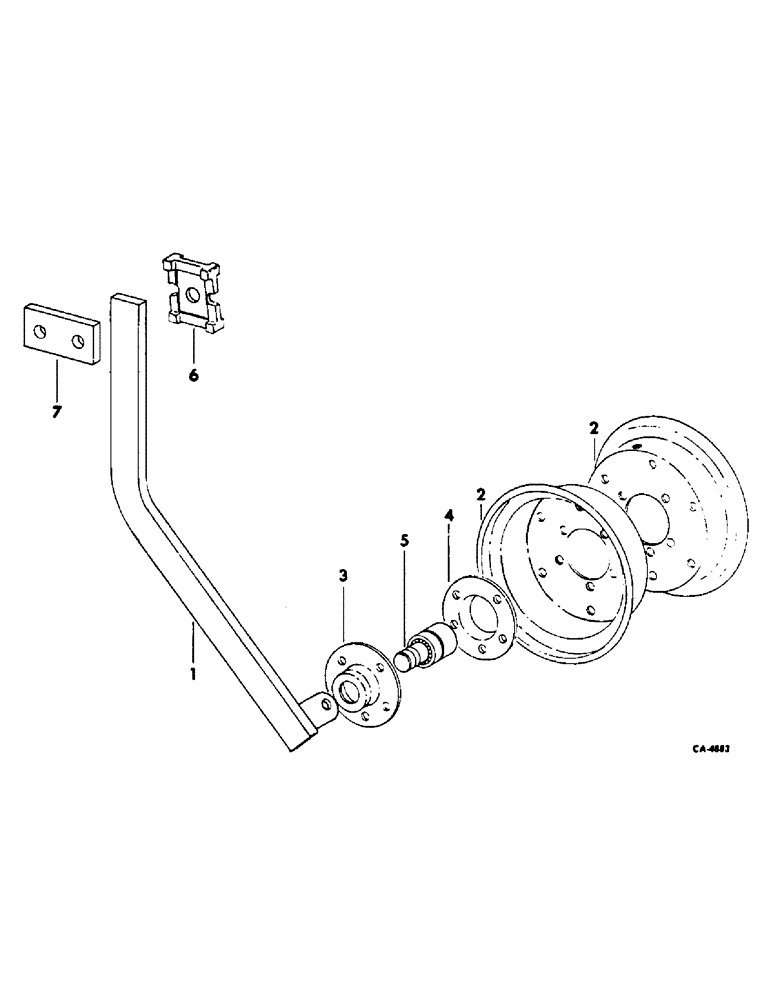

Запчасти Case IH 92 (D-14) - GAUGE WHEEL, 1 PER ROW

1

61680C1

STANDARD ASSY, gauge wheel LH

1шт.

1

61681C1

STANDARD ASSY, gauge wheel RH

1шт.

22226R1

SET SCREW,Hex Soc, 3/8"-16 x 7/16"

SCREW, 3/8-16 x 7/16 znd hex-soc-hd ov-pt set

1шт.

2

465233R1

WHEEL

DISK LESS VALVE HOLE, wheel, For 4.00 x 8 tire

1шт.

2

465234R1

WHEEL

DISK W/VALVE HOLE, wheel, For 4.00 x 8 tire

1шт.

2

128666C1

WHEEL ASSY, disk, For 16 x 6.50-8 tire

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 znd hex-hd cap

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

3

465235R1

RETAINER

HOUSING, bearing open half

1шт.

4

465236R1

COVER

HOUSING, bearing closed half

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

5шт.

138489

LOCK WASHER,Ext Tooth, 3/8"

WASHER, LOCK, Ext Tooth, 3/8"

5шт.

120377

NUT,3/8" - 16, Gr 5

5шт.

5

ST686

BALL BEARING,47.63mm OD x 88.09mm L

BEARING, ball

1шт.

6

134052C1

BLOCK, clamp

1шт.

7

61683C1

CLIP

2шт.

271732

SWASH PLATE,Hex, 5/8" - 11 x 4 1/4", Gr 5

5/8 x 4-1/4 type 5

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 znd hex.

2шт.
