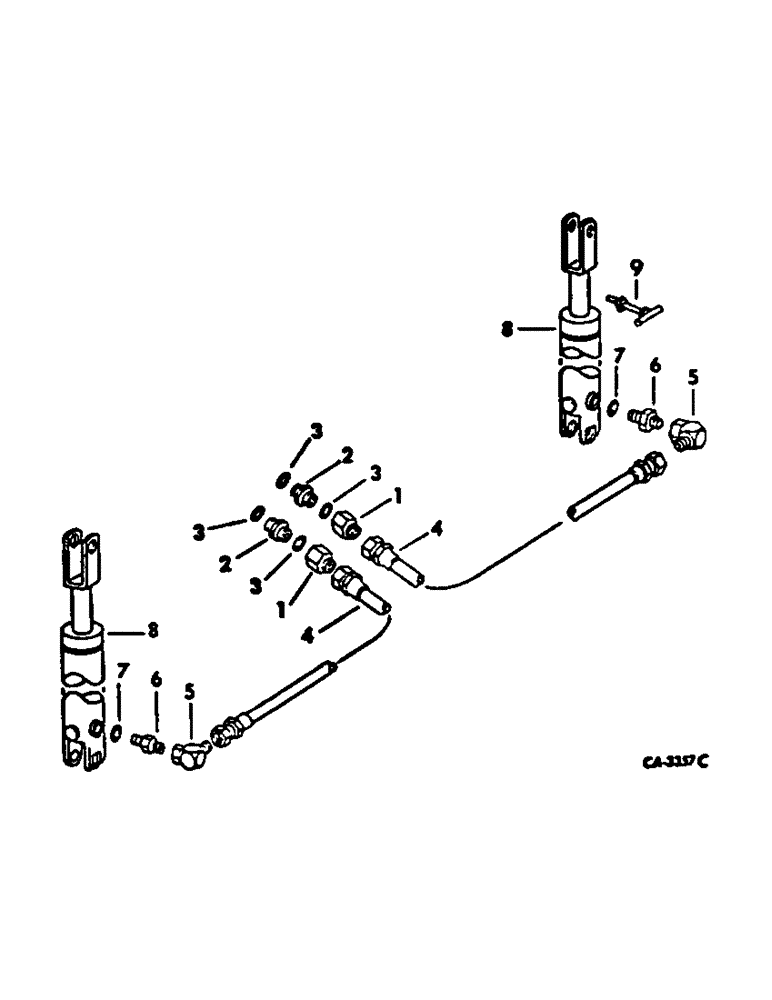

Запчасти Case IH 92 (D-13) - HYDRAULIC MARKER COMPLETING PACKAGE

1

493960R91

VALVE

ASSY, drop retarding

2шт.

546844R1

WASHER

valve

2шт.

103575

PIN,#1 x 1 1/4", Tapered

1 x 1-1/4 taper

2шт.

2

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 7/8-14 c-z 37 deg hyd flared short swivel tube

2шт.

3

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

4шт.

4

541631R1

HOSE ASSY.

HOSE, L-140 in., For 4 and 5 row

1шт.

4

542007R1

HYDRAULIC HOSE,0.50" ID x 220.00", SAE 100R1

HOSE, L-220 in., For 9 row

1шт.

4

58140C1

HOSE ASSY.

HOSE, L-160 in., For 6 row

1шт.

4

58022C1

HOSE, L-195 in., For 8 row

1шт.

4

541630R1

HOSE, L-170 in., For 7 row

1шт.

5

9410282

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

7/8-14 c-z 37 deg hyd flared tube 90 deg.

2шт.

6

26210R1

HYD CONNECTOR,7/8"-14, 37 Degree x 9/16"-18, O-Ring

REDUCER, 5/8 x 3/8 37 deg flared tube, 6, 7, 8 and 9 row

2шт.

7

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, 6, 7, 8 and 9 row

2шт.

8

CYLINDER ASSY, 2 x 8 in. single acting hyd, For components see hydraulic cylinder

1шт.

9

NOT USED IN THIS APPLICATION

1шт.

544787R91

COUPLING, BREAK AWAY

COUPLING ASSY, self-sealing male

2шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6

2шт.
