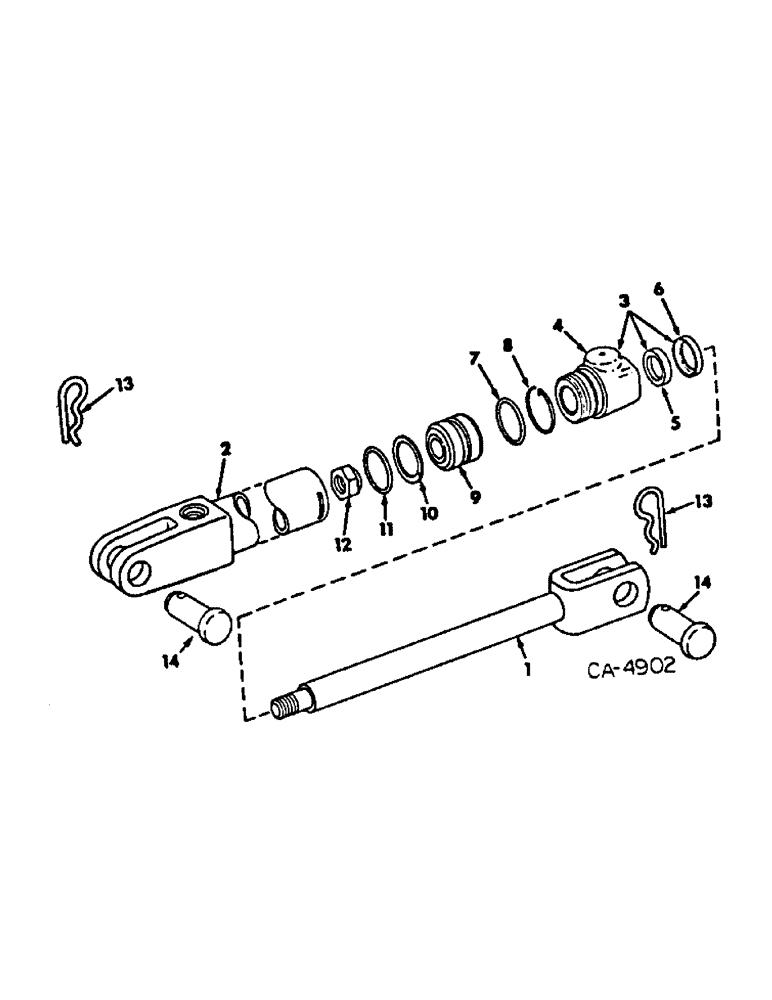

Запчасти Case IH 92 (D-09) - HYDRAULIC CYLINDER, 2 X 8 IN. SINGLE ACTION

381832R93

CYLINDER BLOCK

CYLINDER ASSY, hydraulic

1шт.

1

381842R91

ROD

ASSY, piston

1шт.

2

381820R91

TUBE ASSY, cylinder

1шт.

3

381802R11

HEAD ASSY, rod end

1шт.

4

HEAD, rod end, Not serviced separately, Order head assy, 381805R11

1шт.

5

354048R1

WASHER,1.06" ID x 1.5" OD x 0.25" Thk

SEAL, piston rod dust

1шт.

6

354049R1

RETAINER

piston rod dust seal

1шт.

7

384251R1

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

1-3/4 x 2 x 1/8

1шт.

8

461180R1

RETAINER

RING, retaining

1шт.

9

381848R1

PISTON

HEAD, piston

1шт.

10

381850R1

WASHER

piston head backup

1шт.

11

381565R1

O-RING,0.21" Thk x 1.6" ID, -326, Cl 6, 90 Duro

1-5/8 x 2 x 3/16

1шт.

12

385020R1

NUT

3/4-16 hex. lock

1шт.

13

520175R1

CLIP

PIN, 3/16 quick attachable

2шт.

14

580714R1

HEADED PIN,1" x 2 3/4"

PIN, 1 x 2-3/4 headed

2шт.

386686R91

GASKET KIT

PACKAGE, hydraulic cylinder service, Consists of

1шт.

381565R1

O-RING,0.21" Thk x 1.6" ID, -326, Cl 6, 90 Duro

1шт.

384251R1

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

1шт.

354049R1

RETAINER

1шт.

354048R1

WASHER,1.06" ID x 1.5" OD x 0.25" Thk

SEAL

1шт.

381850R1

WASHER

1шт.
