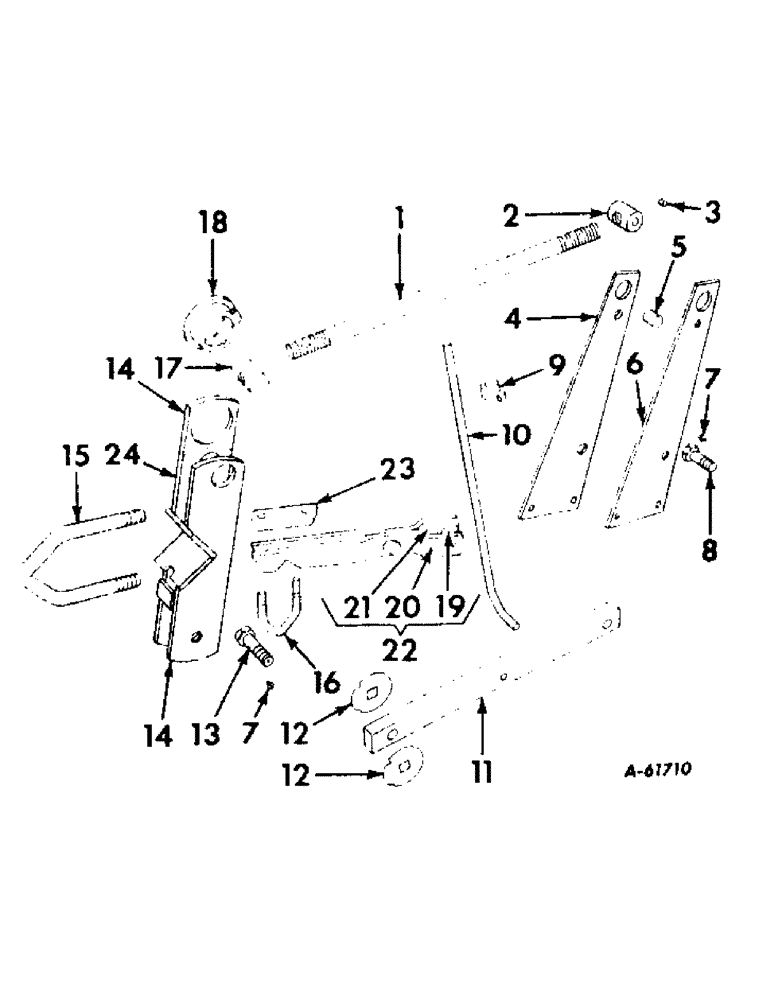

Запчасти Case IH 865 (AK-14) - THIRD, FOURTH, FIFTH, SIXTH, SEVENTH AND EIGTH GANG PARALLEL

1

522506R2

TURNBUCKLE

ROD, upper parallel, unit A

1шт.

1

523329R1

ROD, upper parallel, unit B

1шт.

2

522510R1

BAR

SWIVEL, upper parallel link rear, RH thread

1шт.

19289R1

BOLT, 1/2 x 3/4 in. cd-pltd mach

1шт.

3

522591R1

PLUG

CUSHION, upper parallel link locking bushing fibre

1шт.

4

522520R1

PLATE, tool bar outer attaching, tapped, unit A

1шт.

4

523377R1

PLATE, tool bar outer attaching, tapped, unit B

1шт.

5

522537R1

SPACER

tool bar attaching plate

1шт.

6

522521R1

PLATE, tool bar outer attaching, not tapped, unit A

1шт.

6

523376R1

PLATE, tool bar outer attaching, not tapped, unit B

1шт.

523060R1

BOLT, 1/2 x 2-1/4 in. heat-treated crg

1шт.

18810R1

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 2

1/2 x 2-1/4 in. C-Z heat-treated crg

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

7

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4 in. straight lubrication, Lower parallel link pivot bolt

1шт.

8

522544R2

BOLT

lower parallel link rear pivot

1шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4 in. C-Z jam

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

9

516595R11

COLLAR,16.67mm ID x 28.5mm OD x 19mm L

COLLAR W/SET SCREW, lift rod

1шт.

85-15010

SET SCREW,Sq Hd, 1/2"-13 x 5/8"

SCREW, 1/2 x 5/8 in. sq-hd cup-pt set

1шт.

10

522503R1

ROD, lift

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

11

522523R1

LINK, lower parallel outer, unit A

1шт.

11

523374R1

LINK, lower parallel outer, unit B

1шт.

12

522532R1

RETAINER

WASHER, lower parallel link bearing

1шт.

13

522543R2

BOLT,Hex, 3/4" - 10 x 2 3/4"

lower parallel link front pivot

1шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4 in. C-Z jam

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

14

BRACKET, right head, also rockshaft support, unit D, discontinued for service

1шт.

14

BRACKET, left head, also rockshaft support, unit D, discontinued for service

1шт.

15

522498R1

BOLT,U, 3/4" - 10 x 6 5/16"

U-BOLT, head bracket

1шт.

280954

NUT,3/4"-10, G5

2шт.

467750R1

WASHER

25/32 x 1-1/2 in. x 11 ga C-Z

1шт.

16

523378R1

BOLT,U, 1/2" - 13 x 3 1/4"

U-BOLT, lift arm

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

17

522509R1

BAR

SWIVEL, upper parallel link front, LH thread

1шт.

18

522496R1

BUSHING

BEARING, rockshaft outer, unit D (60)

64шт.

18

523328R1

BEARING ASSY,2.8125" OD x 1"

rockshaft outer, unit D

64шт.

19

468022R1

TRUNNION

lift arm

1шт.

20

ARM, left long lifr, order 525666R91

1шт.

21

ARM, right long lift, order 525666R91

1шт.

NLS

NO LONGER SERVICED

3/8 x 1 in. rd-hd

1шт.

22

525666R91

ARM ASSEMBLY, long lift

1шт.

23

CLIP, lift arm, discontinued for service

1шт.

24

BRACKET, gang head, unit C, discontinued for service

1шт.
