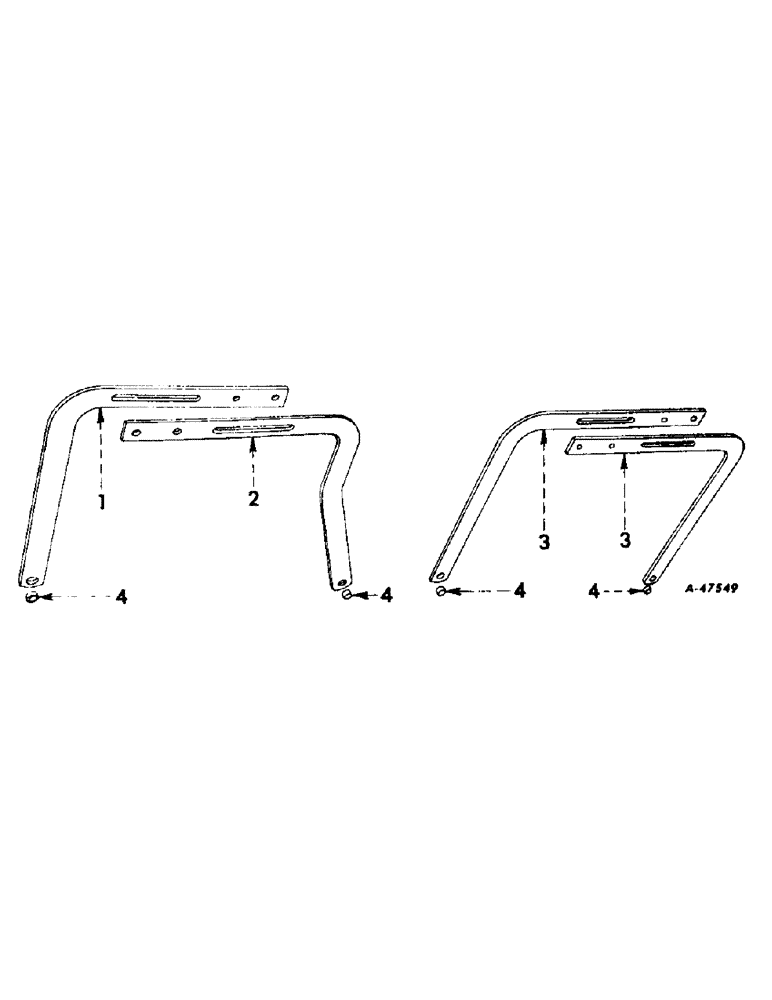

Запчасти Case IH 865 (AK-12) - JOCKEY ARCH

1

523935R1

ARCH, outer

1шт.

2

523934R1

ARCH, inner

1шт.

3

523936R1

ARCH

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8 x 1 in., crg

1шт.

522425R1

BOLT, 1/2 x 1-3/4 in. thd-to-hd mach

1шт.

12026R1

WASHER

17/32 x 1-1/4 x 16 ga

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

114505

JAM NUT,Jam, 1/2"-13, G5

1шт.

4

523937R1

BUSHING

arch, order 455410R1

1шт.

4

455410R1

SPACER

BUSHING, arch

1шт.
