Запчасти Case IH 865 (AK-08) - CARRYING WHEELS

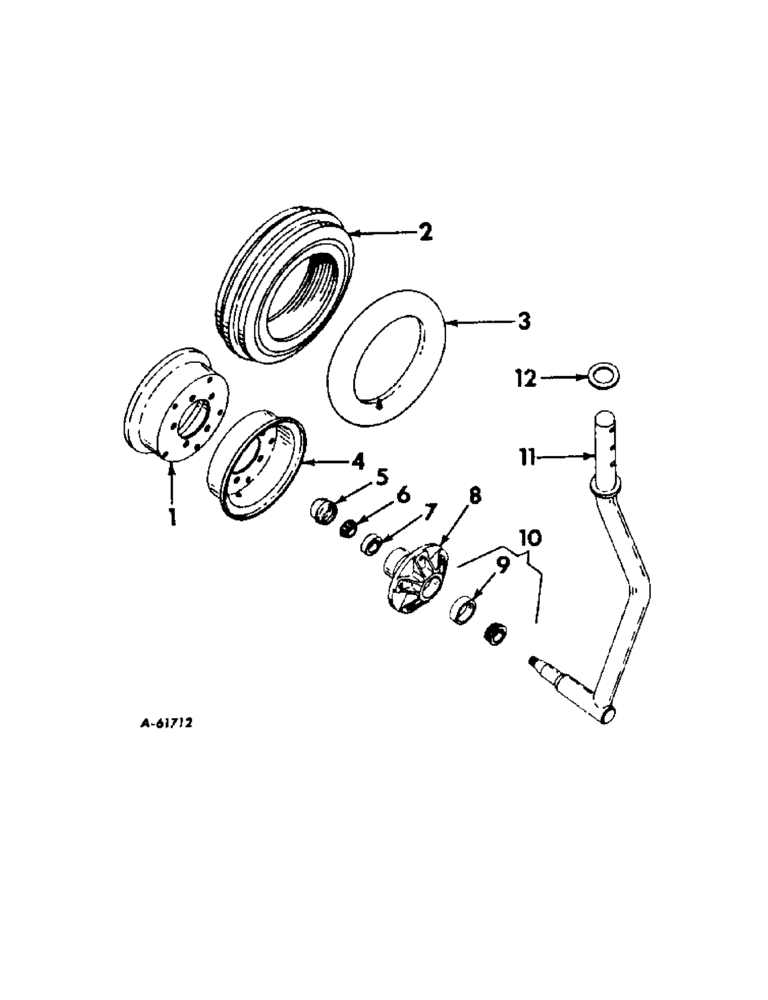

Схема запчастей Case IH 865 - (AK-08) - CARRYING WHEELS
6
2
4
10
5
9
7
12
11
3
8
1

Артикул

Название

Примечание

Количество

1

621745R1

WHEEL, disk half, w/valve hole

1шт.

2

TIRE, ribbed implement pneumatic, 6.00 x 9

1шт.

3

TUBE, pneumatic, 6.00 x 9

1шт.

4

621746R1

WHEEL, disk half, w/o valve hole

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 in. C-Z pltd mach

5шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

5

651194R1

CAP

wheel

1шт.

6

651814R1

BEARING CUP

CUP, outer bearing

1шт.

7

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

CONE ASSEMBLY, outer bearing

1шт.

7

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

8

653651R91

HUB W/BOLT AND NUTS, wheels

1шт.

660102R1

BOLT (SPREADER),Round, 1/2" - 20 x 1 1/2"

BOLT, 1/2UNF x 1-1/2 in. special

5шт.

453770R1

WHEEL NUT

1/2UNF special

5шт.

9

651817R1

BEARING CUP

CUP, inner bearing, order 602957R91

1шт.

10

602957R91

BEARING ASSY,31.75mm ID x 59.13mm OD x 16mm W

ASSEMBLY, inner

1шт.

11

462969R11

AXLE ASSEMBLY, carrying wheel

1шт.

102649

SLOTTED NUT,5/8"-18, G5

NUT, 5/8"-18, G5

1шт.

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

1шт.

108660

PIN,5/16" x 3"

Split (Cotter), 5/16" x 3"

1шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

21/32 x 1-5/16 in. 095 ga

1шт.

12

462997R1

WASHER

wheel axle wear

1шт.

Выбрано товаров: 21
