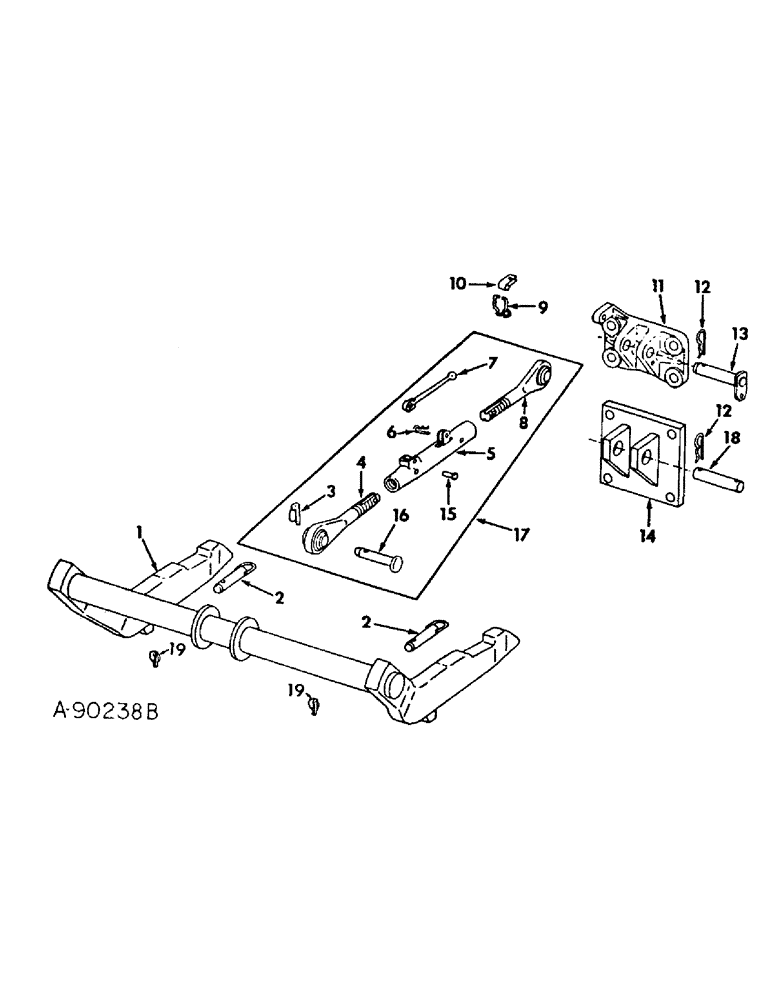

Запчасти Case IH 863 (AJ-04) - TWO-POINT FAST HITCH

1

483567R91

BEAM

ASSY, coupling

1шт.

2

517853R21

PIN

ASSY, ball

2шт.

3

517758R91

SPLIT PIN/SAFETY PIN

PIN, implement pin retaining

1шт.

4

393459R12

STRUT

SCREW ASSY, LH thread

1шт.

22061R1

PIN, 1/4 x 1-1/8 hvy zn cld spr

1шт.

5

400908R1

TURNBUCKLE

upper link, replaces 384850R11 by also ordering pin, 24709R1 and pin, 520175R1

1шт.

6

380570R1

CLIP

turnbuckle spring, order clip 395108R1 and handle 392204R1

1шт.

6

395108R1

CLIP

turnbuckle spring

1шт.

7

375901R1

HANDLE, upper link turnbuckle, order handle 392204R1 and clip 395108R1

1шт.

7

392204R1

HANDLE

upper link turnbuckle

1шт.

8

393460R12

SCREW

ASSY, RH thread

1шт.

22061R1

PIN, 1/4 x 1-1/8 hvy zn cld spr

1шт.

9

378403R1

ELECTRICAL WIRE

BRACKET, upper link storage

1шт.

10

378404R1

FASTENER

CLIP

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 x 7/8 type 5

1шт.

11

389372R41

BRACKET

ASSY, upper link, for 656 tractor

1шт.

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8 x 2 in. C-Z pltd cap

4шт.

12

520175R1

CLIP

PIN, quick-attachable cotter

1шт.

13

382210R11

PIN

upper link, for 656 tractor

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

14

473168R91

BRACKET

ASSY, for 706 and 806 tractors

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8 x 2 in. C-Z pltd mach

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

15

24709R1

HEADED PIN,3/8" x 1 3/4"

PIN, HEADED, 3/8" x 1 3/4"

1шт.

12235R1

1/8" x 5/8" 1/8" x 5/8"

1шт.

16

374132R1

PIN

upper link implement, replaces 380563R91

1шт.

17

400907R92

LINK

ASSY, upper, replaces 384851R92

1шт.

18

473171R1

PIN

upper link, all but 656 tractors

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

19

373025R91

PIN ASSY.

PIN ASSY, quick attachable snap

2шт.
