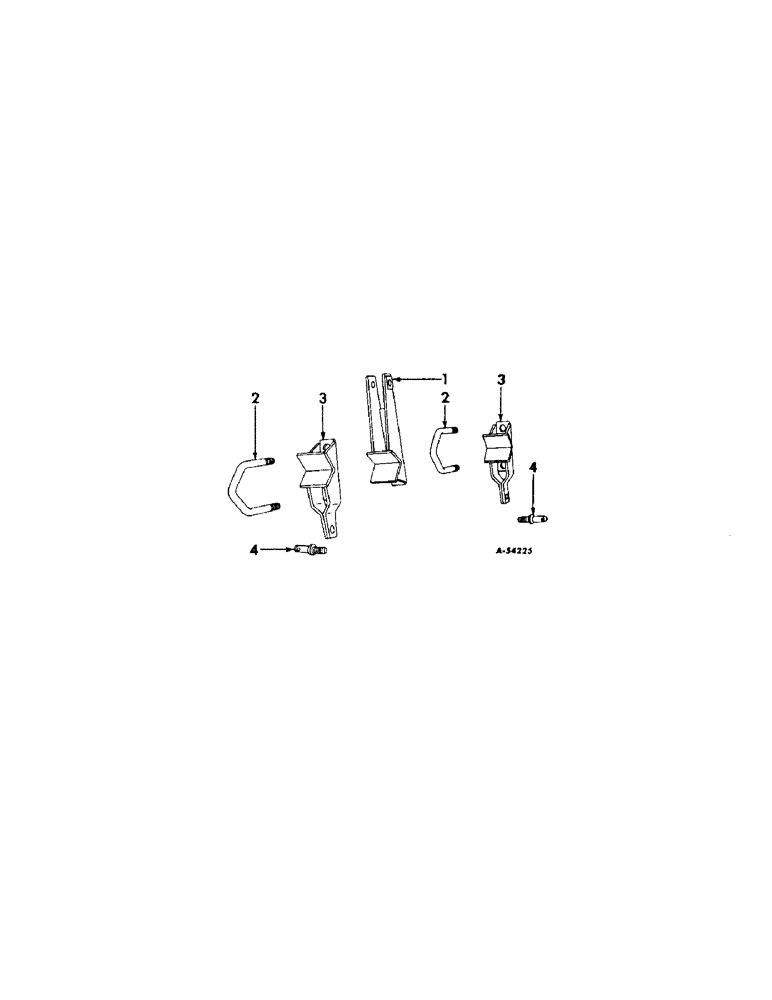

Запчасти Case IH 863 (AJ-02[A]) - THREE-POINT HITCH CATEGORY I

1

525635R91

BRACKET, upper pivot

1шт.

280954

NUT,3/4"-10, G5

2шт.

519417R1

HEADED PIN,3/4" x 3 11/16"

PIN, 3/4 x 3-11/16 in. heat-treated headed

1шт.

520175R1

CLIP

PIN, quick-attachable cotter

1шт.

273320

PANEL,Hex, 3/4"-10 x 10", G5

BOLT, 3/4 x 10 pln type 5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

2

525626R1

BOLT,U, 7/8" - 9 x 8 3/8"

U-BOLT, lower pivot bracket

1шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

2шт.

131047

WASHER,7/8"

7/8"

2шт.

3

525633R91

BRACKET, lower pivot

1шт.

4

525896R1

STUD

lower

1шт.

426767

NUT,7/8"-14, G5

7/8-NF type 5

1шт.

NLS

NO LONGER SERVICED

7/8"

1шт.
