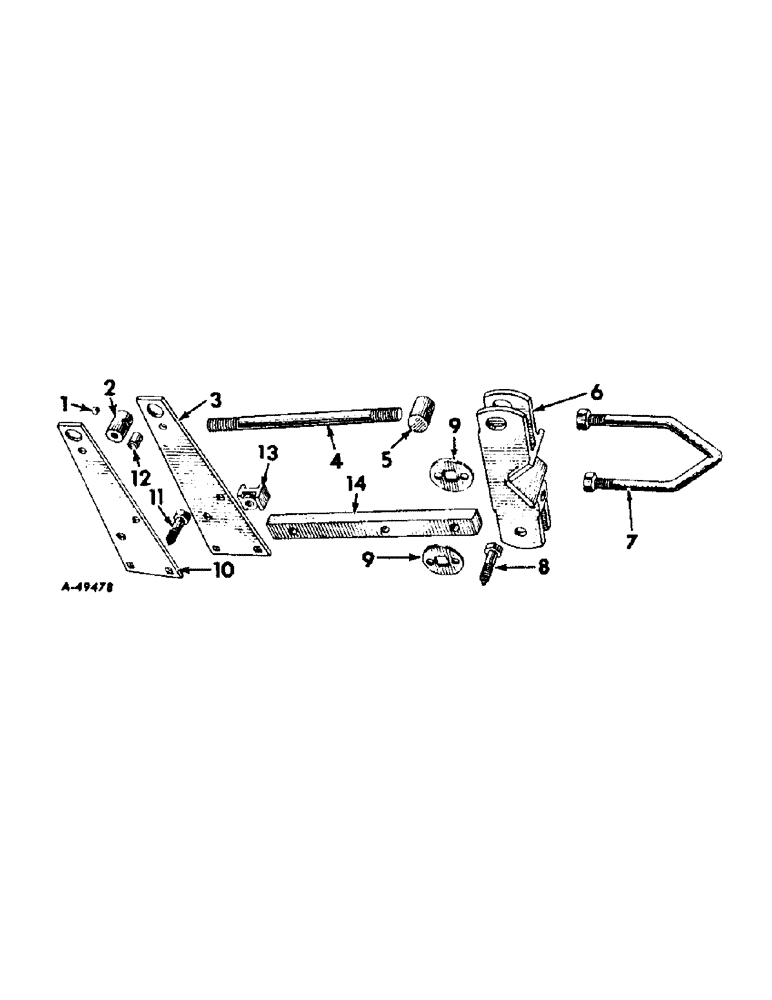

Запчасти Case IH 863 (AJ-10) - PARALLEL LINKAGE
№
Артикул
Название
Примечание
Количество
1
522591R1
PLUG
locking bolt
1шт.
2
522510R1
BAR
SWIVEL, upper parallel link, RH thd
1шт.
19289R1
BOLT, 1/2 x 3/4 in. cd-pltd mach
1шт.
3
524050R1
PLATE, tool bar attaching, not tapped
1шт.
523060R1
BOLT, 1/2 x 2-1/4 in. heat-treated crg
1шт.
18810R1
BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 2
1/2 x 2-1/4 in. C-Z mach
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
2шт.
120384
WASHER,1/2"
LOCK, 1/2"
2шт.
4
523448R1
ROD
upper parallel
1шт.
5
522509R1
BAR
SWIVEL, upper parallel link, LH thd
1шт.
6
BRACKET, head, for 3-1/4 in. sq tool bar, discontinued for service
1шт.
6
BRACKET, head, for 2-1/2 in. sq tool bar, discontinued for service
1шт.
7
524047R1
BOLT
U-BOLT, gang attaching, for 3-1/4 in. sq tool bar
1шт.
7
522498R1
BOLT,U, 3/4" - 10 x 6 5/16"
U-BOLT, gang attaching, for 2-1/2 in. sq tool bar
1шт.
467750R1
WASHER
25/32 x 1-1/2 in. x 11 ga C-Z
1шт.
8
522543R2
BOLT,Hex, 3/4" - 10 x 2 3/4"
3/4 x 2-3/4 in. mach lower parallel pivot front, 1-1/8 in. thd, dld for fitting
1шт.
426897
JAM NUT,Jam, 3/4"-10, G5
3/4 in. C-Z jam
1шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
1шт.
9
522532R1
RETAINER
WASHER, lower parallel link bearing
1шт.
10
524049R1
PLATE, tool bar attaching, tapped
1шт.
11
522544R2
BOLT
3/4 x 2-1/2 in. mach lower parallel link pivot rear, 1-1/16 in. thd, dld for fitting
1шт.
426897
JAM NUT,Jam, 3/4"-10, G5
3/4 in. C-Z jam
1шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
1шт.
12
522537R1
SPACER
tool bar attaching plate
1шт.
13
524048R1
BLOCK, gang stop
1шт.
13068R1
PIN,3/16" x 1"
Split (Cotter), 3/16" x 1"
1шт.
624133R1
PIN, 5/8 x 1-15/16 in. dld-std-hd 5/8" x 1 15/16"
1шт.
14
523456R1
LINK, lower parallel
1шт.
86636814
LUBE NIPPLE,1/4"-28 x .52" lg
FITTING, 1/4 in. straight lubrication, in Lower parallel link pivot bolt
1шт.
