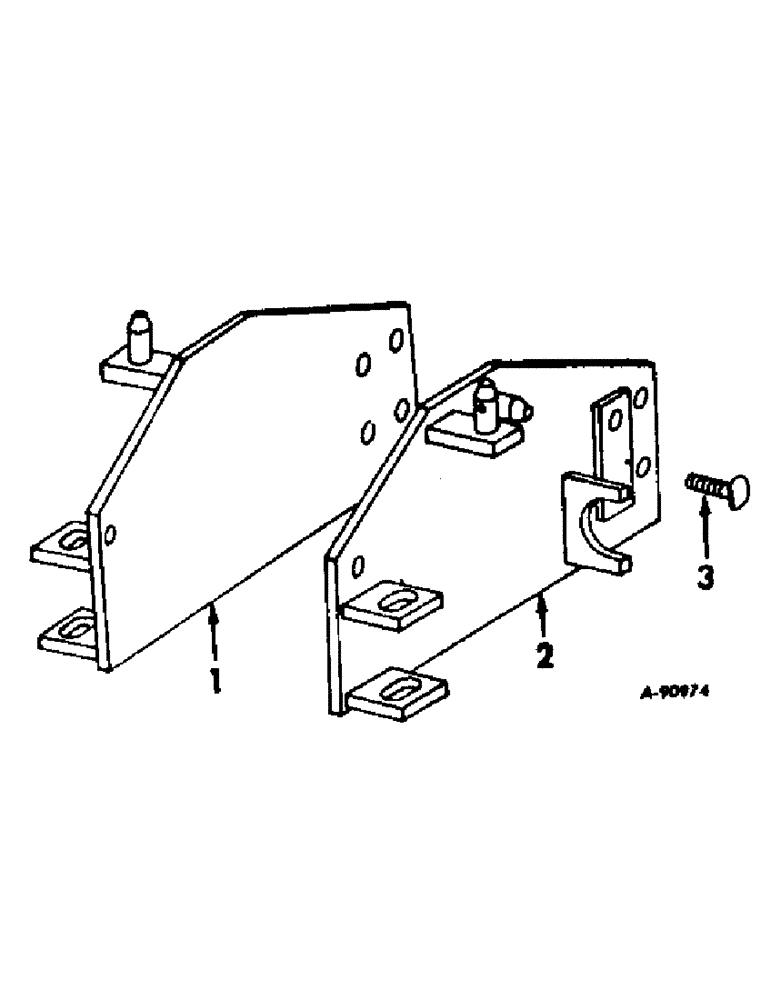

Запчасти Case IH 85 (AN-09) - ADAPTER PLATES

1

490299R1

PLATE ASSY, adapter LH, for F-656, 706, 756, 806, 826, 856, 1026, 1256 and 1456 tractors

1шт.

20199R1

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

SCREW, 5/8-11 x 2-1/2 znd hex-hd cap, used only on Farmall 706 & 756 diesel tractors

1шт.

18719R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 2

BOLT, 5/8-11 x 1-3/4 C-Z crg, no used on Farmall 706 & 756 diesel tractors

1шт.

1

544247R1

PLATE

ASSY, attaching LH, for F-766, 966, 1066 and 1466 tractors

1шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 1-3/4 znd hex-hd cap

3шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

3шт.

517843R1

COTTER PIN

PIN, quick attachable cot.

1шт.

2

490300R1

PLATE ASSY, adapter RH, for F-656, 706, 756, 806, 826, 856, 1026, 1256 and 1456 tractors

1шт.

20199R1

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

SCREW, 5/8-11 x 2-1/2 znd hex-hd cap, used only on Farmall 706 & 756 diesel tractors

1шт.

18719R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 2

BOLT, 5/8-11 x 1-3/4 C-Z crg, not used on Farmall 706 & 756 diesel tractors

2шт.

2

544248R1

PLATE ASSY, attaching RH, for F-766, 966, 1066 and 1466 tractors

1шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 1-3/4 znd hex-hd cap

3шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

3шт.

517843R1

COTTER PIN

PIN, quick attachable cot.

1шт.

3

491332R1

BOLT, frame plate

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

6шт.

517843R1

COTTER PIN

PIN, quick attachable cot

2шт.
