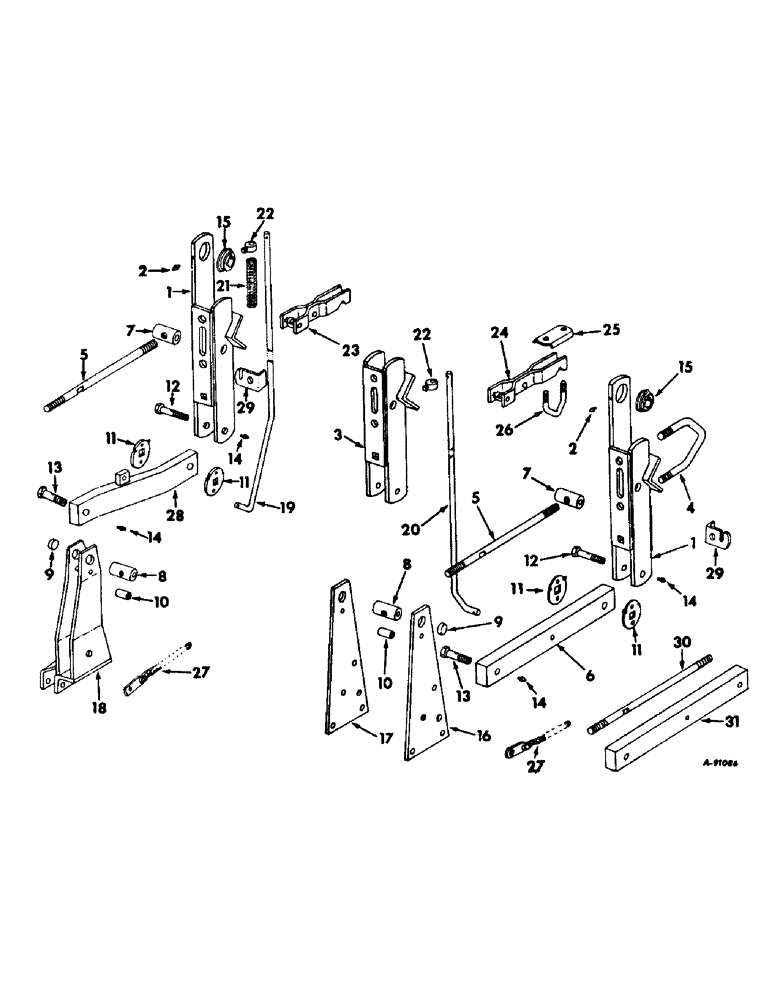

Запчасти Case IH 85 (AN-07) - PARALLEL LINKAGES

Service parts for six-row cultivator with 36, 38 and 40 in. rows, consist of all unmarked parts and those marked unit A

1шт.

Service parts for eight-row cultivator with 28 and 30 in. rows, consist of all unmarked parts and those marked unit B

1шт.

Service parts for eight-row cultivator with 36, 38 and 40 in. rows, consist of all unmarked parts and those marked unit C

1шт.

Service parts for twelve-row cultivator with 28 and 30 in. rows, consist of all unmarked parts and those marked unit D

1шт.

1

489693R1

BRACKET

ASSY, bearing head, 6 for unit A & B, 8 for unit C & D

1шт.

2

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 drive type lub, 6 for unit A & B, 8 for unit C & D

1шт.

3

489699R1

BRACKET

ASSY, hd, not for bearing, 6 for unit A & D, 4 for unit B, 8 for unit C

1шт.

4

524046R3

BOLT,U, 7/8" - 9 x 7 3/4"

U-BOLT, hd bracket, 12 for unit A, 10 for unit B, 16 for unit C, 14 for unit D

1шт.

425-1014

NUT,7/8"-9, G5

NUT, , 2 used per U-bolt 7/8"-9, G5

1шт.

5

489701R1

TURNBUCKLE

ROD, upper link, 19 in. long, 8 for unit A, 6 for unit B, 12 for unit C, 10 for unit D

1шт.

6

489702R1

BAR, lower link, 21-1/2 in. long, 6 for unit A, 4 for unit B, 10 for unit C, 8 for unit D

1шт.

7

483285R1

PIVOT ASSY.

SWIVEL, front upper link LH thd, 12 for unit A, 10 for unit B, 16 for unit C, 14 for unit D

1шт.

8

483286R1

PIVOT ASSY.

SWIVEL, rear upper link RH thd, 11 for unit A, 9 for unit B, 15 for unit C and 13 for unit D

1шт.

8

522510R1

BAR

SWIVEL

1шт.

21226R1

WASHER

1-9/32 x 2 x 11 ga C-Z

2шт.

9

522591R1

PLUG

upper link lock, 12 for unit A, 10 for unit B, 16 for unit C, 14 for unit D

1шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 C-Z hex-hd mach, one used per plug

1шт.

10

483284R1

SPACER

12 for unit A, 10 for unit B, 16 for unit C, 14 for unit D

1шт.

120384

WASHER,1/2"

LOCK, , 1 used per spacer 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 1 used per spacer 1/2"-13, G5

1шт.

18811R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 2

1/2 x 2-3/4 C-Z hex-hd mach, one used per spacer

1шт.

11

486998R1

WASHER,20.63mm ID x 76.2mm OD x 1.52mm Thk

lower link and hd bracket wear, 24 for unit A, 20 for unit B, 32 for unit C, 28 for unit D

1шт.

12

487061R2

BOLT,Hex, 3/4" - 10 x 3"

lower link front pivot, 12 for unit A, 10 for unit B, 16 for unit C, 14 for unit D

1шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4 C-Z hex. jam, one used per bolt

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4", 1 used per bolt

1шт.

13

522543R2

BOLT,Hex, 3/4" - 10 x 2 3/4"

lower link rear, 12 for unit A, 10 for unit B, 16 for unit C, 14 for unit D

1шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4 C-Z hex. jam, one used per bolt

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4", 1 used per bolt

1шт.

14

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4 str lub, in pivot bolts, 24 for unit A, 20 for unit B, 32 for unit C, 28 for unit D

1шт.

15

523328R1

BEARING ASSY,2.8125" OD x 1"

rockshaft, 6 for unit A & B, 8 for unit C & D

1шт.

16

483282R3

PLATE, side, tapped, 10 for unit A, 8 for unit B, 14 for unit C, 12 for unit D

6шт.

17

483283R3

PLATE, side, not tapped, 10 for unit A, 8 for unit B, 14 for unit C, 12 for unit D

6шт.

19544R1

BOLT,Hex, 5/8"-11 x 3 1/4", G2

5/8 x 3-1/4 C-Z hex-hd mach

4шт.

18826R1

BOLT,Hex, 5/8"-11 x 3", G2

5/8 x 3 C-Z hex-hd mach, 20 for unit A, 16 for unit B, 28 for unit C, 24 for unit D

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 24 for unit A, 20 for unit B, 32 for unit C, 28 for unit D 5/8"

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-13 C-Z hex., 24 for unit A, 20 for unit B, 32 for unit C, 28 for unit D

1шт.

18

490281R1

PLATE ASSY, tool bar attaching LH

1шт.

18

490282R1

PLATE ASSY, tool bar attaching RH

1шт.

19

490294R1

ROD

pressure, inner

2шт.

13068R1

PIN,3/16" x 1"

Split (Cotter), , self-opening 3/16" x 1"

4шт.

20

489711R1

ROD

pressure outer, 10 for unit A, 8 for unit B, 14 for unit C, 12 for unit D

1шт.

13068R1

PIN,3/16" x 1"

Split (Cotter), , self-opening, 2 used per rod 489711R1 3/16" x 1"

1шт.

21

PO3A

SPRING

cushion

2шт.

22

516595R11

COLLAR,16.67mm ID x 28.5mm OD x 19mm L

COLLAR W/SET SCREW, lift rod, 12 for unit A, 10 for unit B, 16 for unit C, 14 for unit D

1шт.

21803R1

SET SCREW,1/2" - 13 x 5/8", Steel

SCREW, 1/2-13 x 5/8 C-Z sq-hd cup pt set, one used per collar

1шт.

23

489738R91

ARM

ASSY, inner lift, 4 for unit A & C, 2 for unit B & D

1шт.

NLS

NO LONGER SERVICED

3/8 x 1 rd-hd, one used per lift arm

1шт.

24

467645R91

ARM ASSY.

ARM ASSY, long lift, 8 for unit A & B, 12 for unit C & D

1шт.

104113

RIVET,But Hd, 3/8" x 1"

3/8 x 1 rd-hd, one used per lift arm

1шт.

25

525687R1

CHANNEL

CLIP, lift arm, 12 for unit A, 10 for unit B, 16 for unit C, 14 for unit D

1шт.

26

523378R1

BOLT,U, 1/2" - 13 x 3 1/4"

U-BOLT, lift arm, 12 for unit A, 10 for unit B, 16 for unit C, 14 for unit D

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 2 used per u-bolt 1/2"-13, G5

1шт.

27

489712R91

CHAIN (AG)

CHAIN ASSY, depth

4шт.

104081

RIVET,But Hd, 1/4" x 1/2"

1/4 x 1-1/2 rd-hd

4шт.

28

490291R1

LINK ASSY, lower inside LH

1шт.

28

490292R1

LINK ASSY, lower inside RH

1шт.

29

490297R1

SUPPORT

CLIP, depth chain LH

2шт.

29

490298R1

SUPPORT

CLIP, depth chain RH

2шт.

30

490296R1

ROD

upper parallel, 21.8 in. long, for outer linkages

4шт.

31

490295R1

BAR, lower parallel link, 24-1/4 in. long, for outer linkages

4шт.
