Запчасти Case IH 85 (AN-04) - MAIN FRAME, 1969 AND SINCE

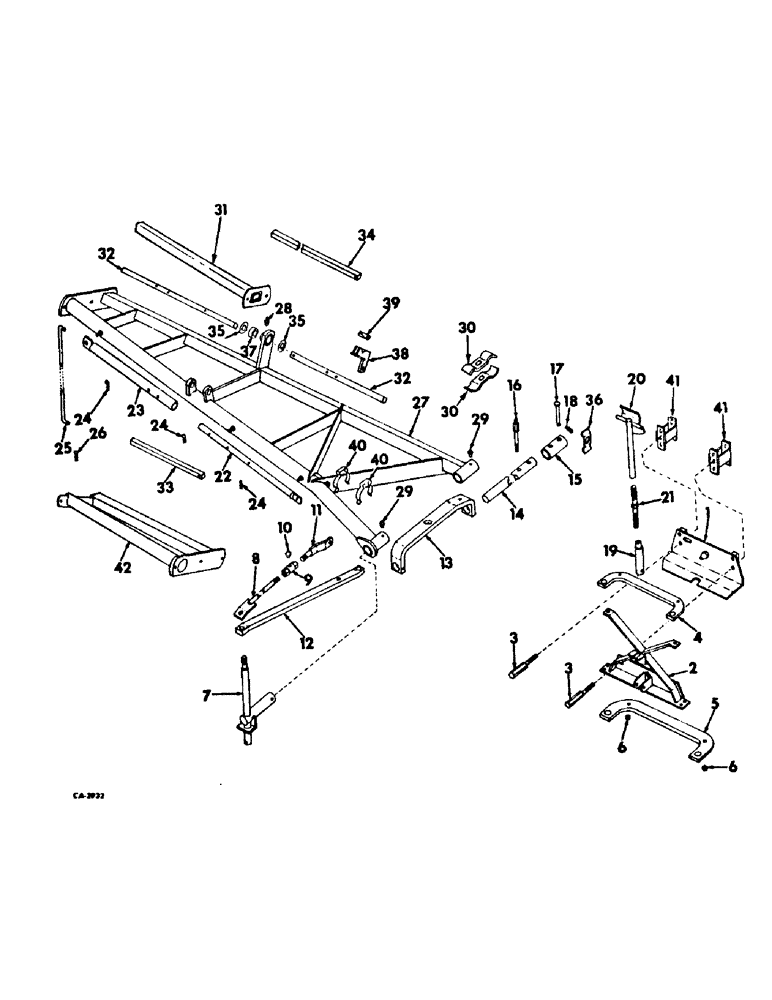

Схема запчастей Case IH 85 - (AN-04) - MAIN FRAME, 1969 AND SINCE
35
7
42
18
40
36
26
30
6
24
15
10
30
16
20
24
2
25
13
31
33
29
5
14
6
19
22
32
3
17
11
29
28
40
8
35
4
41
39
9
37
38
27
12
34
21
32
3
41
23
24

Артикул

Название

Примечание

Количество

1

490220R1

PLATE ASSY, pickup, Serial Range: 1968-1970

1шт.

1

541562R1

PLATE ASSY, pickup, 1970 and since

1шт.

1

544244R1

PLATE ASSY, pickup, for F766, 966, 1066 and 1466 tractors

1шт.

271777

KNOB,Hex, 3/4" - 10 x 3 1/2", Gr 5

SCREW, 3/4-10 x 3-1/2 C-Z hex-hd cap

2шт.

2

490223R1

FRAME ASSY, attaching

1шт.

3

490227R1

BOLT, attaching, Serial Range: 1968-1970

2шт.

3

541566R1

BOLT, attaching, 1970 and since

2шт.

3

462896R1

BOLT

attaching, for F766, 966, 1066 and 1466 tractors

2шт.

4

490228R1

BAR, spreader upper, Serial Range: 1968-1970

1шт.

4

541564R1

BAR, spreader upper, 1970 and since

1шт.

4

544245R1

BAR, spreader upper, for F766, 966, 1066 and 1466 tractors

1шт.

5

490229R1

BAR, spreader lower, Serial Range: 1968-1970

1шт.

5

541565R1

BAR, spreader lower, 1970 and since

1шт.

5

544246R1

BAR, spreader lower, for F766, 966, 1066 and 1466 tractors

1шт.

87403

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

2шт.

271778

SCREW,Hex, 3/4"-10 x 3 3/4", G5

3/4-10 x 3-3/4 znd hex-hd cap

2шт.

6

490322R1

SPACER, lower spreader bar

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

280954

NUT,3/4"-10, G5

4шт.

7

490230R3

PIN ASSY, frame pivot

2шт.

427649

SLOTTED NUT,1"-8, G5

NUT, 1-8 C-Z slt hex.

2шт.

517843R1

COTTER PIN

PIN, 3/16 quick attachable cot.

1шт.

22872R1

WASHER

1-17/32 x 2-1/2 x 11 ga C-Z

2шт.

137303

COTTER PIN,1/4" x 2 1/4"

PIN, SPLIT (COTTER), 1/4" x 2 1/4"

3шт.

8

490234R2

ROD

BRACE ASSY

2шт.

9

520360R1

TURNBUCKLE

2шт.

10

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 drive type lub, in turnbuckle

2шт.

425-1418

JAM NUT,Jam, 1 1/8"-7, G5

1-1/8 in. znd jam

2шт.

11

490237R1

BRACE

ASSY, lower attaching frame

2шт.

12

490323R1

BRACE, main frame

2шт.

13

490240R1

BRACE, main frame spreader, Serial Range: 1968-1972

2шт.

13

544243R1

BRACE, RH main frame spreader, 1972 and since

1шт.

13

548546R1

BRACE, LH main frame spreader, 1972 and since

1шт.

180193

BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 5

SCREW, 1/2-13 x 3-3/4 C-Z hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

SCREW, 5/8-11 x 3-1/4 C-z hex-hd cap

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

2шт.

14

490241R2

PIN, frame pivot

2шт.

15

490242R1

COLLAR, thrust

2шт.

16

490243R1

BOLT, brace attachment

2шт.

131047

WASHER,7/8"

7/8"

2шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

2шт.

17

486220R1

PIN

frame retaining

2шт.

18

517843R1

COTTER PIN

PIN, 3/16 quick attachable

2шт.

19

462912R1

STAND, upper end support

1шт.

650256R1

PIN,3/4" x 2 7/8"

3/4 x 2-7/8 std-hd

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

20

462906R11

SUPPORT

PLATE ASSY, stand support

1шт.

21

462941R11

TURNBUCKLE

ROD ASSY, adjusting

1шт.

516773R1

NUT

1 in. jam

1шт.

22

490244R1

ROD

PIPE, transport

2шт.

23

490245R1

PIPE, transport

2шт.

479883R1

PIN, transport pointed

2шт.

24

517843R1

COTTER PIN

PIN, 3/16 quick attachable, transport pipe

6шт.

25

490246R1

ROD, transport, 6 row and 8 row narrow

1шт.

25

493912R1

ROD, transport, 8 row wide and 12 row

1шт.

26

517843R1

COTTER PIN

PIN, 3/16 quick attachable, rod transport

1шт.

20328R1

COTTER PIN,3/16" x 1 1/2"

3/16" x 1 1/2"

1шт.

20703R1

WASHER

29/32 x 1-3/4 x 16 ga C-Z

1шт.

27

490247R1

FRAME ASSY, main LH, 6 row and 8 row narrow

1шт.

27

490248R1

FRAME ASSY, main RH, 6 row and 8 row narrow

1шт.

27

493891R1

FRAME ASSY, main LH, 8 row wide and 12 row

1шт.

27

493892R1

FRAME ASSY, main RH, 8 row wide and 12 row

1шт.

28

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 str drive type

2шт.

29

16964R91

FITTING

1/4-28 90 deg lub, 2 used 8 row wide and 12 row, 4 used 6 row and 8 row narrow

1шт.

29

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 str-lub, 8 row wide and 12 row

2шт.

30

515030R1

CLAMP

hyd hose, 1970 and since, 8 row wide and 12 row

4шт.

18422R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 2

BOLT, 3/8-16 x 1-3/4 znd crg

2шт.

126032

WING NUT,3/8"-16

NUT, wing

2шт.

31

490269R1

FRAME ASSY, 12-row narrow LH extension, Serial Range: 1968-1970

1шт.

31

490270R1

FRAME ASSY, 12-row narrow RH extension, Serial Range: 1968-1970

1шт.

31

493908R1

FRAME ASSY, 12 row narrow extension, 1970 and since

2шт.

87403

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

280954

NUT,3/4"-10, G5

4шт.

32

490274R1

ROCKSHAFT, 6 row and 8 row narrow

2шт.

33

493909R1

ROCKSHAFT

8 row wide

2шт.

34

493913R1

ROCKSHAFT, 12 row

2шт.

35

490277R1

WASHER, rockshaft

2шт.

137313

PIN,1/4" x 2 3/4"

Split (Cotter), 1/4" x 2 3/4"

4шт.

36

490379R1

CLAMP, hose

2шт.

18836R1

BOLT,Hex, 3/4"-10 x 1 1/2", G2

3/4-10 x 1-1/2 C-Z hex-hd mach

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

37

480195R1

BUSHING

BEARING, rockshaft

2шт.

38

490278R1

ARM

ASSY, rockshaft

2шт.

39

547750R1

CLAMP

CAP

2шт.

271733

BODY,Hex, 5/8" - 11 x 4 1/2", Gr 5

SCREW, 5/8-11 x 4-1/2 C-Z hex-hd cap

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

4шт.

40

487533R1

CLAMP, hydraulic hose, 6 row and 8 row narrow

4шт.

41

544250R1

BRACKET

ASSY, for F766, 966, 1066 and 1466 tractors

2шт.

271771

HOUSING,Hex, 3/4" - 10 x 2", Gr 5

SCREW, 3/4-10 x 2 znd hex-hd cap

6шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

6шт.

280954

NUT,3/4"-10, G5

2шт.

42

490265R1

FRAME ASSY, 8-row wide LH extension, Serial Range: 1968-1970

1шт.

42

490266R1

FRAME ASSY, 8-row wide RH extension, Serial Range: 1968-1970

1шт.

87403

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

280954

NUT,3/4"-10, G5

4шт.

271816

BOLT,Hex, 7/8" - 9 x 2 1/4", Gr 5

SCREW, 7/8-9 x 2-1/4 C-Z hex-hd cap

2шт.

NLS

NO LONGER SERVICED

7/8"

2шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

2шт.

Выбрано товаров: 104
