Запчасти Case IH 85 (AN-02) - MAIN FRAME, 1968 TO 1969

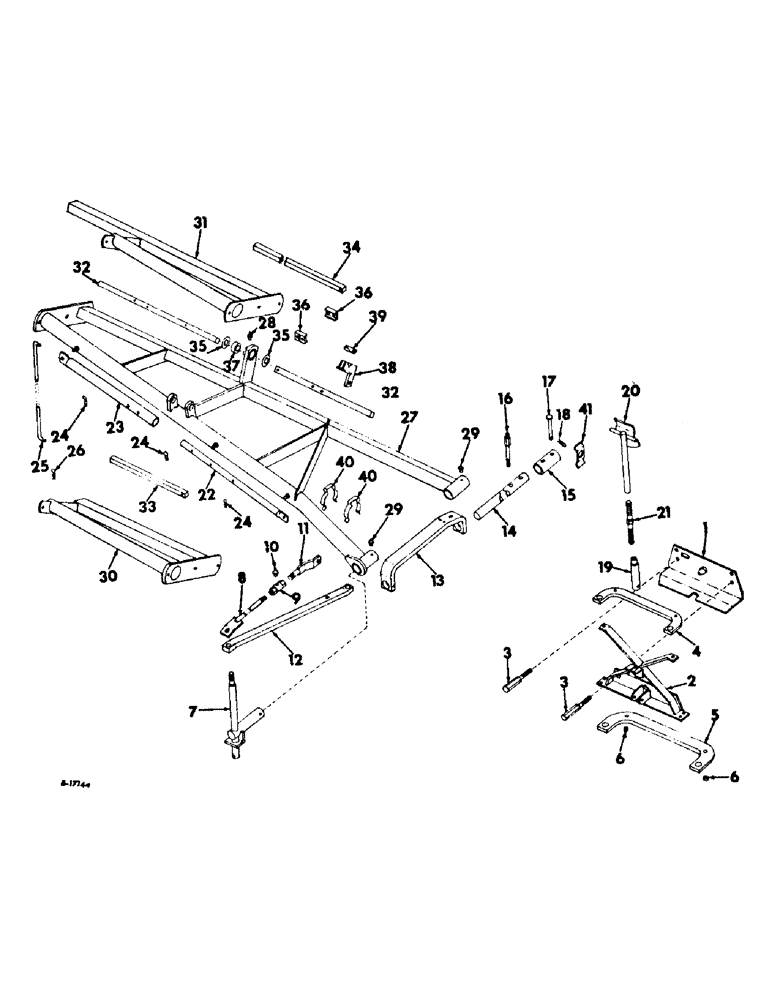

Схема запчастей Case IH 85 - (AN-02) - MAIN FRAME, 1968 TO 1969
32
28
18
35
24
26
39
16
2
27
13
40
36
30
3
41
21
22
34
40
1
8
10
24
6
20
33
24
4
11
29
35
6
7
31
36
5
15
3
14
12
17
32
38
19
37
23
25
29

Артикул

Название

Примечание

Количество

1

490220R1

PLATE ASSY, pickup

1шт.

271771

HOUSING,Hex, 3/4" - 10 x 2", Gr 5

SCREW, 3/4-10 x 2 C-Z hex-hd cap

2шт.

2

490223R1

FRAME ASSY, attaching

1шт.

3

490227R1

BOLT, attaching

2шт.

4

490228R1

BAR, spreader upper

1шт.

5

490229R1

BAR, spreader lower

1шт.

87403

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

2шт.

3224403R3

BOLT

SCREW, 3/4-10 x 3-3/4 C-Z hex-hd cap, Fine threads

2шт.

6

490322R1

SPACER, lower spreader bar

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

280954

NUT,3/4"-10, G5

4шт.

7

490230R3

PIN ASSY, frame pivot

2шт.

427649

SLOTTED NUT,1"-8, G5

NUT, 1-8 C-Z slt hex.

2шт.

517843R1

COTTER PIN

PIN, 3/16 quick attachable cot.

1шт.

22872R1

WASHER

1-17/32 x 2-1/2 x 11 ga C-Z

2шт.

137303

COTTER PIN,1/4" x 2 1/4"

PIN, SPLIT (COTTER), 1/4" x 2 1/4"

3шт.

8

490234R2

ROD

BRACE ASSY

2шт.

9

520360R1

TURNBUCKLE

2шт.

10

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 drive type lub, in turnbuckle

2шт.

218446

NUT,Jam, 1 1/8"-7, G5

1-1/8 in. jam

2шт.

11

490237R1

BRACE

ASSY, lower attaching frame

2шт.

12

490323R1

BRACE, main frame

2шт.

13

490240R1

BRACE, main frame spreader

2шт.

180193

BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 5

SCREW, 1/2-13 x 3-3/4 C-Z hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

271728

SHAFT,Hex, 5/8" - 11 x 3 1/4", Gr 5

SCREW, 5/8-11 x 3-1/4 C-Z hex-hd cap

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

2шт.

14

490241R2

PIN, frame pivot

2шт.

15

490242R1

COLLAR, thrust

2шт.

16

490243R1

BOLT, brace attachment

2шт.

131047

WASHER,7/8"

7/8"

2шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

2шт.

17

486220R1

PIN

frame retaining

2шт.

18

517843R1

COTTER PIN

PIN, 3/16 quick attachable

2шт.

19

462912R1

STAND, upper end support

1шт.

650256R1

PIN,3/4" x 2 7/8"

3/4 x 2-7/8 std-hd

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

20

462906R11

SUPPORT

PLATE ASSY, stand support

1шт.

21

462941R11

TURNBUCKLE

ROD ASSY, adjusting

1шт.

516773R1

NUT

1 in. jam

1шт.

22

490244R1

ROD

PIPE, transport

2шт.

23

490245R1

PIPE, transport

2шт.

21933R1

PIN

5/8 x 2-1/2 C-Z std-hd

2шт.

24

517843R1

COTTER PIN

PIN, 3/16 quick attachable, transport pipe

6шт.

25

490246R1

ROD, transport

1шт.

26

517843R1

COTTER PIN

PIN, 3/16 quick attachable, rod transport

1шт.

20328R1

COTTER PIN,3/16" x 1 1/2"

3/16" x 1 1/2"

1шт.

20703R1

WASHER

29/32 x 1-3/4 x 16 ga C-Z

1шт.

27

490247R1

FRAME ASSY, main LH

1шт.

27

490248R1

FRAME ASSY, main RH

1шт.

28

66584D

FITTING

3/16 str drive type

2шт.

29

16964R91

FITTING

1/4-28 90 deg lub

4шт.

30

490265R1

FRAME ASSY, 8-row wide LH extension

1шт.

30

490266R1

FRAME ASSY, 8-row wide RH extension

1шт.

87403

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

280954

NUT,3/4"-10, G5

4шт.

271816

BOLT,Hex, 7/8" - 9 x 2 1/4", Gr 5

SCREW, 7/8-9 x 2-1/4 C-Z hex-hd cap

2шт.

NLS

NO LONGER SERVICED

7/8"

2шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

2шт.

31

490269R1

FRAME ASSY, 12-row narrow LH extension

1шт.

31

490270R1

FRAME ASSY, 12-row narrow RH extension

1шт.

32

490274R1

ROCKSHAFT

2шт.

33

490275R1

ROCKSHAFT EXTENSION, 8-row wide

2шт.

34

490276R1

ROCKSHAFT EXTENSION, 12-row wide

2шт.

35

490277R1

WASHER, rockshaft

2шт.

137313

PIN,1/4" x 2 3/4"

Split (Cotter), 1/4" x 2 3/4"

4шт.

36

520420R1

CLAMP, rockshaft joint

4шт.

375624R1

BOLT,Hex, 5/8" - 11 x 3 3/4", Gr 8

SCREW, 5/8-11 x 3-3/4 type 4 hex-hd cap

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

4шт.

37

480195R1

BUSHING

BEARING, rockshaft

2шт.

38

490278R1

ARM

ASSY, rockshaft

2шт.

39

28256BB

CLAMP

CAP

2шт.

413-1076

BOLT,Hex, 5/8" - 11 x 4-3/4", Gr 5

SCREW, 5/8-11 x 4-3/4 C-Z hex-hd cap

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

4шт.

40

487533R1

CLAMP, hydraulic hose

4шт.

41

490379R1

CLAMP, hose

2шт.

18836R1

BOLT,Hex, 3/4"-10 x 1 1/2", G2

3/4-10 x 1-1/2 C-Z hex-hd mach

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

Выбрано товаров: 83
