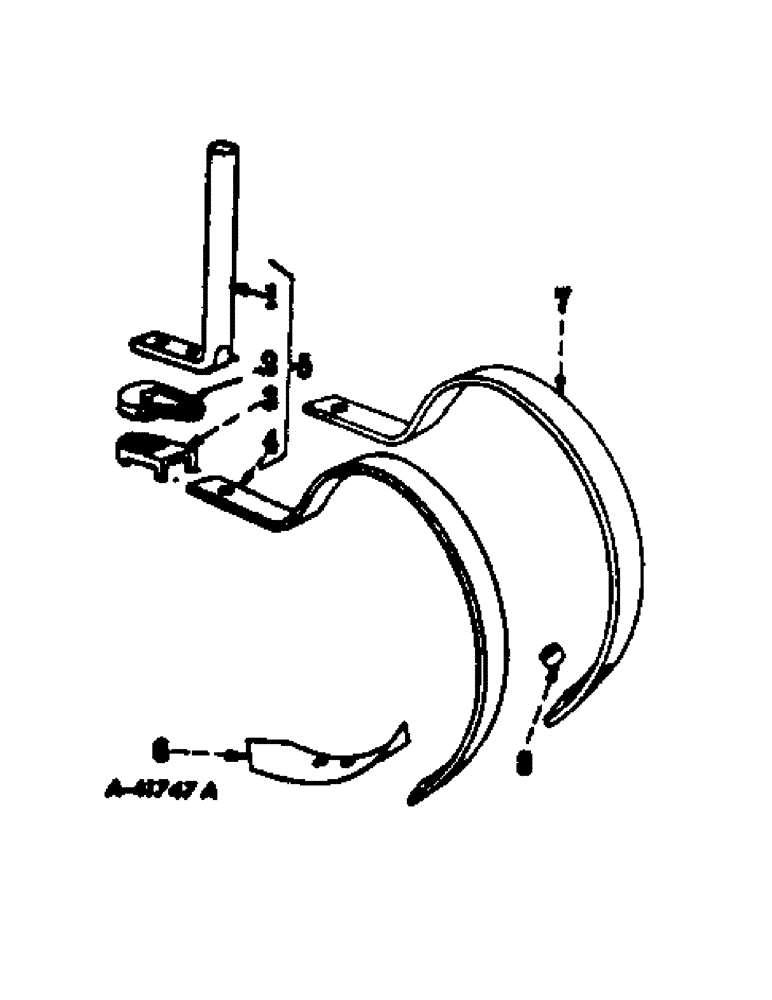

Запчасти Case IH 85 (AN-22) - SPRING TEETH

1

522087R2

ROD

STANDARD, long

1шт.

1

522286R2

SUPPORT ASSY.

STANDARD, short

1шт.

1

489724R1

STANDARD, extra short

1шт.

2

522085R1

SPRING WASHER

adjusting

1шт.

3

522086R2

ADJUSTER

BRACKET, adjusting

1шт.

4

522088R2

SPRING

TOOTH, spring, 1-3/4 in. wide, 3/8 in. thick, one used per assembly

1шт.

5

466865R91

TOOTH

ASSY, long standard double spring, 14 for six-row wide, 20 for eight-row wide, 8 for eight-row narrow, 12 for twelve-row narrow

1шт.

5

489659R91

TRIP

TOOTH ASSY, short standard double spring, 2 for six-row wide and eight row wide, 1 for eight-row narrow, one for twelve-row narrow

1шт.

5

466864R91

TOOTH

ASSY, short standard double spring, 12 for six-row wide, 16 for eight-row wide and eight-row narrow, 24 for twelve-row narrow

1шт.

6

25702BA

SHOVEL

double point, 2-1/2 x 11 in., one used per assembly

1шт.

25596BBX

BOLT

ASSY, 7/16 x 2 special shovel and sweep, 1 per shovel

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, , 1 per shovel 7/16"

1шт.

271501

SOCKET

NUT, 7/16-14 znd hex., 1 per shovel

1шт.

21029R1

WASHER

15/32 x 1 x 11 ga C-Z, 1 per shovel

1шт.

25548BBX

BOLT,7/16" - 14 x 1 1/2"

ASSY, special sweep and shovel, 1 per shovel

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, , 1 per shovel 7/16"

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 znd hex., 1 per shovel

1шт.

21029R1

WASHER

15/32 x 1 x 11 ga C-Z, 1 per shovel

1шт.

7

466866R1

TOOTH

outer spring, one used per assembly

1шт.

271728

SHAFT,Hex, 5/8" - 11 x 3 1/4", Gr 5

SCREW, 5/8 x 3-1/4 znd hex-hd cap

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

1шт.

8

SA2344

SPACER,3/8" Pipe x 7/16"

outer spring tooth, one used per assembly

1шт.
