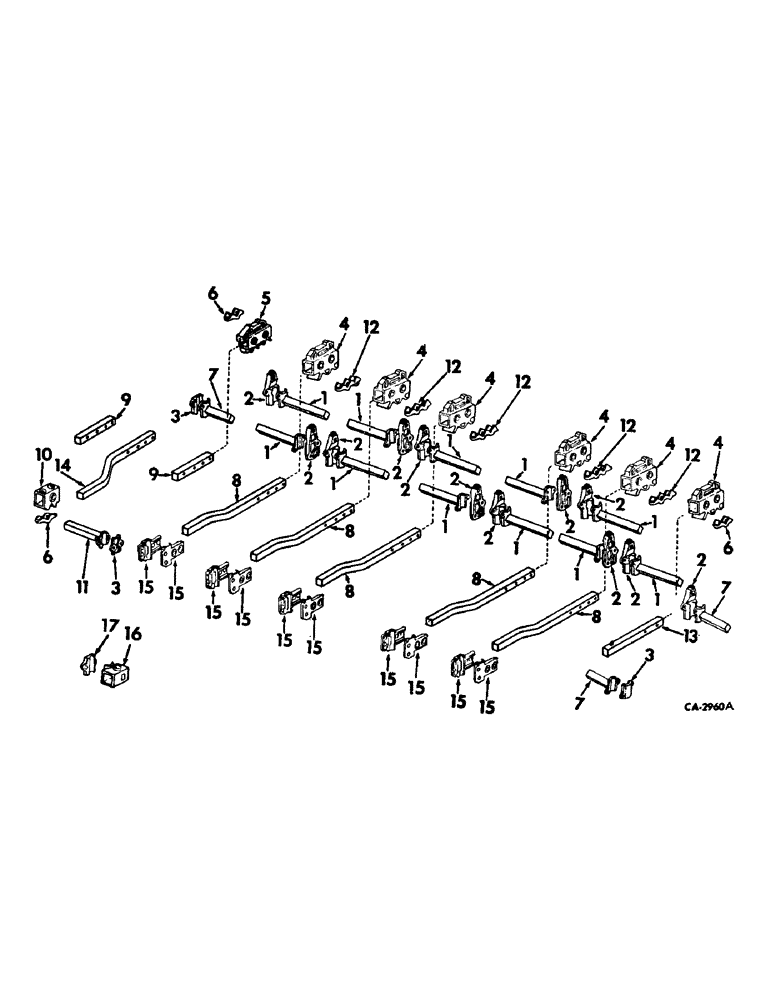

Запчасти Case IH 85 (AN-21) - SQUARE BARS, EXTENSIONS & CLAMPS, 22, 25, 34 & 37 EQUIPMENT, 8 & 12-ROW NARROW (1972 & SINCE)

Service parts for 25, 16 equipment for eight-row narrow, consist of all unmarked parts and those marked unit A

1шт.

Service parts for 22, 16 equipment for eight-row narrow, consist of all unmarked parts and those marked unit B

1шт.

Service parts for 25 double spring teeth equipment for eight-row narrow, consist of all unmarked parts and those marked unit C

1шт.

Service parts for 37, 16 equipment for twelve-row narrow, consist of all unmarked parts and those marked unit D

1шт.

Service parts for 34, 16 equipment for twelve-row narrow, consist of all unmarked parts and those marked unit E

1шт.

Service parts for 37 double spring teeth equipment for twelve-row narrow, consist of all unmarked parts and those marked unit F

1шт.

1

542041R1

EXTENSION

1-3/8 x 11-5/8 in., 12 for units A and B, 13 for unit C, 20 for units D, E and F

1шт.

2

483255R1

CAP

1-3/8 sq extension w/sq for shield, 14 for units A, B and C, 22 for units D, E and F

1шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 C-Z hex-hd mach, one used per cap

1шт.

18956R1

BOLT,5/8" - 11 x 2 1/2", Gr 2

5/8 x 2-1/2 C-Z sq-hd mach, 2 used per cap

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex., 2 used per cap

1шт.

3

510918R1

CLAMP

CAP, 1-3/8 sq extension, 4 for units A, B, D and E, 5 for units C and F

1шт.

18956R1

BOLT,5/8" - 11 x 2 1/2", Gr 2

5/8 x 2-1/2 C-Z sq-hd mach, 2 per cap

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex., 2 per cap

1шт.

4

542040R1

CLAMP

outer linkage tool bar, 8 for units A, B, and C, 12 for units D, E and F

1шт.

18476R1

BOLT,Hex, 1/2"-13 x 2 1/2", G2

1/2-13 x 2-1/2 C-Z hex-hd mach, 2 used per clamp

1шт.

120384

WASHER,1/2"

LOCK, , 2 used per clamp 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 2 used per clamp 1/2"-13, G5

1шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga, C-Z, 22 for units A, B and C, 38 for units D, E and F

1шт.

426-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

SCREW, 5/8-11 x 2-1/2 znd hex-hd cap, 22 for units A, B and C, 38 for units D, E and F

1шт.

5

489640R1

CLAMP, inner linkage tool bar

2шт.

18476R1

BOLT,Hex, 1/2"-13 x 2 1/2", G2

1/2-13 x 2-1/2 C-Z hex-hd mach, 2 used per clamp

2шт.

120384

WASHER,1/2"

LOCK, , 2 used per clamp 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 2 used per clamp 1/2"-13, G5

1шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2-13 x 1 C-Z hex-hd mach, one used per clamp

1шт.

426-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

SCREW, 5/8-11 x 2-1/2 znd hex-hd cap, 2 per clamp

1шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z, 2 per clamp

1шт.

6

547750R1

CLAMP

cap, 6 for units B and E, 7 for units A, C, D and F

1шт.

7

489644R1

EXTENSION, 1-3/8 sq x 6-1/2 in.

6шт.

8

544231R1

BAR, center tool, 4 for unit B, 6 for units A and C, 8 for unit E and 10 for units D and F

1шт.

9

489737R1

BAR, no. 1 short filler, one for units A, C, D and F, 4 for units B and E

1шт.

10

542995R1

CLAMP

tool bar extension, 2 for units B and E, 3 for units A, C, D and F

1шт.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

SCREW, 5/8 x 3 znd hex-hd cap, 2 per clamp

1шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga. C-Z, 2 per clamp

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex., 2 per clamp

1шт.

26143R1

SCREW, 3/4-10 x 1-1/4 znd sq-hd dog-pt set, 1 per clamp

1шт.

11

521750R1

CLAMP

EXTENSION, 1-1/4 sq x 9-3/4 in., 1 for unit C

1шт.

11

542041R1

EXTENSION

1-3/8 sq x 11-5/8 in., 1 for unit F

1шт.

12

542039R1

CLAMP

CAP, double clamp, 6 for units A, B and C, 10 for units D, E and F

1шт.

13

544233R1

BAR, outer tool

2шт.

14

489736R1

BAR, no. 1 LH long offset, one for units A, C, D and F

1шт.

15

542999R1

CLAMP

half, 8 for unit B, 12 for units A and C, 16 for units E and F, 20 for unit D

1шт.

271726

ROTOR,Hex, 5/8" - 11 x 2 3/4", Gr 5

SCREW, 5/8-11 x 2-3/4 znd hex-hd cap, 1 per clamp

1шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

SCREW, 1/2-13 x 2-1/2 znd hex-hd cap, 1 per clamp

1шт.

120384

WASHER,1/2"

LOCK, , 1 per clamp 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 1 per clamp 1/2"-13, G5

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex., 1 per clamp

1шт.

16

544221R1

CLAMP

square tool bar, 2 for unit F, on no. 2 RH and LH tool bars with spring tooth attachment

1шт.

26134R1

PIN, 3/8 x 14.000 pln hd type 1

2шт.

17

544222R1

CAP

round standard, 2 for unit F, used w/clamp, 544221R1

1шт.

18824R1

BOLT,Hex, 5/8"-11 x 2 1/2", G2

5/8 x 2-1/2 type 1

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

4шт.
