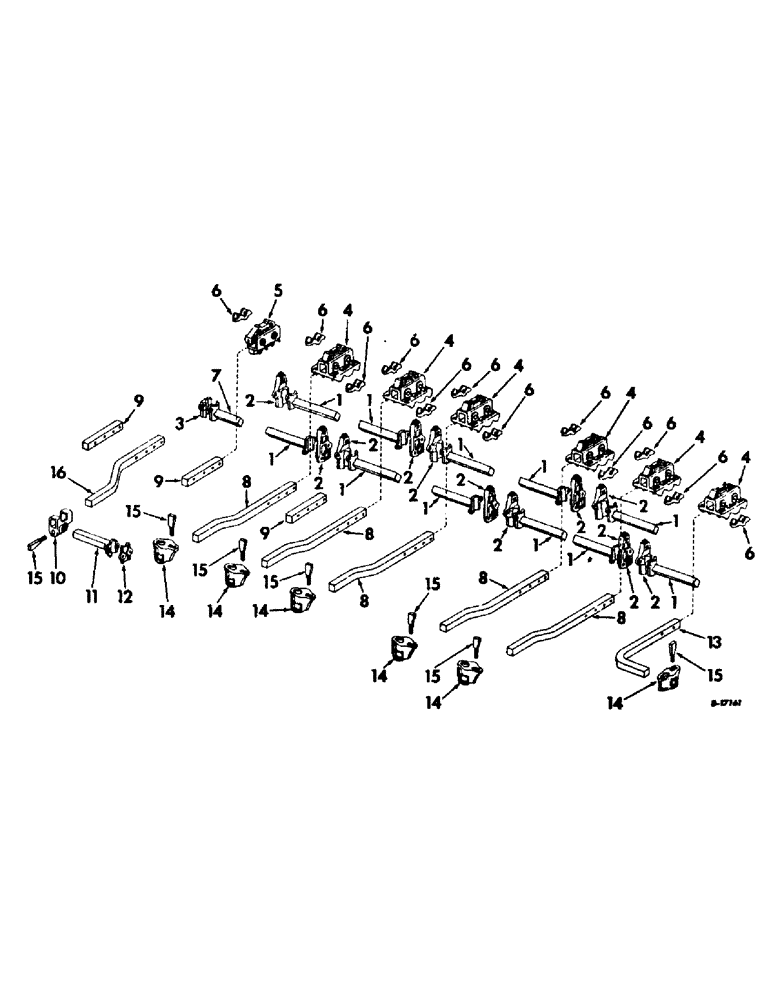

Запчасти Case IH 85 (AN-19) - SQUARE BARS, EXTENSIONS & CLAMPS, 22, 25, 34 & 37 EQUIPMENT, 8 & 12-ROW NARROW (1968-1972)

Service parts for 25, 16 equipment for eight-row narrow, consist of all unmarked parts and those marked unit A

1шт.

Service parts for 22, 16 equipment for eight-row narrow, consist of all unmarked parts and those marked unit B

1шт.

Service parts for 25 double spring teeth equipment for eight-row narrow, consist of all unmarked parts and those marked unit C

1шт.

Service parts for 37, 16 equipment for twelve-row narrow, consist of all unmarked parts and those marked unit D

1шт.

Service parts for 34, 16 equipment for twelve-row narrow, consist of all unmarked parts and those marked unit E

1шт.

Service parts for 37 double spring teeth equipment for twelve-row narrow, consist of all unmarked parts and those marked unit F

1шт.

1

30790BA

EXTENSION

1-3/8 sq x 8-5/8 in., 14 for units A, B and C

1шт.

1

511992R2

EXTENSION

1-3/8 sq x 9-5/8 in., 22 for units D, E and F

1шт.

2

483255R1

CAP

1-3/8 sq extension w/sq for shield, 14 for units A, B and C, 22 for units D, E and F

1шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 C-Z hex-hd mach, one used per cap

1шт.

18956R1

BOLT,5/8" - 11 x 2 1/2", Gr 2

5/8 x 2-1/2 C-Z sq-hd mach, 2 used per cap

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex., 2 used per cap

1шт.

3

510918R1

CLAMP

CAP, 1-3/8 sq extension

2шт.

18956R1

BOLT,5/8" - 11 x 2 1/2", Gr 2

5/8 x 2-1/2 C-Z sq-hd mach

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex.

4шт.

4

483254R2

CLAMP, outer linkage tool bar, 8 for units A, B and C, 12 for units D, E and F

1шт.

18476R1

BOLT,Hex, 1/2"-13 x 2 1/2", G2

1/2-13 x 2-1/2 C-Z hex-hd mach, 2 used per clamp

1шт.

120384

WASHER,1/2"

LOCK, , 2 used per clamp 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 2 used per clamp 1/2"-13, G5

1шт.

5

489640R1

CLAMP, inner linkage tool bar

2шт.

18476R1

BOLT,Hex, 1/2"-13 x 2 1/2", G2

1/2-13 x 2-1/2 C-Z hex-hd mach, 2 used per clamp

2шт.

120384

WASHER,1/2"

LOCK, , 2 used per clamp 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 2 used per clamp 1/2"-13, G5

1шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 C-Z hex-hd mach, one used per clamp

1шт.

6

28256BB

CLAMP

CAP, clamp, 16 for units A, B and C, 24 for units D, E and F

1шт.

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

SCREW, 5/8-11 x 3-1/2 C-Z hex-hd cap, 28 for units A, B and C, 44 for units D, E and F

1шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

SCREW, 5/8-11 x 2-1/4 C-Z hex-hd cap, 4 used for all units

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex., 28 for units A, B and C, 44 for units D, E and F

1шт.

7

489644R1

EXTENSION, 1-3/8 sq x 6-1/2 in.

2шт.

8

486391R1

BAR, center tool, 6 for units A and C, 4 for unit B, 10 for units D and F, 8 for unit E

1шт.

9

489737R1

BAR, no. 1 short filler, one for units A, C, D and F, 4 for units B and E

1шт.

10

552556R1

CLAMP, tool bar extension, one for units A, C, D and F

1шт.

11

521750R1

CLAMP

EXTENSION, 1-1/4 sq x 9-3/4 in. one for units C and F

1шт.

12

1779BB

CLAMP

CAP, 1-1/4 sq extension, one for units C and F

1шт.

29822B

BOLT

1/2-13 x 2-3/4 sq-hd mach, 2 for units C and F

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 2 for units C and F 1/2"-13, G5

1шт.

13

490325R1

BAR, outer tool

2шт.

14

522557R2

CLAMP

standard, 8 for units A and C, 6 for unit B, 12 for units D, E and F

1шт.

15

27585BA

BOLT,Wedge, 1/2" - 13 x 4 1/2", Long

wedge, 9 for units A and C, 6 for unit B, 13 for units D and F, 12 for unit E

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 1 used per bolt 1/2"-13, G5

1шт.

16

489736R1

BAR, no. 1 LH long offset, one for units A, C, D and F

1шт.
