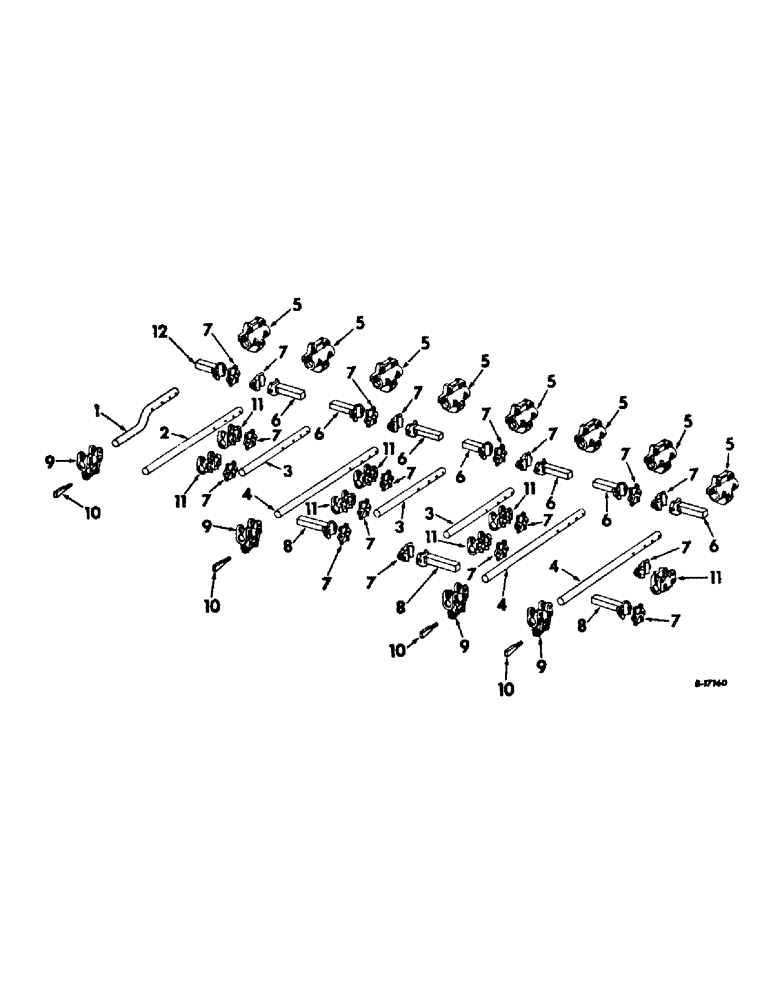

Запчасти Case IH 85 (AN-18) - ROUND BARS, EXTENSIONS & CLAMPS, 28 & 38 EQUIPMENT, FOR SIX AND EIGHT-ROW WIDE

Service parts for six-row wide cultivators w/28 round equipment, consist of all unmarked parts and those marked unit A

1шт.

Service parts for eight-row wide cultivators w/38 round equipment, consist of all unmarked parts and those marked unit B

1шт.

1

489653R1

BAR, short offset tool

2шт.

2

489651R1

BAR, no. 2 tool

2шт.

3

489650R1

BAR, no. 3 and 4, 4 for unit A, no. 3, 5 and 6, 6 for unit B

1шт.

4

489649R1

BAR, no. 5 and 6, 4 for unit A, no. 4, 7 and 8, 6 for unit B

1шт.

5

489641R1

CLAMP, round tool bar, 12 for unit A, 16 for unit B

1шт.

22217R1

SCREW, 5/8-11 x 1 C-Z sq-hd cup-pt set, 2 used per clamp

1шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 C-Z hex-hd mach, one used per clamp

1шт.

18811R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 2

1/2 x 2-3/4 C-Z hex-hd mach, 2 used per clamp

1шт.

120384

WASHER,1/2"

LOCK, , 2 used per clamp 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 2 used per clamp 1/2"-13, G5

1шт.

6

28236BB

CLAMP

EXTENSION, 1-1/4 sq x 7-3/4 in. 12 for unit A, 16 for unit B

1шт.

7

1779BB

CLAMP

CAP, 1-1/4 sq extension, 28 for unit A, 38 for unit B

1шт.

29822B

BOLT

1/2-13 x 2-3/4 sq-hd mach, 36 for unit A, 48 for unit B

1шт.

29821B

BOLT, 1/2-13 x 2-1/2 sq-hd mach, 26 for unit A, 28 for unit B

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 56 for unit A; 76 for unit B 1/2"-13, G5

1шт.

8

521750R1

CLAMP

EXTENSION, 1-1/4 sq x 9-3/4 in., 4 for unit A, 6 for unit B

1шт.

9

1846BX

CLAMP

ASSY, tool bar extension, 6 for unit A, 8 for unit B

1шт.

18709R1

BOLT,Short NK, 1/2"-13 x 2 3/4", G2

1/2 x 2-3/4 znd sq-nk crg, 2 per clamp assy

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 2 per clamp assy 1/2"-13, G5

1шт.

10

27585BA

BOLT,Wedge, 1/2" - 13 x 4 1/2", Long

wedge, 6 for unit A, 8 for unit B

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 1 used per bolt 1/2"-13, G5

1шт.

11

1869BX

CLAMP

ASSY, standard, 10 for unit A, 14 for unit B

1шт.

22217R1

SCREW, 5/8-11 x 1 C-Z sq-hd cup-pt set, one used per clamp

1шт.

18710R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 2

BOLT, 1/2 x 3 C-Z sq-nk crg, 2 used per clamp

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 2 per clamp assy 1/2"-13, G5

1шт.

12

28164BB

CLAMP

EXTENSION, 1-1/4 sq x 6-1/2 in.

2шт.
