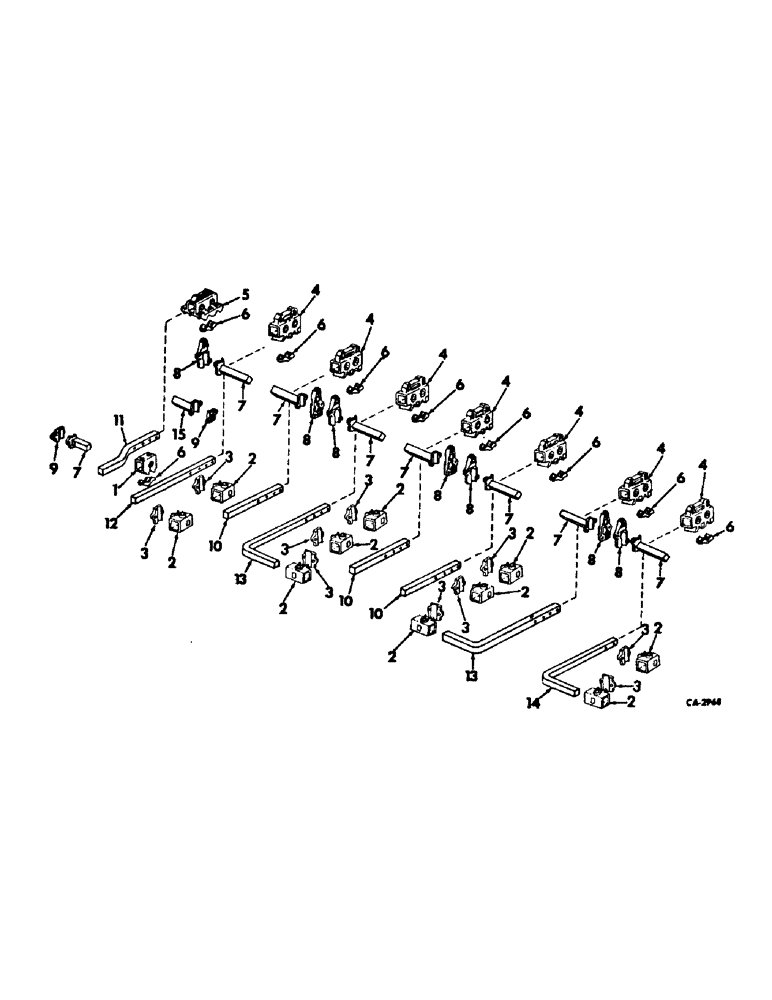

Запчасти Case IH 85 (AN-16) - SQUARE BARS, EXTENSIONS & CLAMPS, 28 & 38 EQUIPMENT, FOR 6 & 8-ROW WIDE CULTIVATORS (1972 & SINCE)

Service parts for six-row wide cultivators w/28 equipment, consists of all unmarked parts and those marked unit A

1шт.

Service parts for six-row wide cultivators w/28 double spring teeth equipment, consist of all unmarked parts and those marked unit B

1шт.

Service parts for eight-row wide cultivators w/38 equipment, consist of all unmarked parts and those marked unit C

1шт.

Service parts for eight-row wide cultivators w/38 double spring teeth equipment, consist of all unmarked parts and those marked unit D

1шт.

1

542995R1

CLAMP

tool bar extension

1шт.

271727

CAM,Hex, 5/8" - 11 x 3", Gr 5

SCREW, 5/8 x 3 znd hex-hd cap

4шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

4шт.

26143R1

SCREW, 3/4-10 x 1-1/4 znd sq-hd dog-pt set

2шт.

2

544221R1

CLAMP

sq-tool bar standard, 20 for unit C and D

8шт.

26143R1

SCREW, 3/4-10 x 1-1/4 znd sq-hd dog-pt set, one used per clamp

1шт.

3

544222R1

CAP

round standard, 14 for units A and B, 20 for units C and D

1шт.

18824R1

BOLT,Hex, 5/8"-11 x 2 1/2", G2

5/8 x 2-1/2 znd hex-hd mach, 2 used per cap

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex., 2 used per cap

1шт.

4

542040R1

CLAMP

outer linkage tool bar attaching, 10 for unit A and B, 14 for unit C and d

1шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z, 2 used per clamp

1шт.

426-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

SCREW, 5/8-11 x 2-1/2 znd hex-hd cap, 2 used per clamp

1шт.

18476R1

BOLT,Hex, 1/2"-13 x 2 1/2", G2

1/2-13 x 2-1/2 C-Z hex-hd mach, 2 used per clamp

1шт.

120384

WASHER,1/2"

LOCK, , 2 used per clamp 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 2 used per clamp 1/2"-13, G5

1шт.

5

489640R1

CLAMP, inner linkage tool bar

2шт.

18476R1

BOLT,Hex, 1/2"-13 x 2 1/2", G2

1/2-13 x 2-1/2 C-Z hex-hd mach, 2 used per clamp

2шт.

120384

WASHER,1/2"

LOCK, , 2 used per clamp 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 2 used per clamp 1/2"-13, G5

1шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 C-Z hex-hd mach

2шт.

6

547750R1

CLAMP

cap, 14 for units A and B, 18 for units C and D

1шт.

7

30790BA

EXTENSION

1-3/8 sq x 8-5/8 in., 12 for units A and B, 16 for units C and D

1шт.

8

483255R1

CAP

1-3/8 sq extension w/sq for shield, 10 for unit A and B, 14 for unit C and D

1шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 C-Z hex-hd mach, one used per cap

1шт.

18956R1

BOLT,5/8" - 11 x 2 1/2", Gr 2

5/8 x 2-1/2 C-Z sq-hd mach, 2 used per cap

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex., 2 used per cap

1шт.

9

510918R1

CLAMP

CAP, 1-3/8 sq extension

4шт.

18956R1

BOLT,5/8" - 11 x 2 1/2", Gr 2

5/8 x 2-1/2 C-Z sq-hd mach

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex.

8шт.

10

489645R1

BAR, no. 3 and 4 on six-row, 4 for units A and B, no. 3, 5 and 6 on eight-row, 6 for units C and D

1шт.

11

489646R1

BAR, tool short offset no. 1 RH

1шт.

11

489736R1

BAR, tool short offset no. 1 LH

1шт.

12

489647R1

BAR

no. 2 tool

2шт.

13

489648R1

BAR, no. 5 on six-row, 2 for units A and B, 4 for units C and D

1шт.

14

490324R1

BAR, outer tool

2шт.

15

489644R1

EXTENSION, 1-3/8 sq x 6-1/2 in.

2шт.
