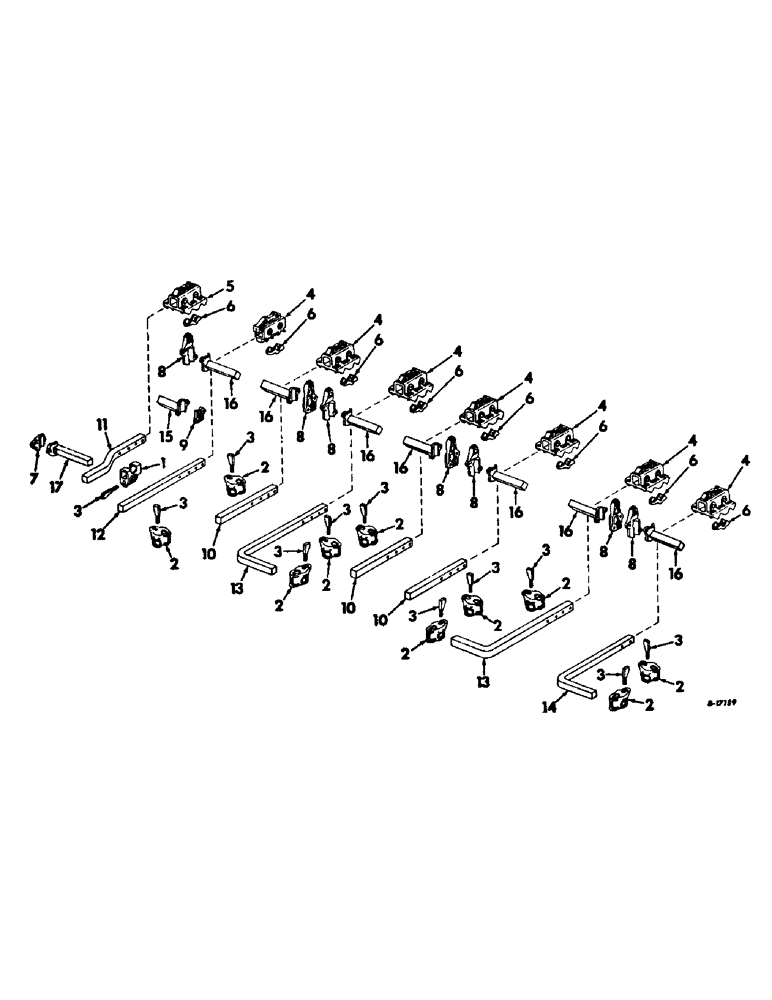

Запчасти Case IH 85 (AN-14) - SQUARE BARS, EXTENSIONS & CLAMPS, 28 & 38 EQUIPMENT, FOR 6 & 8-ROW WIDE CULTIVATORS (1968-1972)

Service parts for six-row wide cultivators w/28 equipment, consist of all unmarked parts and those marked unit A

1шт.

Service parts for six-row wide cultivators w/28 double spring teeth equipment, consist of all unmarked parts and those marked unit B

1шт.

Service parts or eight-row wide cultivators w/38 equipment, consists of all unmarked parts and those marked unit C

1шт.

Service parts for eight-row wide cultivators w/38 double spring teeth equipment, consist of all unmarked parts and those marked unit D

1шт.

1

522556R1

CLAMP

tool bar extension

2шт.

2

522557R1

CLAMP

standard, 14 for unit A and B, 20 for unit C and D

1шт.

3

27585BA

BOLT,Wedge, 1/2" - 13 x 4 1/2", Long

wedge, 16 for unti A and B, 22 for unit C and D

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 1 used per bolt 1/2"-13, G5

1шт.

4

483254R2

CLAMP, outer linkage tool bar, 10 for unit A and B, 14 for unit C and D

1шт.

18476R1

BOLT,Hex, 1/2"-13 x 2 1/2", G2

1/2-13 x 2-1/2 C-Z hex-hd mach, 2 used per clamp

1шт.

120384

WASHER,1/2"

LOCK, , 2 used per clamp 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 2 used per clamp 1/2"-13, G5

1шт.

5

489640R1

CLAMP, inner linkage tool bar

2шт.

18476R1

BOLT,Hex, 1/2"-13 x 2 1/2", G2

1/2-13 x 2-1/2 C-Z hex-hd mach, 2 used per clamp

1шт.

120384

WASHER,1/2"

LOCK, , 2 used per clamp 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 2 used per clamp 1/2"-13, G5

1шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 C-Z hex-hd mach

2шт.

6

28256BB

CLAMP

CAP, clamp, 12 for unit A and B, 16 for unit C and D

1шт.

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

SCREW, 5/8-11 x 3-1/2 C-Z hex-hd cap, 20 for unit A and B, 28 for unit C and D

1шт.

271724

PIN,Hex, 5/8" - 11 x 2 1/4", Gr 5

SCREW, 5/8-11 x 2-1/4 C-Z hex-hd cap

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex., 20 for unit A and B, 28 for unit C and D

1шт.

7

1779BB

CLAMP

CAP, 1-1/4 sq extension, 2 for units B and D

1шт.

29822B

BOLT

1/2-13 x 2-3/4 sq-hd mach, 4 for units B and D

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 4 for units B and D 1/2"-13, G5

1шт.

8

483255R1

CAP

1-3/8 sq extension w/sq for shield, 10 for unit A and B, 14 for unit C and D

1шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 C-Z hex-hd mach, one used per cap

1шт.

18956R1

BOLT,5/8" - 11 x 2 1/2", Gr 2

5/8 x 2-1/2 C-Z sq-hd mach, 2 used per cap

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex., 2 used per cap

1шт.

9

510918R1

CLAMP

CAP, 1-3/8 sq extension

2шт.

18956R1

BOLT,5/8" - 11 x 2 1/2", Gr 2

5/8 x 2-1/2 C-Z sq-hd mach

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex.

4шт.

10

489645R1

BAR, no. 3 and 4 on six-row, 4 for units A and B, no. 3, 5 and 6 on eight-row, 6 for units C and D

1шт.

11

489646R1

BAR, short offset tool

2шт.

12

489647R1

BAR

no. 2 tool

2шт.

13

489648R1

BAR, no. 5 on six-row, 2 for units A and B, 4 for units C and D

1шт.

14

490324R1

BAR, outer tool

2шт.

15

489644R1

EXTENSION, 1-3/8 sq x 6-1/2 in.

2шт.

16

30790BA

EXTENSION

1-3/8 sq x 8-5/8 in., 10 for units A and B, 14 for units C and D

1шт.

17

28236BB

CLAMP

EXTENSION, 1-1/4 sq x 7-3/4 in., 2 for unit B and D

1шт.
