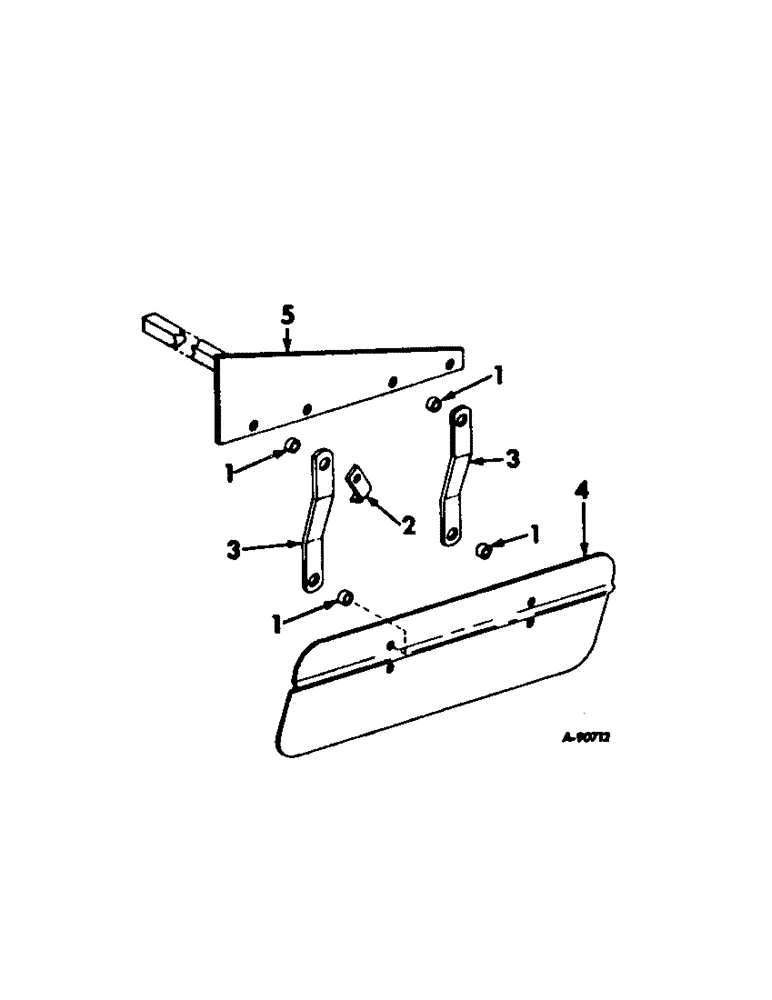

Запчасти Case IH 85 (AN-12) - INNER SHIELD, FOR NARROW AND WIDE ROW

1

512836R1

WASHER

BUSHING, pivot link

8шт.

2

515217R1

SUPPORT

CLIP, shield adjusting

2шт.

3

489723R1

SUPPORT

ARM, offset

4шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

6шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z hex-hd mach

2шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

12шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

136857

WASHER,Ext Tooth, 7/16"

7/16 C-Z ext-tooth lock

2шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

4

526319R1

SHIELD

LH

1шт.

4

526320R1

SHIELD

RH

1шт.

5

489720R1

SUPPORT ASSY, LH, for six-row cultivators, 36 to 40 in. spacing, for eight-row cultivators, 36 to 40 in. spacing

1шт.

5

489721R1

SUPPORT ASSY, RH, for six-row cultivators, 36 to 40 in. spacing, for eight-row cultivators, 36 to 40 in. spacing

1шт.

5

489741R1

SUPPORT ASSY, LH, for eight-row cultivators, 28 to 30 in. spacing, for twelve-row cultivators, 28 to 30 in. spacing

1шт.

5

489742R1

SUPPORT ASSY, RH, for eight-row cultivators, 28 to 30 in. spacing, for twelve-row cultivators, 28 to 30 in. spacing

1шт.
