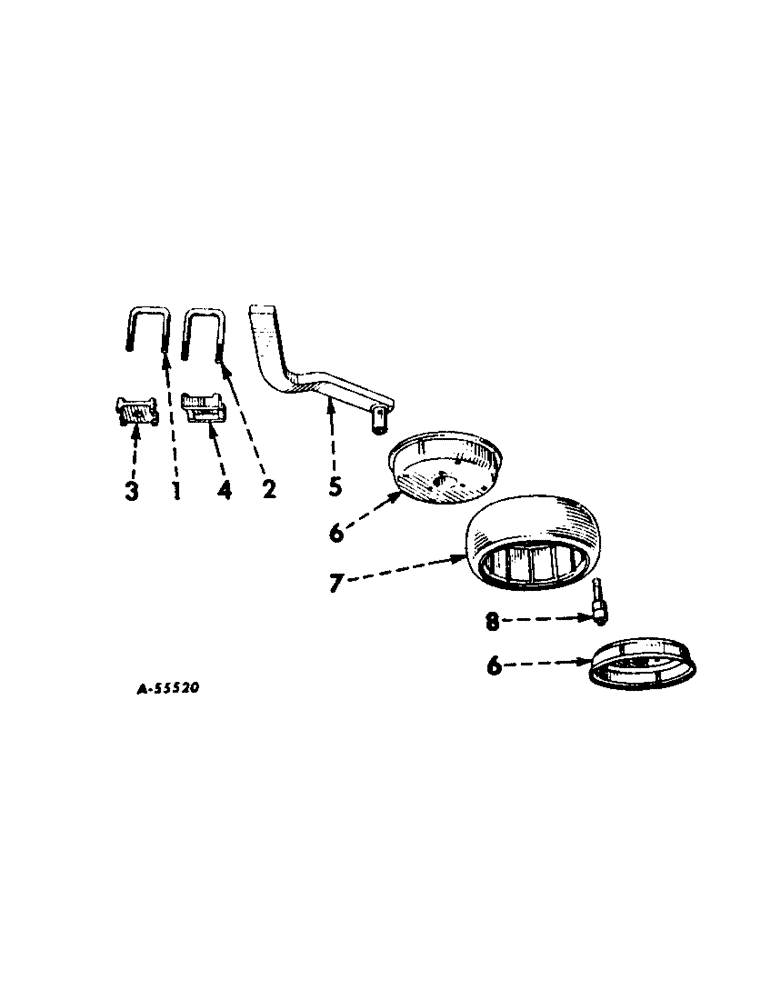

Запчасти Case IH 85 (AN-11) - GAUGE WHEELS W/PRECISION BEARING

1

522572R2

BOLT,U, 1/2" - 13 x 3 3/16"

U-BOLT, standard, for sq tool bar

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

2

522647R1

BOLT,U, 1/2" - 13 x 3 5/8"

U-BOLT, standard, for rd tool bar

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

3

522571R2

BLOCK

standard clamp, for sq tool bar

2шт.

4

522635R1

CLAMP

BLOCK, standard clamp L.H., for rd tool bar

1шт.

4

522636R1

CLAMP

BLOCK, standard clamp R.H., for rd tood bar

1шт.

5

526766R11

SUPPORT ASSY.

STANDARD ASSEMBLY, gauge wheel L.H.

1шт.

22227R1

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW, 3/8-16 x 3/8 C-Z hex-soc-hd f-pt set

1шт.

5

526767R11

SUPPORT ASSY.

STANDARD ASSEMBLY, gauge wheel R.H.

1шт.

22227R1

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW, 3/8-16 x 3/8 C-Z hex-soc-hd f-pt set

1шт.

6

526768R1

WHEEL

RIM, gauge wheel

2шт.

18473R1

SCREW,Hex, 5/16"-18 X 5/8", G2

BOLT, 5/16-18 x 5/8 C-Z hex-hd mach

7шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

7

516492R1

TYRE/TIRE

TIRE, 4 x 12 semi-pneumatic

1шт.

8

ST667

BEARING

ASSEMBLY, gauge wheel, double row ball

2шт.
