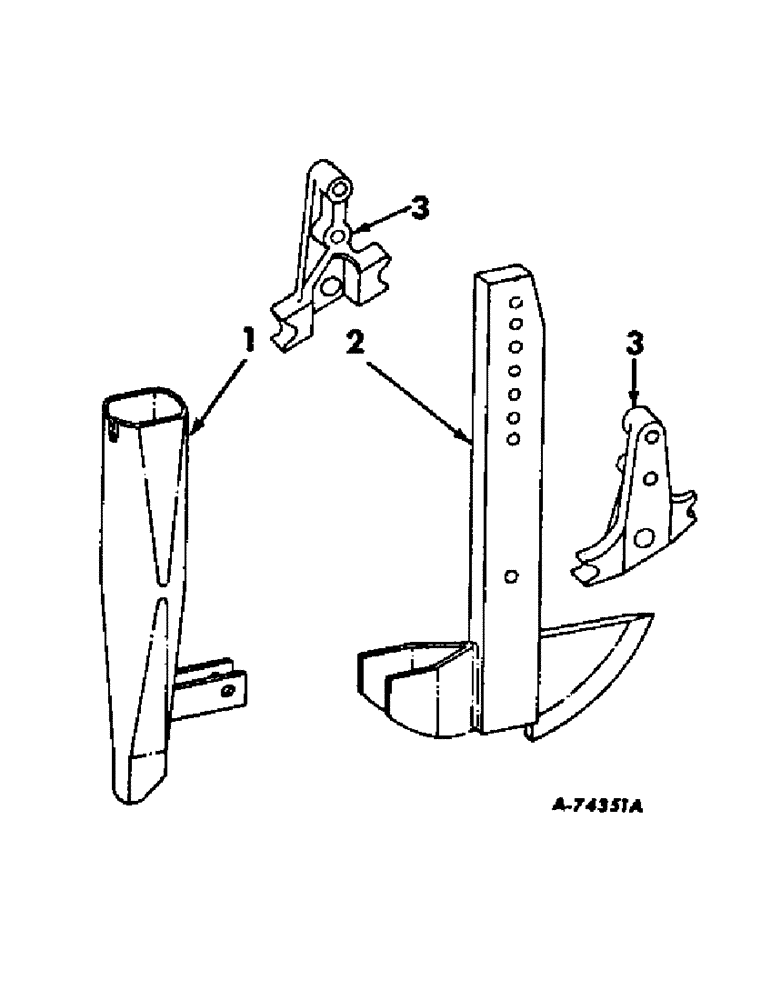

Запчасти Case IH 82-SERIES (B-10[A]) - RUNNER OPENER W/SPACERS AND SEED SPOUT

1

471720R91

SPOUT ASSY, lower

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 c-z hex-hd mach

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

2

471716R91

RUNNER

ASSY, opener

1шт.

3

517933R2

SPACER

BLOCK, spacer

2шт.

517906R1

SCREW, 7/16-14 x 1-1/2 hex-hd cap

2шт.

DKN6466

SPRING

SCREW, 7/16-14 x 3-1/4 c-z hex-hd cap

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 c-z hex.

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

3шт.
