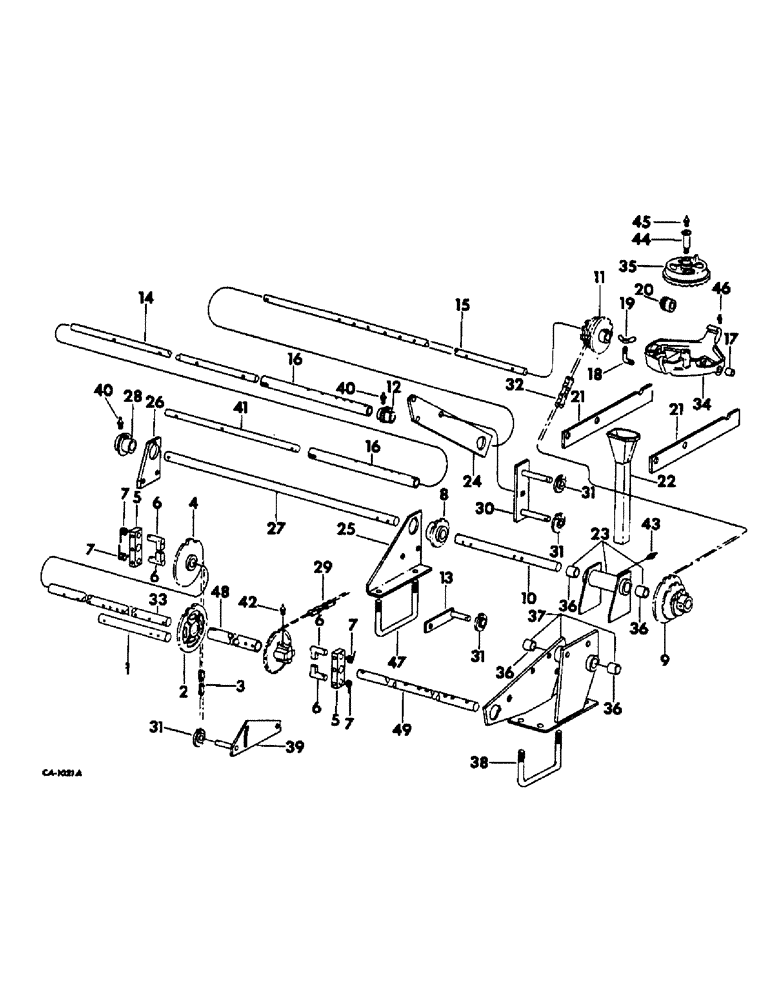

Запчасти Case IH 82-SERIES (B-07) - SPROCKETS, GEARS AND SHAFTS FOR PLANTING

1

541664R1

SHAFT, wheel pivot, 2 for 4 row

1шт.

609836R1

WASHER

1-1/32 x 1-3/4 x 16 ga c-z

2шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

2

480260R1

SPROCKET ASSY.

SPROCKET, 16 T - 4 for 4 row & 6 row narrow, 2 for 6 row wide & 8 row

1шт.

22067R1

PIN

1/4 x 2-1/16 c-z std-hd, 1 per sprocket

1шт.

21628R1

PIN

1/8 x 3/4 c-z self-opening cot., 1 per sprocket

1шт.

3

CHAIN, gauge wheel, 2 for 4 row & 6 row, 4 for 8 row, Use 75 links of 1 in. extended pitch roller chain from a 10 ft marked, 569088R91 and one connecting link, 457113R91

1шт.

4

541666R1

SPROCKET ASSY.

SPROCKET, 16 t drive, 2 for 6 row wide, 4 for 8 row

1шт.

5

541667R1

BAR

PAWL, carrier, 2 for 6 row wide, 4 for 8 row

1шт.

21835R1

HEADED PIN,5/16" x 1 3/4"

PIN, 5/16 x 1-3/4 c-z std-hd, 1 per pawl

1шт.

21630R1

COTTER PIN

PIN, 1/8 x 1 c-z self-opening cot., 1 per pawl

1шт.

6

472329R1

PAWL

drive sprocket, 4 for 6 row wide, 8 for 8 row

1шт.

137190

PIN,1/8" x 1 1/8"

1/8" x 1-1/8", 1 per sprocket pawl

1шт.

7

472721R1

SPRING

wheel ratchet LH, 2 for 6 row wide, 4 for 8 row

1шт.

7

472722R1

SPRING

wheel ratchet RH, 2 for 6 row wide, 4 for 8 row

1шт.

8

541668R1

SPROCKET ASSY.

SPROCKET, 10 teeth

2шт.

22067R1

PIN

1/4 x 2-1/16 c-z std-hd

2шт.

21628R1

PIN

1/8 x 3/4 c-z self-opening cot.

2шт.

9

484138R1

SPROCKET ASSY.

SPROCKET, 8, 12, 17 teeth, For 1 in. shaft

2шт.

22211R1

SCREW

3/8-16 x 1/2 c-z sq-hd cup-pt set

4шт.

10

541669R1

ROD

COUNTERSHAFT, 13-5/8 in. long, 2 for 6 row wide & 8 row wide

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

4шт.

609836R1

WASHER

1-1/32 x 1-3/4 x 16 ga c-z

4шт.

10

541689R1

COUNTERSHAFT, 11-1/2 in. long, 2 for 8 row narrow

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

4шт.

609836R1

WASHER

1-1/32 x 1-3/4 x 16 ga c-z

6шт.

11

541670R1

SPROCKET ASSY.

SPROCKET, 7, 10, 12 teeth, For 3/4 in. shaft

2шт.

22211R1

SCREW

3/8-16 x 1/2 c-z sq-hd cup-pt set

4шт.

12

512806R1

SLEEVE

BEARING, feed rod

2шт.

21633R1

PIN, 3/16 x 1-1/4 c-z self-opening cot.

2шт.

13

541699R1

ARM

ASSY, chain tightener, 2 for 4 & 6 row and 8 rowwide

1шт.

21632R1

COTTER PIN

PIN, 3/16 x 1 c-z self-opening cot., 1 per arm assy

1шт.

271771

HOUSING,Hex, 3/4" - 10 x 2", Gr 5

SCREW, 3/4-10 x 2 znd hex-hd cap

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.

13

484106R91

ARM ASSY, chain tightener, 2 for 8 row narrow

1шт.

21632R1

COTTER PIN

PIN, 3/16 x 1 c-z self-opening cot, 1 per arm assy

1шт.

88692

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 5, Full Thd

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.

14

541682R1

SHAFT, center feed, 43-5/8 in. long, 2 for 6 row narow

1шт.

14

541672R1

SHAFT, center feed, 47-5/8 in. long, 2 for 8 row narrow

1шт.

14

541703R1

SHAFT

center feed, 67 in. long, 2 for 8 row wide

1шт.

15

541674R1

SHAFT, outer feed, 49-13/16 in. long, 2 for 4 row

1шт.

15

541671R1

SHAFT, outer feed, 13-1/2 in. long, 2 for 6 and 8 row narrow

1шт.

15

541673R1

ROD

SHAFT, outer feed, 58-5/16 in. long, 2 for 6 row wide

1шт.

15

541675R1

ROD

SHAFT, outer feed, 18-1/2 in. long, 2 for 8 row wide

1шт.

16

541676R1

PIPE

COUPLER, feed shaft, 15 in. long, 2 for 6 row wide, 4 for 8 row wide

1шт.

16

520456R1

COUPLER, feed shaft, 15-3/16 in. long, 2 for 6 row narrow, 4 for 8 row narrow

1шт.

21628R1

PIN

1/8 x 3/4 c-z self-opening cot., 2 per coupling

1шт.

22194R1

PIN, 1/4 x 1-3/8 c-z std-hd, 2 per coupling

1шт.

21801R1

WASHER

9/32 x 3/4 x 16 ga c-z, 2 per coupling

1шт.

17

527132R1

BUSHING,19.06mm ID x 22.21mm OD x 25.4mm L

hopper bracket, 2 per bracket

1шт.

18

541320R1

BOLT,L, 5/16" - 18 x 1.72"

L-BOLT, hopper bracket, 1 per bracket

1шт.

134238R1

WASHER

11/32 x 1 x 16 ga c-z

1шт.

12235R1

1/8" x 5/8" 1/8" x 5/8"

1шт.

19

129-419

WING NUT,5/16"-18

NUT, hopper hold down wing, 1 per L-bolt

1шт.

20

541678R1

GEAR

PINION, bevel 10-t, 1 per row

1шт.

21996R1

LOCK PIN,1/4" x 1 3/8", Slotted

Pin, 1/4" x 1 3/8", Slotted

1шт.

467750R1

WASHER

25/32 x 1-1/2 x 11 ga c-z, 1 per row or as required for proper gear mesh

1шт.

22190R1

WASHER

25/32 x 1-1/2 x 22 ga c-z, 1 per row or as required for proper gear mesh

1шт.

21

541679R1

BAR, hopper support, 8 for 4 row, 10 for 6 row narrow, 12 for 6 row wide, 14 for 8 row narrow, 16 for 8 row wide

1шт.

21

541680R1

BAR, hopper support LH, first inside row, 6 & 8 row narrow

1шт.

21

541681R1

BAR, hopper support RH, first inside row, 6 & 8 row narrow

1шт.

540939R1

SPACER, 25/32 x 1-1/4 pipe, 1 used w/two support bars, 541679R1

1шт.

464451R1

SPACER, 25/32 x 2 pipe, 2 used w/support bars, 541680R1 & 541681R1

1шт.

189305

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

SCREW, 3/8-16 x 3-1/2 znd hex-hd cap, 2 per row

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 2 per row 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

2 per row 3/8"-16, G5

1шт.

271778

SCREW,Hex, 3/4"-10 x 3 3/4", G5

3/4-10 x 3-3/4 znd hex-hd cap, 2 per row, For bar, 541679R1

1шт.

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

SCREW, 3/4-10 x 3-1/2 znd hex-hd cap, 2 for bars, 541680R1 and 541681R1

1шт.

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

SCREW, 3/4-10 x 4 znd hex-hd cap, 4 for bars, 541680R1 and 541681R1 , Course threads

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4", 2 per row

1шт.

280954

NUT,3/4"-10, G5

2 per row 3/4"-10, G5

1шт.

22

493097R1

TUBE

seed, 1 per row

1шт.

23

541690R1

SUPPORT

ASSY, bearing, 2 for 6 and 8 row wide

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

SCREW, 1/2-13 x 1-3/4 znd hex-hd cap

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

24

541692R1

SUPPORT

drive shaft, 2 for 4 row, 6 row & 8 row wide

1шт.

24

541693R1

SUPPORT, drive shaft, 2 for 8 row narrow

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

413-818

BOLT,Hex, 1/2" - 13 x 1-1/8", Gr 5

SCREW, 1/2-13 x 1-1/8 znd hex-hd cap, 4 for 4 row

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 znd hex-hd cap, 4 for 6 & 8 row

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

607895R1

WASHER

17/32 x 1 x 11 ga c-z, 8 used w/support, 541683R1

1шт.

25

541694R1

PLATE, countershaft brg LH, For 4 row & 6 row narrow

1шт.

25

541695R1

PLATE, countershaft brg RH, For 4 row & 6 row narrow

1шт.

26

541696R1

PLATE, countershaft bearing, 2 for 4 row & 6 row narrow

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 znd hex-hd cap

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

27

541697R1

COUNTERSHAFT, 2 for 4 row and 6 row narrow

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

4шт.

609836R1

WASHER

1-1/32 x 1-3/4 x 16 ga c-z

4шт.

28

513089R1

HUB

BEARING, countershaft, 4 for 4 row and 6 row narrow, 2 for 8 row narrow

1шт.

29

CHAIN, countershaft, Use 35 links of 1 in. extended pitch roller chain form a 10 ft marked, 569088R91, 1 connecting link, 457113R91 & 3 offset links 457114R91

2шт.

30

541700R1

ARM ASSY, chain tightener, 2 for 4 row & 6 row narrow

1шт.

21632R1

COTTER PIN

PIN, 3/16 x 1 c-z self-opening cot., 2 per arm assy

1шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2-13 x 1-1/4 znd sq-nk crg

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

30

484144R91

ARM

ASSY, chain tightener, 2 for 6 row wide & 8 row

1шт.

21632R1

COTTER PIN

PIN, 3/16 x 1 c-z self-opening cot., 2 per arm assy

1шт.

88707

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

31

472344R2

DRIVE SPROCKET

SPROCKET, idler 6T, 8 for 4 & 6 row and 10 for 8 row

1шт.

32

CHAIN, seed drive, Use 51 links of 1 in. extended pitch roller chain from a 10 ft marked, 569088R91 and one connecting link, 457113R91

2шт.

33

545293R1

ROD

SHAFT, wheel pivot outer, 13-1/2 in. long, 2 for 6 row wide & 8 row narrow

1шт.

33

545289R1

SHAFT

wheel pivot outer, 21-3/16 in. long, 2 for 8 row wide

1шт.

609836R1

WASHER

1-1/32 x 1-3/4 x 16 ga c-z

2шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

34

541677R11

BRACKET W/BUSHINGS, hopper, 1 per row

1шт.

35

472121R1

GEAR WHEEL

GEAR, ring 40-T, one per row

1шт.

36

583346R1

BUSHING,25.45mm ID x 28.55mm OD x 25.4mm L

bearing support, 2 per support

1шт.

37

541683R1

SUPPORT ASSY, countershaft bearing LH, 8 row narrow

1шт.

37

541684R1

SUPPORT ASSY, countershaft bearing RH, 8 row narrow

1шт.

38

541688R1

BOLT,U, 5/8" - 11 x 7.20"

U-BOLT, 5/8-11 x 7-5/8 in. long, 2 per support

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 c-z hex., 2 per U-bolt

1шт.

39

520436R91

SUPPORT

TIGHTENER ASSY, chain LH, 2 for 4 & 6 row, 4 for 8 row

1шт.

39

520437R91

SUPPORT

TIGHTENER ASSY, chain RH, 2 for 4 & 6 row, 4 for 8 row

1шт.

21632R1

COTTER PIN

PIN, 3/16 x 1 c-z self-opening cot., 1 per tightener

1шт.

18712R1

BOLT,Short NK, 1/2"-13 x 4", G2

1/2-13 x 4 znd sq-nk crg, 1 per tightener

1шт.

18813R1

BOLT,Hex, 1/2" - 13 x 4", Gr 2

1/2-13 x 4 znd hex-hd mach, 1 per tightener

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 2 per tightener 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, , 2 per tightener 1/2"

1шт.

40

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF, 6 for 4 row & 6 row narrow, 4 for 8 row narrow, and 2 for 6 & 8 row wide 1/8"-27 x .66 lg

1шт.

41

541671R1

SHAFT, inner feed, 13-1/2 in. long, 2 for 8 row narrow

1шт.

41

541675R1

ROD

SHAFT, inner feed, 18-1/2 in. long, 2 for 8 row wide

1шт.

42

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 NF2 str lub, 2 for 6 row wide, 4 for 8 row

1шт.

43

271432

LUBE NIPPLE,1/4" x .47 lg, Drive

FITTING, 1/4 str drive type lub, 1 per support, 541690R1

1шт.

44

493085R1

STUD,1/2" - 13 x 2 23/64"

ring gear, 1 per row

1шт.

45

126098

FITTING

5/16 str drive type lub, 1 per stud

1шт.

46

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 str drive type lub, 2 per hopper bracket

1шт.

47

492942R2

U-BOLT

5/8-11 x 6-3/4 in. long, 2 for 4 row & 6 row narrow

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 c-z hex., 2 per U-bolt

1шт.

48

545290R1

COUPLING

COUPLER, wheel pivot shaft, 11-5/8 in. long, 2 for 8 row wide

1шт.

48

545295R1

COUPLER, wheel pivot shaft LH, 9-5/8 in. long, 8 row narrow

1шт.

48

545622R1

COUPLER, wheel pivot shaft RH, 18-1/2 in. long, 8 row narrow

1шт.

21887R1

HEADED PIN,1/4" x 1 5/8"

PIN, 1/4 x 1-5/8 c-z std-hd, 2 per coupler

1шт.

21628R1

PIN

1/8 x 3/4 c-z self-opening cot., 2 per coupler

1шт.

49

545294R1

SHAFT

wheel pivot inner, 23-13/32 in. long, 2 for 8 row wide

1шт.

49

545296R1

SHAFT, wheel pivot inner, 33-13/16 in. long, 2 for 8 row narrow

1шт.

49

545291R1

SHAFT, wheel pivot inner LH, 10-1/8 in. long, 8 row narrow

1шт.

545292R1

COUPLER, wheel pivot shaft inner LH, 2-1/2 in. long, 8 row narrow

1шт.

21887R1

HEADED PIN,1/4" x 1 5/8"

PIN, 1/4 x 1-5/8 c-z std-hd

1шт.

21628R1

PIN

1/8 x 3/4 c-z self-opening cot.

2шт.
