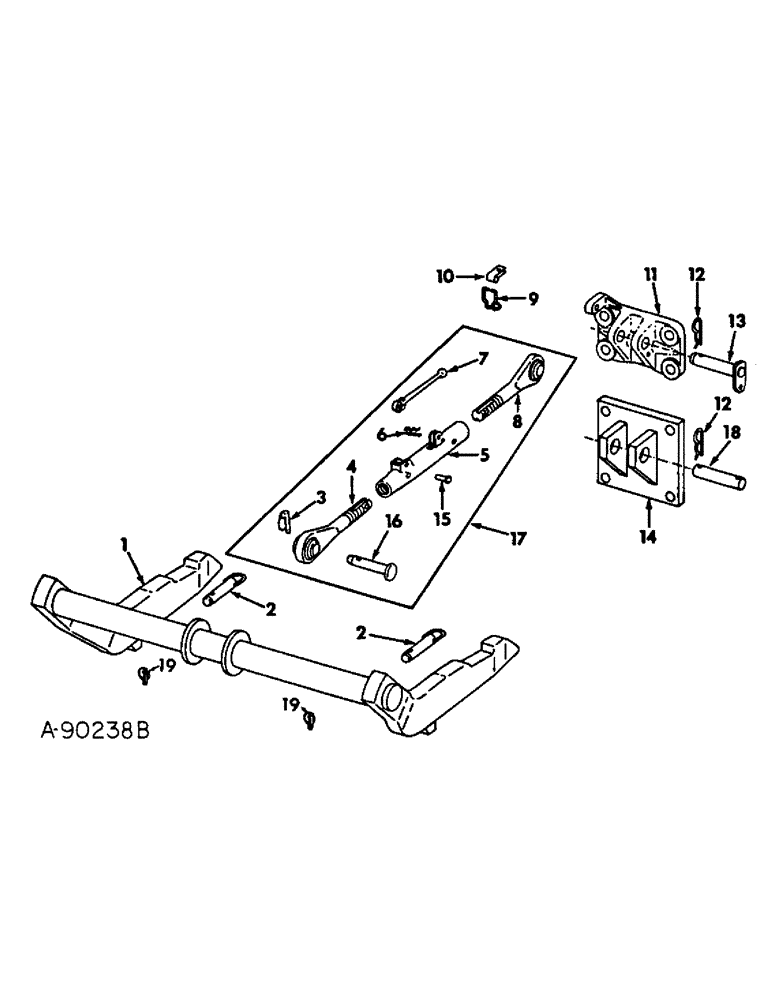

Запчасти Case IH 82-SERIES (B-05) - COUPLING BEAMS COMPLETING PACKAGE, FOR TRACTORS EQUIPPED W/ 2 POINT FAST HITCH

1

483567R91

BEAM

ASSY, coupling, For 656, 706, 756, 806 and 856 tractors

1шт.

21636R1

PIN, 1/4 x 1-1/2 c-z cot

1шт.

2

113225C1

PIN

ASSY, ball, Replaces 517853R21

2шт.

3

517758R1

PIN ASSY.

PIN, implement pin retaining

1шт.

4

393459R12

STRUT

SCREW ASSY, LH thread

1шт.

22061R1

PIN, 1/4 x 1-1/8 c-z hv coiled spring

1шт.

5

400908R1

TURNBUCKLE

upper link

1шт.

6

520175R1

CLIP

PIN, quick attachable cot.

1шт.

7

392204R1

HANDLE

upper link trunbuckle

1шт.

8

393460R12

SCREW

ASSY, RH thread

1шт.

22061R1

PIN, 1/4 x 1-1/8 c-z hv coiled spring

1шт.

9

378403R1

ELECTRICAL WIRE

BRACKET, upper link storage

1шт.

10

378404R1

FASTENER

CLIP

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

SCREW, 3/8-16 x 7/8 c-z hex-hd cap

1шт.

11

389372R41

BRACKET

ASSY, upper link, For 656 tractors

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 c-z hex-hd cap

4шт.

12

520175R1

CLIP

PIN, quick attachable cot.

1шт.

13

382210R11

PIN

upper link, For 656 tractors

1шт.

21636R1

PIN, 1/4 x 1-1/2 c-z self-opening cot.

1шт.

14

473168R91

BRACKET

ASSY, For 656, 706, 756, 806 and 856 tractors

1шт.

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 c-z hex-hd cap

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

15

22634R1

PIN,3/8" x 1 3/4"

3/8 x 1-3/4 c-z std-hd

1шт.

12235R1

1/8" x 5/8" 1/8" x 5/8"

1шт.

16

374132R1

PIN

upper link implement

1шт.

17

400907R92

LINK

ASSY, upper

1шт.

18

473171R1

PIN

1шт.

21636R1

PIN, 1/4 x 1-1/2 c-z self-opening cot.

1шт.

19

373025R11

PIN ASSY, quick attachable cotter, For 706, 756, 806, 856, 1206 and 1256 tractors

2шт.
