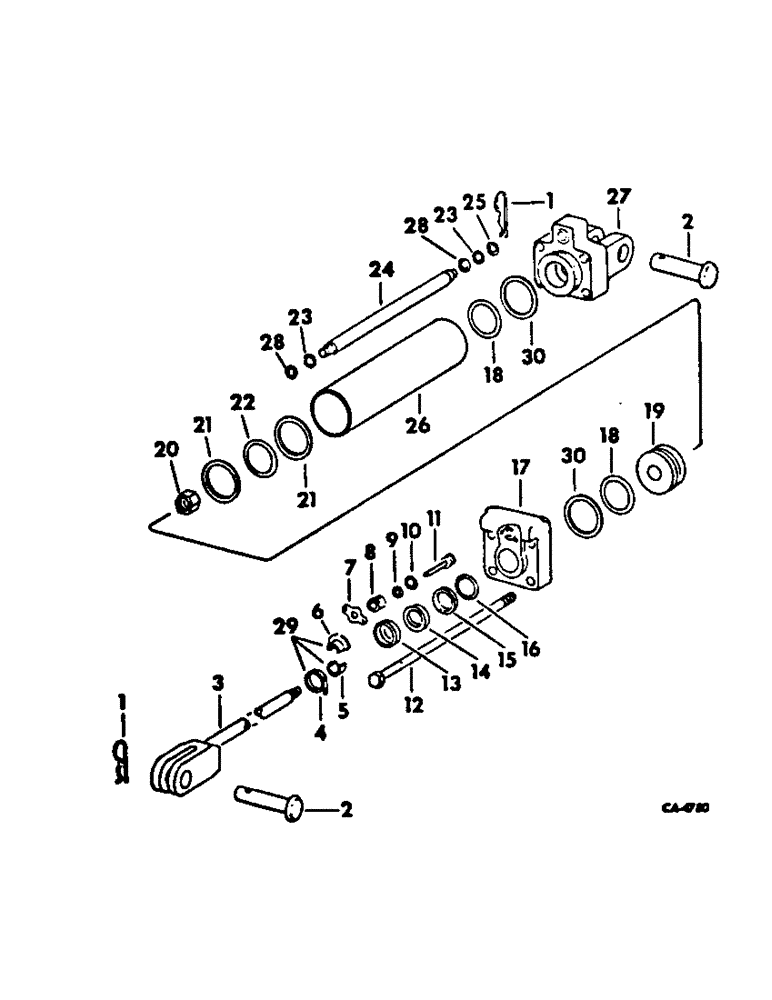

Запчасти Case IH 82-SERIES (B-48) - HYDRAULIC CYLINDER 3-1/2 X 8 IN.

1

371292R95

CYLINDER

ASSY, hydraulic

1шт.

2

520175R1

CLIP

PIN, quick attachable cotter

2шт.

3

61571R1

PIN ASSY, cylinder pivot

2шт.

4

60784R3

ROD ASSY, piston, will work for 361005R13

1шт.

5

361085R91

CLAMP

stroke limit collar

1шт.

6

360372R1

COLLAR

stroke

1шт.

7

360010R1

COLLAR, stroke limit flange half

1шт.

8

361009R1

PLATE

limit stop valve retainer

1шт.

179792

BOLT,Hex, 1/4" - 20 x 9/16"

1/4 x 9/16 pln type 5

2шт.

9

361007R11

RETAINER

ASSY, limit stop valve, only serviceable item is o-ring retainer, 404027R1 which will work for 361008R1

1шт.

10

21590R1

O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

3/16 x 5/16 class 6

1шт.

11

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

5/8 x 13/16 class 5

1шт.

12

361006R11

VALVE

ASSY, limit stop

1шт.

13

60783C1

ROD

cylinder tie

4шт.

25-118

NUT,1/2"-20, G5

1/2-NF pln type 5

2шт.

14

354049R1

RETAINER

pistonrod dust seal

1шт.

15

354048R1

WASHER,1.06" ID x 1.5" OD x 0.25" Thk

SEAL, piston rod dust

1шт.

16

383669R1

BACK-UP RING

rod seal back-up

1шт.

17

354047R1

O-RING,0.21" Thk x 1.15" ID, Cl 6

piston rod gland

1шт.

18

60786C91

HEAD

ASSY, cylinder front

1шт.

444687

PLUG,Hex Soc, 1/8"-27

Auto, Pipe Hex Soc, 1/8"-27

2шт.

19

343940R1

O-RING,3.234" ID x 0.139" Width

3-1/4 x 3-1/2 class 6

2шт.

20

361003R1

HEAD

piston

1шт.

21

9412368

NUT

3/4-16 piston rod lock

1шт.

22

375936R1

BACK-UP RING

WASHER, piston head back-up

2шт.

23

378827R1

O-RING,0.21" Thk x 3.1" ID, -338, Cl 6, 90 Duro

3-1/8 x 3-1/2 class 6

1шт.

24

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

9/16 x 3/4 class 6

1шт.

25

371211R2

TUBE,0.573" ID, 0.748" OD, 10.963" Length

cylinder return

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

26

354051R1

BARREL,3.5035" ID, .429" OD, 10.26" Length

TUBE, cylinder

1шт.

27

60782C1

HEAD

cylinder rear

1шт.

28

371218R2

BACK-UP RING,0.594" ID x 0.36" Width

return tube o-ring back-up

2шт.

29

375426R91

COLLAR

ASSY, stroke limit

1шт.

393503R1

THUMB SCREW,5/16" - 24 x 5/8"

thumb

1шт.

30

404015R1

BACK-UP RING

WASHER, back-up

2шт.

363138R94

PACKAGE

cylinder o-ring, Consists of

1шт.

354049R1

RETAINER

1шт.

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

RING

1шт.

378827R1

O-RING,0.21" Thk x 3.1" ID, -338, Cl 6, 90 Duro

RING

1шт.

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

RING

2шт.

354047R1

O-RING,0.21" Thk x 1.15" ID, Cl 6

1шт.

343940R1

O-RING,3.234" ID x 0.139" Width

RING

2шт.

21590R1

O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

RING

1шт.

354048R1

WASHER,1.06" ID x 1.5" OD x 0.25" Thk

SEAL

1шт.

375936R1

BACK-UP RING

WASHER

2шт.

371218R2

BACK-UP RING,0.594" ID x 0.36" Width

2шт.

404015R1

BACK-UP RING

WASHER

2шт.

383669R1

BACK-UP RING

1шт.
