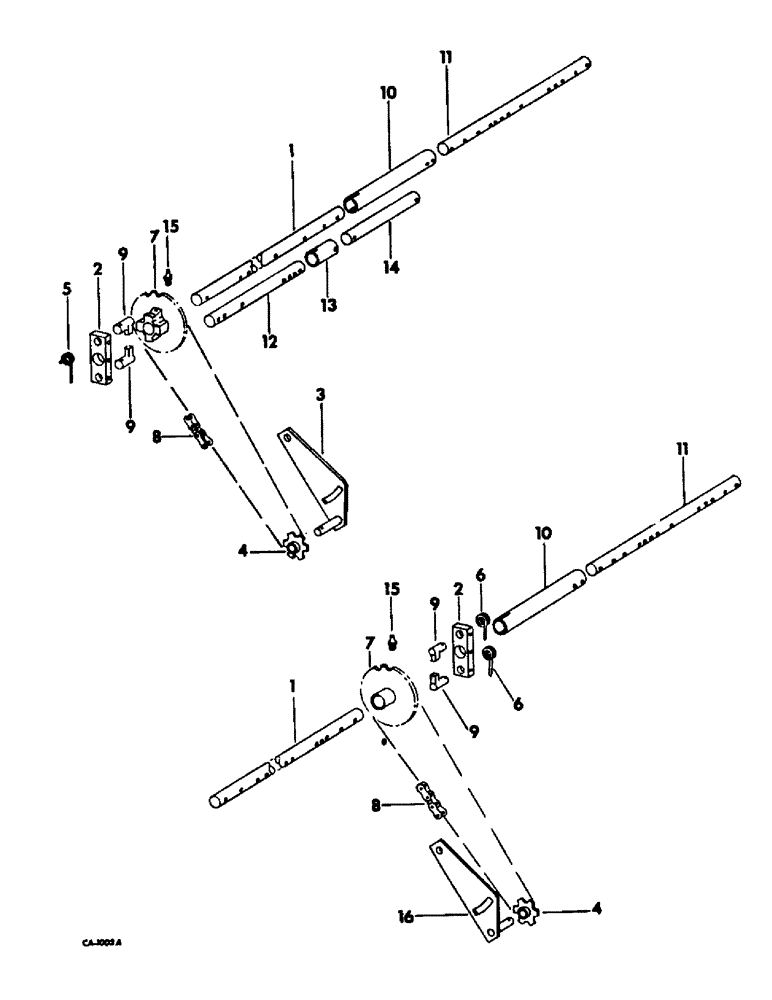

Запчасти Case IH 82-SERIES (B-46) - FOUR WHEEL DRIVE

1

545294R1

SHAFT

wheel pivot, 23.4 in. long

2шт.

13042R1

AXLE PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

21636R1

PIN, 1/4 x 1-1/2 c-z cot.

2шт.

2

541667R1

BAR

PAWL

2шт.

21835R1

HEADED PIN,5/16" x 1 3/4"

PIN, 5/16 x 1-3/4 c-z std-hd

2шт.

21630R1

COTTER PIN

PIN, 1/8 x 1 c-z cot.

2шт.

3

520436R91

SUPPORT

TIGHTENER ASSY, chain LH

1шт.

13068R1

PIN,3/16" x 1"

Split (Cotter), 3/16" x 1"

1шт.

18712R1

BOLT,Short NK, 1/2"-13 x 4", G2

1/2-13 x 4 znd sq-nk crg

1шт.

180194

BOLT,Hex, 1/2" - 13 x 4", Gr 5

SCAREW, 1/2-13 x 4 znd hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

4

472344R2

DRIVE SPROCKET

SPROCKET, 6 teeth idler

2шт.

5

472721R1

SPRING

wheel ratchet LH

2шт.

6

472422R1

AUGER

SPRING, wheel ratchet RH

2шт.

7

541666R1

SPROCKET ASSY.

SPROCKET, 16 teeth

2шт.

8

CHAIN, gauge wheel, Use 75 links of 1 in. extended pitch roller chain from a 10 ft roll marked, 569088R91 and one connecting link, 457113R91

2шт.

9

472329R1

PAWL

drive sprocket

4шт.

137190

PIN,1/8" x 1 1/8"

1/8" x 1-1/8"

4шт.

10

545290R1

COUPLING

COUPLER, wheel pivot shaft, 11.6 in. long

2шт.

21887R1

HEADED PIN,1/4" x 1 5/8"

PIN, 1/4 x 1-5/8 std-hd

4шт.

21628R1

PIN

1/8 x 3/4 cot.

4шт.

11

545289R1

SHAFT

wheel pivot, 21.3 in. long

2шт.

21636R1

PIN, 1/4 x 1-1/2 c-z cot.

2шт.

21801R1

WASHER

9/32 x 3/4 x 16 ga c-z

4шт.

12

545293R1

ROD

SHAFT, wheel pivot, 13.5 in. long, machines w/assist transport wheel attachment or transport attachment

1шт.

13

545292R1

COUPLER, wheel pivot shaft, machines w/assist transport wheel attachment or transport attachment

1шт.

21887R1

HEADED PIN,1/4" x 1 5/8"

PIN, 1/4 x 1-5/8 std-hd

2шт.

21628R1

PIN

1/8 x 3/4 cot.

2шт.

14

545291R1

SHAFT, wheel pivot, 10.1 in. long, machines w/assist transport wheel attachment or transport attachment

1шт.

15

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 str lubrication

2шт.

16

520437R91

SUPPORT

TIGHTENER ASSY, chain RH, machines w/assist transport wheel

1шт.

13068R1

PIN,3/16" x 1"

ATTACHMENT OR TRANSPORT ATTACHMENT

1шт.

18712R1

BOLT,Short NK, 1/2"-13 x 4", G2

1/2-13 x 4 znd sq-nk crg.

1шт.

180194

BOLT,Hex, 1/2" - 13 x 4", Gr 5

SCREW, 1/2-13 x 4 znd hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

WHEEL ASSY, gauge, Refer to gauge wheel listing

2шт.
