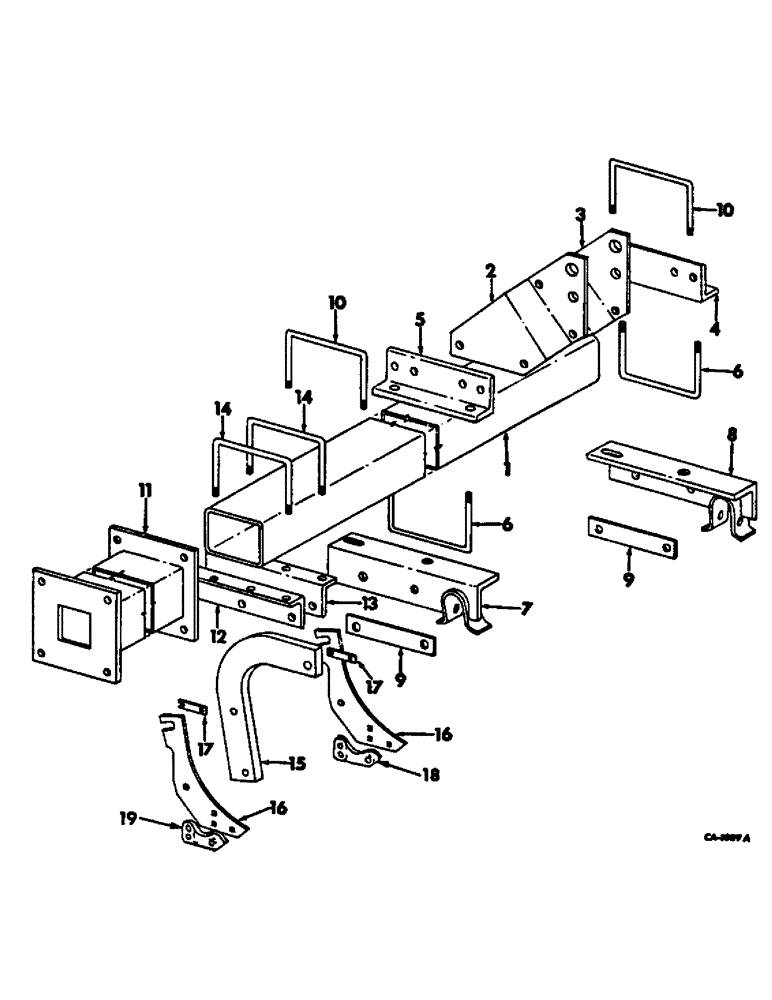

Запчасти Case IH 82-SERIES (B-03) - TOOL BAR FRAME, BEAMS AND ANGLES

1

541610R2

TUBE, toolbar, 160 in. long, For 4 row listers, tool bars and middlebusters

1шт.

1

541609R2

TUBE

toolbar, 190 in. long, For 6 row narrow listers, 5 row tool bars and middlebusters

1шт.

1

541611R3

TUBE ASSY, toolbar, 238 in. long, For 6 row wide and 8 row narrow listers, 6 row wide tool bars and middlebusters

1шт.

1

541613R3

TUBE ASSY, toolbar, 260 in. long, For 8 row wide listers and 7 row tool bars and middlebusters

1шт.

1

541975R3

TUBE ASSY, toolbar, 220 in. long, For 6 row narrow tool bars and middlebusters

1шт.

2

541633R2

SUPPORT

MAST, RH

1шт.

3

541632R2

MAST ASSEMBLY

MAST, LH

1шт.

462425R1

SPACER

mast

2шт.

87403

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.

4

541634R1

ANGLE

mast LH, For 6 row wide and 8 row listers, 6 & 7 row tool bars and middlebusters

1шт.

4

541637R1

ANGLE

mast LH, For 4row & 6 row narrow listers, 4 and 5 row tool bars and middlebusters

1шт.

87403

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.

5

541635R1

ANGLE

mast RH, For 6 row wide and 8 row listers, 6 & 7 row tool bars and middlebusters

1шт.

5

541638R1

ANGLE

mast RH, For 4 row and 6 row narrow listers, 4 and 5 row tool bars and middlebusters

1шт.

87403

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.

6

541636R1

BOLT,U, 7/8" - 9 x 7.64"

U-BOLT, angle, For 6 row wide and 8 row listers, 6 & 7 row tool bars and middlebusters

2шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

4шт.

6

493468R1

BOLT,7/8" - 9 x 6 1/2"

U-BOLT, angle, For 4 row & 6 row narrow listers, 4 and 5 row tool bars and middlebusters

2шт.

23831R1

NUT,7/8"-9, G8

7/8-9 c-z hex. type 4

4шт.

7

541640R1

SUPPORT

ASSY, lower link RH, For 4 row and 6 & 8 row narrow listers, 4 & 5 row tool bars and middlebusters

1шт.

7

541647R1

SUPPORT

ASSY, lower link RH, For 6 and 8 row wide listers, 6 & 7 row tool bars and middlebusters

1шт.

8

541639R1

SUPPORT

ASSY, lower link LH, For 4 row & 6 & 8 row narrow listers, 4 & 5 row tool bars and middlebusters

1шт.

8

541646R1

SUPPORT

ASSY, lower link LH, For 6 and 8 row wide listers, 6 & 7 row tool bars and middlebusters

1шт.

9

541644R1

BAR

CLIP, 5 x 7 bar lower link, For 4 row & 6 row narrow listers, 4 and 5 row tool bars and middlbusters

2шт.

10

541645R1

U-BOLT,U, 1" - 8 x 7.14"

For 4 row & 6 row narrow listers, 4 and 5 row tool bars and middlebusters

2шт.

9849633

NUT,1"-8, G5

4шт.

10

541742R1

BOLT,U, 1" - 8 x 7.84"

U-BOLT, For 6 row wide & 8 row listers, 6 & 7 row tool bars and middlebusters

4шт.

21929R1

NUT,1"-8, G8

1-8 c-z hex. type 4

8шт.

11

541650R3

TUBE ASSY, tool bar extension, 1 used to convert 6 to 7 row or 7 to 8 row, 2 used to convert 6 to 8 row or 7 to 9 row

1шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

280954

NUT,3/4"-10, G5

4шт.

12

541653R1

ANGLE

beam clamp RH, 4 for 4 row, 5 for 6 row narrow, 6 for 6 row wide, 7 for 8 row narrow, 8 for 8 row wide

1шт.

13

541652R1

ANGLE

beam clamp LH, 4 for 4 row, 5 for 6 row narrow, 6 for 6 row wide, 7 for 8 row narrow, 8 for 8 row wide

1шт.

14

541654R1

BOLT,U, 3/4" - 10 x 168.90mm

U-BOLT, 2 per angle, For 4 row & 6 row narrow listers, 4 & 5 row tool bars and middlebusters

1шт.

14

541655R1

BOLT,U, 3/4" - 10 x 192.80mm

U-BOLT, 2 per angle, For 6 row wide and 8 row listers, 6 & 7 row tool bars and middlebusters

1шт.

280954

NUT,3/4"-10, G5

2 per U-bolt 3/4"-10, G5

1шт.

15

480266R1

BEAM

1 per row

1шт.

15

486235R1

BEAM

Hi-Clear, 1 per row

1шт.

271776

BOLT,Hex, 3/4" - 10 x 3 1/4", Gr 5

SCREW, 3/4-10 x 3-1/4 znd hex-hd cap

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.

16

PO28367A

PLATE

break-off side, 2 per row

1шт.

18709R1

BOLT,Short NK, 1/2"-13 x 2 3/4", G2

1/2 x 2-3/4 znd sq-nk crg

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

18826R1

BOLT,Hex, 5/8"-11 x 3", G2

5/8-11 x 3 c-z hex-hd mach

1шт.

18827R1

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 2

5/8-11 x 3-1/2 c-z hex-hd mach

1шт.

17

PO28369

STRIP

SPACER, side plate

4шт.

18709R1

BOLT,Short NK, 1/2"-13 x 2 3/4", G2

1/2 x 2-3/4 znd sq-nk crg

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

271501

SOCKET

NUT, 7/16-14 c-z hex.

2шт.

18

PO28181

BLOCK

LH spacer

1шт.

19

PO28182

ANCHOR

BLOCK, RH spacer

1шт.

PO28185

BLOCK

WASHER, spec on upper bolt

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 c-z hex.

2шт.
