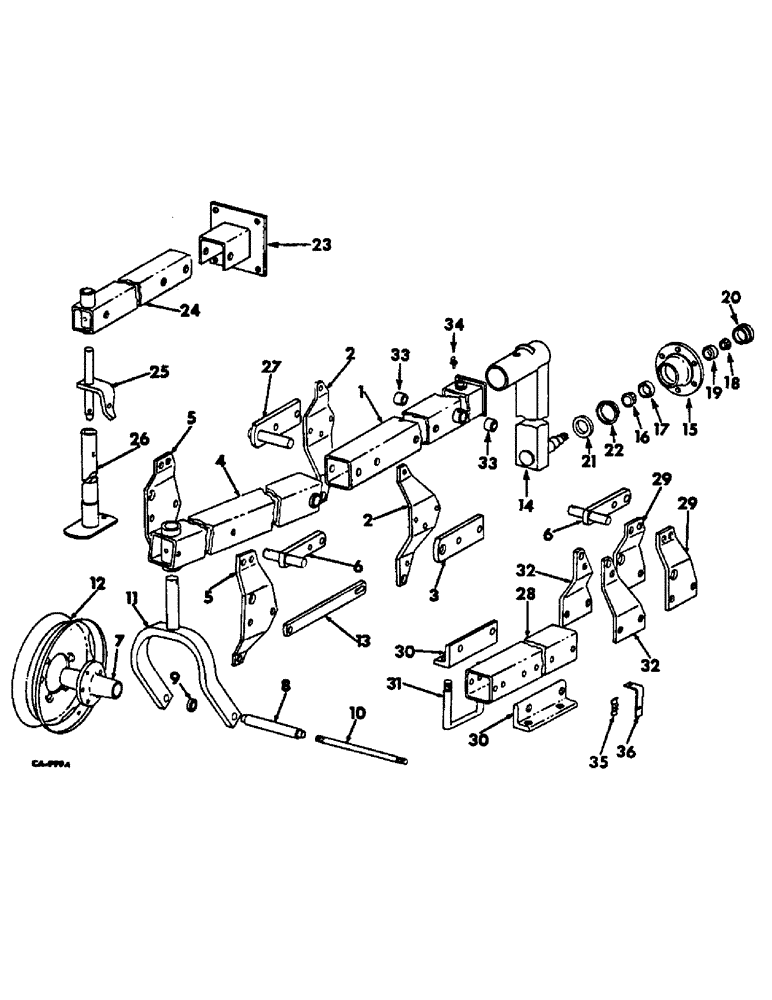

Запчасти Case IH 82-SERIES (B-43[A]) - ASSIST&TRANSPORT WHEELS FOR 4, 6, AND 8 ROW LISTERS OR 4 & 6 ROW TOOL BARS AND MIDDLEBUSTERS

9403178

CROSS, 7/8-14 c-z 37 deg hyd flared tube, For 6 row wide & 8 row listers, or 6, 8 & 9 row tool bars and middlebusters

1шт.

395149R1

QUICK MALE COUPLING

COUPLING ASSY, quick attachable male

2шт.

371292R95

CYLINDER

ASSY, 3-1/2 x 8 double acting hydraulic, 1 per assist wheel, For components see list of parts under details of hydraulic cylinder

1шт.

9410282

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

7/8-14 c-z 37 deg hyd flared tube 90 deg swivel

1шт.

541629R1

HOSE

ASSY, hydraulic, 46 in. long

2шт.

466166R1

HOSE ASSY, hydraulic, 100 in. long, For 4 row & 6 row narrow listers, or 4 & 5 row tool bars and middlebusters

1шт.

541628R1

HOSE ASSY, hydraulic, 125 in. long, 2 for 4 row & 4 for 6 & 8 row

1шт.

541631R1

HOSE ASSY.

HOSE ASSY, hydraulic, 140 in. long, 2 for 7 & 9 row tool bars and middlebusters

1шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, 6 for 4 row and 6 row narrow, 13 for 6 row wide & 8 row lister, or 7 for 4 & 5 row & 13 for 6, 8 & 9 row toolbars & middlebusters

1шт.

9402983

TEE,7/8"-14, 37 Degree

7/8-14 c-z male 37 deg hyd flared tube three way

1шт.

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

UNION, 7/8-14 c-z 37 deg hyd flared tube short swivel

2шт.
