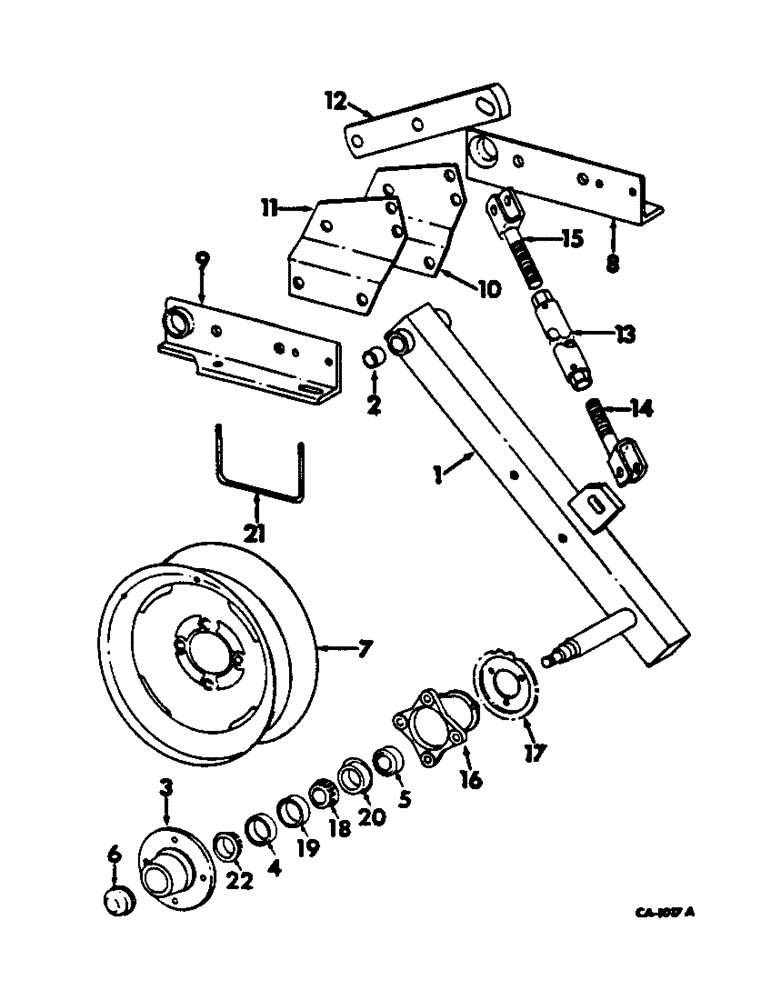

Запчасти Case IH 82-SERIES (B-38) - GAUGE WHEEL

1

541784R1

TUBE

ASSY, wheel LH

1шт.

1

541785R1

TUBE

ASSY, wheel RH

1шт.

219-45

LUBE NIPPLE,65 Degree Elbow, 1/4" NPTF

FITTING, 1/4 65 deg drive

2шт.

69442D

NUT

3/4-16 slt hex. jam

2шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

2шт.

366112R1

WASHER

25/32 x 1-1/4 x 11 ga c-z

2шт.

2

583346R1

BUSHING,25.45mm ID x 28.55mm OD x 25.4mm L

bronze

4шт.

2

480233R1

BUSHING

wheel pipe pivot

4шт.

3

472220R31

HUB W/SET SCREW, wheel

2шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 NF str lub

2шт.

443804

SCREW, 1/4-28 x 1/4 c-z slt-ov-pt hdls set

2шт.

4

651814R1

BEARING CUP

BEARING, wheel hub outer cup

2шт.

5

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

wheel hub oil

2шт.

6

651194R1

CAP

wheel brg hub

2шт.

7

463036R1

WHEEL (STEERING)

WHEEL, 14 in. x 5J

2шт.

387841R91

VALVE

tr 413 w/core & cap

2шт.

7

455169R91

WHEEL

15 in. x 4-1/2 kb

2шт.

387897R91

VALVE STEM

VALVE, tr 415 w/core & cap

2шт.

453770R1

WHEEL NUT

1/2-20 special hex.

8шт.

8

541787R1

ANGLE

ASSY, gauge wheel LH

2шт.

9

541788R1

ANGLE

ASSY, gauge wheel RH

2шт.

10

541793R1

PLATE

gauge wheel LH

2шт.

11

541794R1

PLATE

gauge wheel RH

2шт.

480256R1

SPACER, gauge wheel clamp

2шт.

271783

CAGE,Hex, 3/4" - 10 x 5", Gr 5

SCREW, 3/4-10 x 5 znd hex-hd cap

2шт.

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

6шт.

280954

NUT,3/4"-10, G5

6шт.

12

541795R1

ANCHOR

gauge wheel

2шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

280954

NUT,3/4"-10, G5

4шт.

13

480249R1

TRUSS ROD

TURNBUCKLE

2шт.

443556

FITTING,3/8" - 16 x 2", Full Thd

3/16 str drive lub

4шт.

14

480250R91

ROD

ASSY, LH

2шт.

480255R1

HEADED PIN,1" x 2 3/16"

PIN, 1 x 2-3/16 std-hd

2шт.

21636R1

PIN, 1/4 x 1-1/2 c-z self-opening cot.

2шт.

15

480251R91

ROD

ASSY, RH

2шт.

426899

NUT,Jam, 1"-8, G5

1-8 c-z hex. jam

2шт.

480255R1

HEADED PIN,1" x 2 3/16"

PIN, 1 x 2-3/16 std-hd

2шт.

21636R1

PIN, 1/4 x 1-1/2 c-z self-opening cot.

2шт.

16

480257R1

HUB

sprocket

2шт.

541792R1

BOLT,1/2" - 20 x 2 1/8", Gr 20, Full Thd

hub

8шт.

17

480258R1

SPROCKET ASSY.

SPROCKET, 16 t hub

2шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 znd hex-hd cap

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

120376

NUT,5/16"-18, G5

6шт.

18

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, wheel hub inner cone

2шт.

19

651817R1

BEARING CUP

BEARING, wheel hub inner cup

2шт.

20

472222R1

SLEEVE

oil seal wear

2шт.

21

541654R1

BOLT,U, 3/4" - 10 x 168.90mm

U-BOLT, 3/4, 7-1/4 in. long, For 4 row & 6 row narrow listers, 4 & 5 row tool bars and middlebusters

4шт.

541791R1

CLIP, gauge wheel

4шт.

280954

NUT,3/4"-10, G5

8шт.

21

541655R1

BOLT,U, 3/4" - 10 x 192.80mm

U-BOLT, 3/4, 8-1/4 in. long, For 6 row wide & 8 row listers, 6, 7, 8 & 9 row tool bars and middlebusters

4шт.

280954

NUT,3/4"-10, G5

8шт.

23425R1

WASHER, 25/32 x 1-3/4 x 7 ga c-z

8шт.

22

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING ASSY, wheel hub outer cone

2шт.

22

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.
