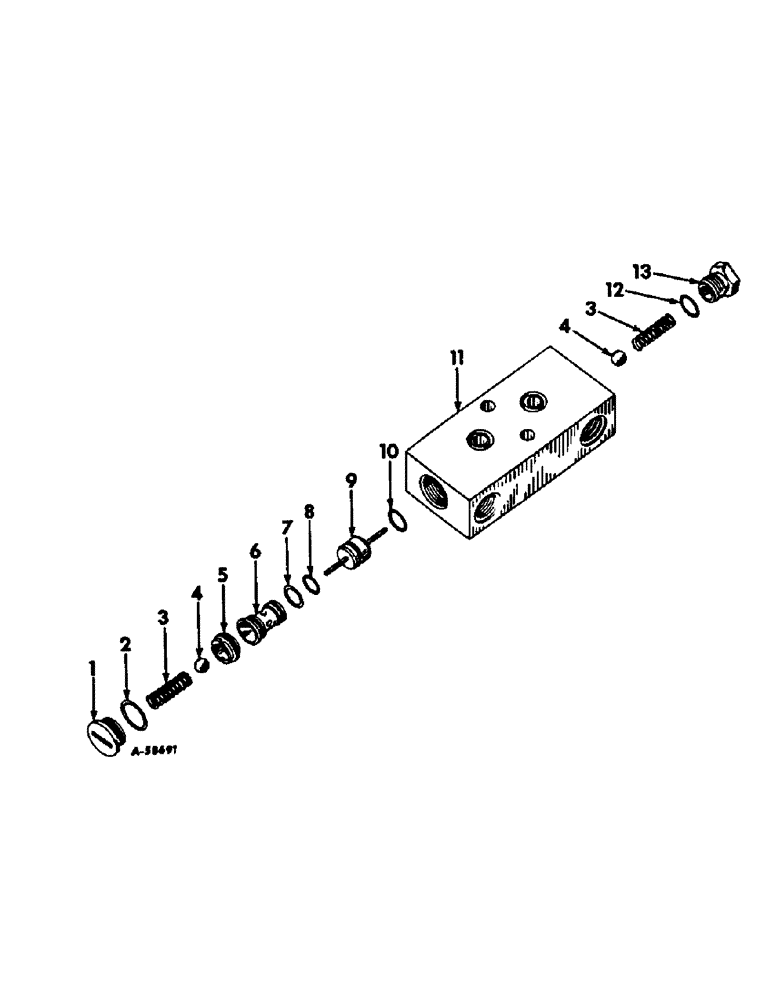

Запчасти Case IH 82-SERIES (B-37) - DOUBLE ACTING CHECK VALVE

530260R91

VALVE

ASSY, alternating check, For 706, 756, 806, 826, 856, 1026, 1206, 1256 & 1456 tractors equipped w/implements employing mast control or hydraulic markers

1шт.

546830R91

VALVE

ASSY, alsternating check, For 544, 656 series tractors LH or no. 1 valve & 766, 966, 1066, 1466 & 1468 tractors having assist wheels employing hydraulic mast control or hydraulic markers

1шт.

1

374088R1

PLUG

check valve

1шт.

2

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

59/64 x 1-1/16 x 7/64, check valve plug

1шт.

3

372649R1

SPRING

check valve

2шт.

4

17016R1

BALL,1/2" Dia

2шт.

5

374172R1

NUT

check valve ball retainer

1шт.

6

374087R21

RETAINER

ASSY, check valve ball

1шт.

7

384943R1

O-RING,0.739" ID x 0.07" Width

-018, 90 Duro, .739" ID x .070" Thk, Ball Retainer, Large

1шт.

8

383024R1

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

11/16 x 13/16 x 1/16, ball retainer small

1шт.

9

530442R2

PISTON ASSY.

PISTON ASSY, alternating check valve

1шт.

10

606271C1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

5/8 x 13/16 x 3/32

1шт.

11

BLOCK ASSY, check valve, Not serviced separately, Order valve assy

1шт.

12

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, check valve plug

1шт.

13

374089R1

PLUG

check valve

1шт.
