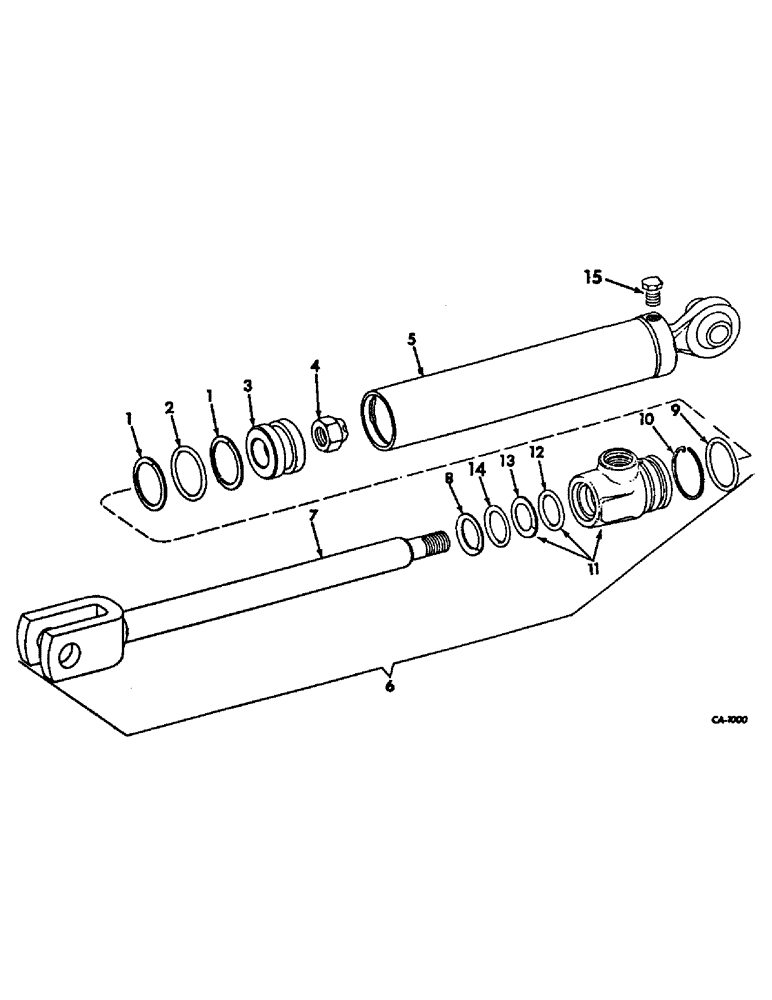

Запчасти Case IH 82-SERIES (B-35) - HYDRAULIC CYLINDER, 3 X 8 IN. DOUBLE ACTING

1

381872R1

WASHER

piston head back-up

2шт.

2

381871R1

O-RING,0.21" Thk x 2.6" ID, -334, Cl 6, 90 Duro

2-5/8 x 3 x 3/16, piston head

1шт.

3

381870R1

PISTON

HEAD, piston

1шт.

4

385020R1

NUT

3/4-16 hex. lock

1шт.

5

530410R1

BODY ASSY, cylinder

1шт.

6

530259R91

CYLINDER ASSY, 3 x 8 in. hydraulic

1шт.

7

531275R1

ROD

ASSY, piston

1шт.

8

354049R1

RETAINER

cylinder head seal

1шт.

9

384250R1

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

2-3/4 x 3 x 1/8, rod end head

1шт.

10

381873R1

RETAINER

RING, retaining

1шт.

11

381805R11

HEAD

ASSY, rod end

1шт.

12

354047R1

O-RING,0.21" Thk x 1.15" ID, Cl 6

hyd cyl gland

1шт.

13

383669R1

BACK-UP RING

hyd cyl gland back-up

1шт.

14

354048R1

WASHER,1.06" ID x 1.5" OD x 0.25" Thk

SEAL, piston rod dust

1шт.

15

530414R1

PLUG ASSY, breather

1шт.
