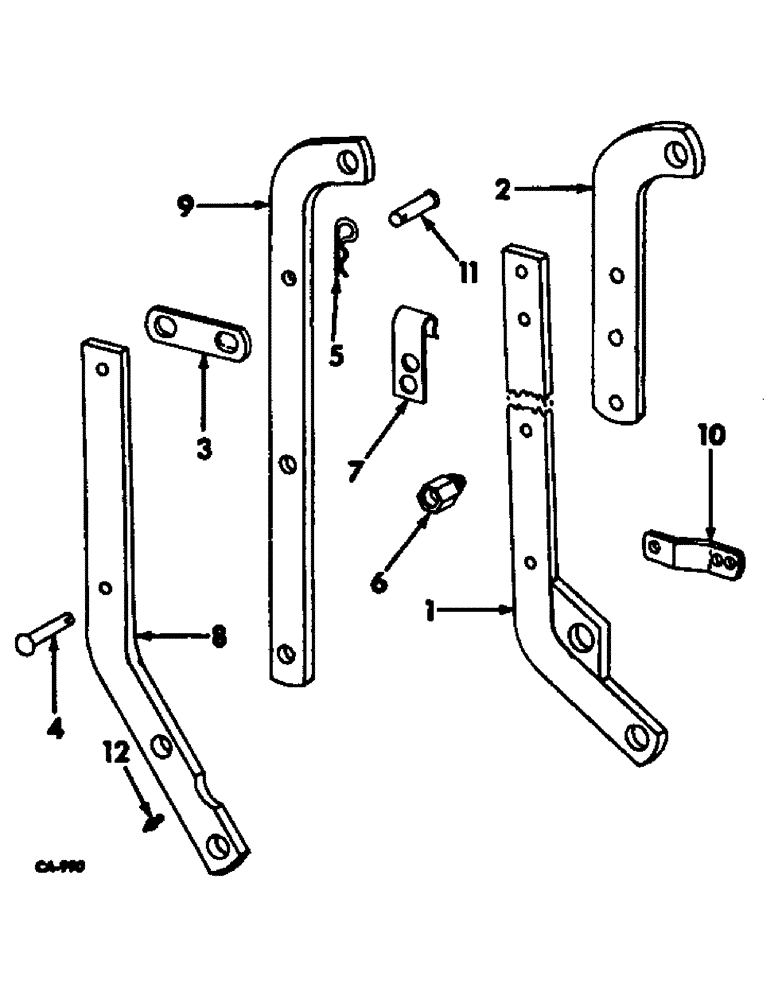

Запчасти Case IH 82-SERIES (B-32) - HYDRAULIC MARKER

1

493953R1

ARM

ASSY, marker lift LH, For 6 row wide & 8 row listers, 6, 7, 8 & 9 row tool bars and middlebusters

1шт.

1

493954R1

ARM ASSY, marker lift RH, For 6 row wide & 8 row listers, 6, 7, 8 & 9 row tool bars and middlebusters

1шт.

480186R2

SPACER

pivot

2шт.

2

493958R1

ARM, cylinder, For 6 row wide & 8 row listers, 6, 7, 8 & 9 row tool bars and middlebusters

2шт.

540008R1

BUSHING

cylinder arm

2шт.

3

540007R1

LINK, safety, For 6 row wide & 8 row listers, 6, 7, 8 & 9 row tool bars and middlebusters

2шт.

180188

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

SCREW, 1/2-13 x 2-3/4 c-z hex-hd cap

2шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

SCREW, 1/2-13 x 2 c-z hex-hd cap

2шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga c-z

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

4

540006R1

PIN, For 6 row wide & 8 row listers, 6, 7, 8 & 9 row tool bars and middlebusters

2шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

2шт.

5

520175R1

CLIP

PIN, 3/16 quick attachable cot.

2шт.

6

493960R91

VALVE

ASSY, drop retarding

2шт.

7

493962R2

CLAMP, hyd hose

4шт.

8

541718R1

ARM

lift, For 4 row & 6 row narrow lister, 4 & 5 row tool bars and middlebsters

2шт.

540008R1

BUSHING

cylinder arm

2шт.

9

541719R1

ANCHOR

cylinder, For 4 row & 6 row narrow lister, 4 & 5 row tool bars and middlebusters

2шт.

10

541720R1

LINK, transport, For 4 row & 6 row narrow listers, 4 & 5 row tool bars and middlebusters

2шт.

180192

BOLT (SPREADER),Hex, 1/2" - 13 x 3 1/2", Gr 5

SCREW, 1/2-13 x 3-1/2 c-z hex-hd cap

2шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga c-z

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

11

541722R1

PIN, pivot, For 4 row & 6 row narrow listers, 4 & 5 row tool bars and middlebusters

2шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

2шт.

12

66584D

FITTING

3/16 str drive type lub

2шт.

493962R2

CLAMP, hydraulic hose, hydraulic equipment for marker

4шт.

395149R1

QUICK MALE COUPLING

COUPLING ASSY, quick attachable male, hydraulic equipment for marker

2шт.

381832R93

CYLINDER BLOCK

CYLINDER ASSY, 2 x 8 single acting hydraulic, For components see list of parts under details of hydraulic cylinder, hydraulic equipment for marker

2шт.

9410282

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

7/8-14 c-z 37 deg hyd flared tube 90 deg swivel, hydraulic equipment for marker

2шт.

541628R1

HOSE ASSY, hydraulic, 125 in. long, 2 for 4 row & 4 for 6 & 8 row, hydraulic equipment for marker

1шт.

541631R1

HOSE ASSY.

HOSE ASSY, hydraulic, 140 in. long, For 6 row narrow listers, 5 row tool bars & middlebusters, hydraulic equipment for marker

2шт.

541630R1

HOSE ASSY, hydraulic, 170 in. long, 2 for 6 row wide & 8 row narrow listers, 6 row tool bars and middlebusters, hydraulic equipment for marker

1шт.

540005R1

HOSE

ASSY, hydraulic, 190 in. long, For 8 row wide listers, 7 & 8 row tool bars & middlebusters, hydraulic equipment for marker

2шт.

542007R1

HYDRAULIC HOSE,0.50" ID x 220.00", SAE 100R1

HOSE ASSY, hydraulic, 220 in. long, 2 for 9 row tool bars and middlebusters, hydraulic equipment for marker

1шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, hydraulic equipment for marker

6шт.

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

UNION, 7/8-14 c-z 37 deg hyd flared tube short swivel, hydraulic equipment for marker

2шт.
