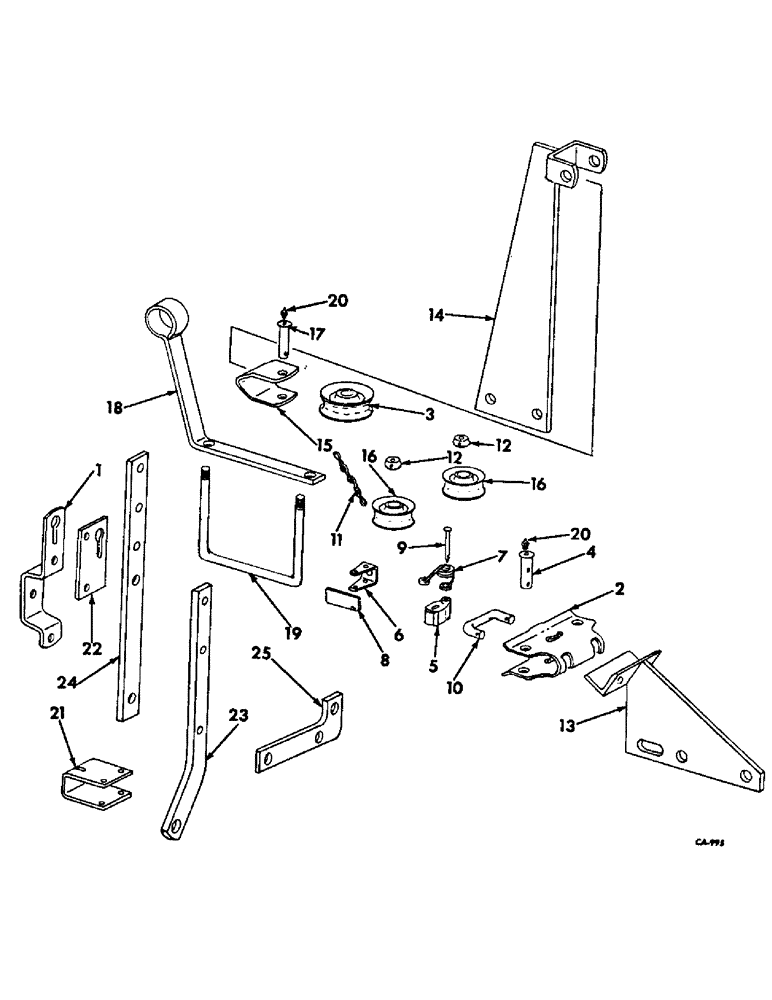

Запчасти Case IH 82-SERIES (B-30) - ALTERNATOR MARKER, 4, 6 AND 8 ROW LISTERS OR 4 AND 6 ROW, TOOLBARS AND MIDDLEBUSTERS

1

541733R1

BRACKET, pulley

2шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 znd hex-hd cap

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

2

487617R2

CASE, idler pulley

1шт.

3

625071R1

PULLEY

SHEAVE, chain roller

2шт.

4

493789R1

PIN, alternator pulley

2шт.

21633R1

PIN, 3/16 x 1-1/4 c-z self-opening cot.

2шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga c-z

2шт.

5

481926R1

HOLDER

marker chain

1шт.

22749R1

PIN,5/16" x 2 1/8"

5/16 x 2-1/8 c-z std-hd

1шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga c-z

1шт.

21628R1

PIN

1/8 x 3/4 c-z self-opening cot

1шт.

6

486980R1

YOKE

CLEVIS, switcher arm

1шт.

21963R1

HEADED PIN,1/4" x 2 1/2"

PIN, 1/4 x 2-1/2 c-z std-hd

1шт.

97865H

WASHER

9/32 x 7/8 x 16 ga c-z

1шт.

21628R1

PIN

1/8 x 3/4 c-z self-opening cot.

1шт.

7

493533R1

SPRING

snubber

1шт.

8

486997R1

ARM

switcher

1шт.

9

486981R1

PIN

marker clevis

1шт.

21628R1

PIN

1/8 x 3/4 c-z self-opening cot.

1шт.

10

484447R1

ROD

idler pulley pivot

1шт.

21471R1

WASHER

21/32 x 1 x 11 ga c-z

4шт.

21634R1

PIN, 1/4 x 1 c-z self-opening cot.

2шт.

11

541734R1

CHAIN, marker, For 6 row wide & 8 row listers, 6 row tool bars & middlebusters

1шт.

11

541735R1

CHAIN, marker, For 4 row & 6 row narrow listers, 4 row tool bars & middlebusters

1шт.

22804R1

HEADED PIN,1/2" x 2 1/2"

PIN, 1/2 x 2-1/2 c-z std-hd

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

12

481925R2

BALL

marker chain button

2шт.

21648R1

LOCK PIN,1/4" x 1 1/4", Slotted

Pin, 1/4" x 1 1/4", Slotted

2шт.

478172R1

PIN, 3/4 x 7/8 std-hd

2шт.

520175R1

CLIP

PIN, 3/16 quick attachable cot.

2шт.

13

541723R1

SUPPORT ASSY, alternator

1шт.

21703R1

SCREW, 3/4-10 x 7-3/4 znd hex-hd cap, For 6 row wide & 8 row listers, 6 row tool bars & middlebusters

2шт.

20919R1

BOLT,Hex, 3/4" - 10 x 9", Gr 5

SCREW, 3/4-10 x 9 znd hex-hd cap, For 4 row & 6 row narrow listers, 4 row tool bars & middlebusters

2шт.

467750R1

WASHER

25/32 x 1-1/2 x 11 ga c-z

1шт.

14

541726R1

BRACKET ASSY, marker lift

1шт.

21275R1

BOLT,Hex, 5/8" - 11 x 6 1/2", Gr 5

SCREW, 5/8-11 x 6-1/2 znd hex-hd cap

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 c-z hex.

2шт.

15

493787R1

CASE, pulley

1шт.

472375R1

PIN

pivot

1шт.

21649R1

LOCK PIN,1/4" x 1 1/2", Slotted

Pin, 1/4" x 1 1/2", Slotted

1шт.

16

493791R1

PULLEY, marker lift

1шт.

17

493788R1

PIN, marker lift

1шт.

21633R1

PIN, 3/16 x 1-1/4 c-z self-opening cot.

2шт.

18

541728R1

GUIDE, chain, For 6 row wide & 8 row listers, 6 row tool bars & middlebusters

2шт.

541729R1

BUSHING

2шт.

19

541657R1

BOLT

U-BOLT, 3/8-16, For 6 row wide & 8 row listers, 6 row tool bars & middlebusters

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

20

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 nfz str lub

3шт.

21

489772R2

CHANNEL, chain bracket LH, For 6 row wide & 8 row listers, 6 row tool bars & middlebusters

1шт.

21

489773R2

CHANNEL, chain bracket RH, For 6 row wide & 8 row listers, 6 row tool bars & middlebusters

1шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

SCREW, 3/8-16 x 2-1/2 znd hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

22

541731R1

BRACKET, lift, For 4 row & 6 row narrow listers, 4 row tool bars & middlebusters

2шт.

180188

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

SCREW, 1/2-13 x 2-3/4 c-z hex-hd cap

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

23

541730R1

ARM, lift, For 4 row & 6 row narrow listers, 4 row tool bars & middlebusters

2шт.

493982R1

BUSHING

2шт.

24

541732R1

SUPPORT, lift pulley, For 4 row & 6 row narrow listers, 4 row tool bars & middlebusters

2шт.

25

489755R1

BRACKET, LH, For 6 row wide & 8 row listers, 6 row tool bars & middlebisters

1шт.

25

489756R1

BRACKET, RH, For 6 row wide & 8 row lister, 6 row tool bars & middlebusters

1шт.

21994R1

HEADED PIN,1/2" x 3 1/4"

PIN, 1/2 x 3-1/4 std-hd

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

180188

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

SCREW, 1/2-13 x 2-3/4 c-z hex-hd cap

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

PO168W

PULLEY, chain outer

2шт.
