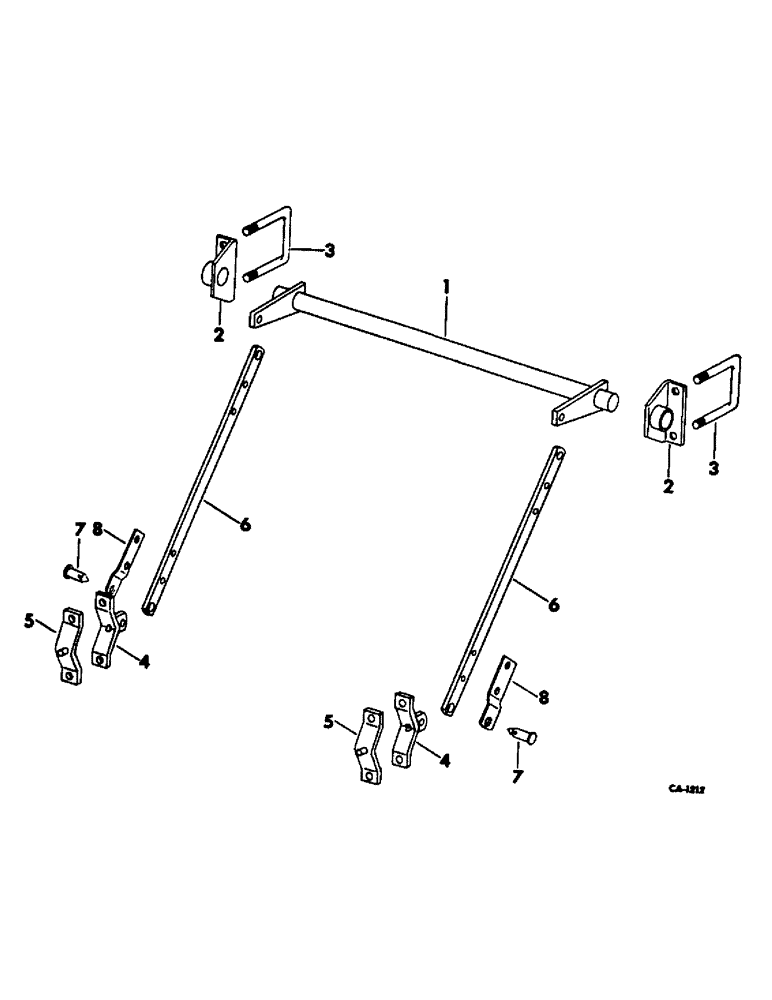

Запчасти Case IH 82-SERIES (B-24) - STABILIZER

1

541977R1

BAR ASSY, torque

1шт.

2

541979R1

ANGLE ASSY, torque bar

2шт.

3

541981R1

U-BOLT

2шт.

22202R1

BOLT, 7/8-14 x 7-1/2 c-z hex-hd mach

4шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

4шт.

4

541982R1

SUPPORT ASSY, stabilizer

2шт.

5

474127R91

CAP ASSY, axle

2шт.

426767

NUT,7/8"-14, G5

7/8-14 c-z hex.

4шт.

6

541984R1

LINK, stabilizer

2шт.

7

541985R1

PIN

stabilizer

4шт.

520175R1

CLIP

PIN, 3/16 quick attachable cot.

4шт.

8

541986R1

STRAP, stabilizer link

4шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

SCREW, 5/8-11 x 1-3/4 znd hex-hd cap

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 c-z hex.

8шт.
