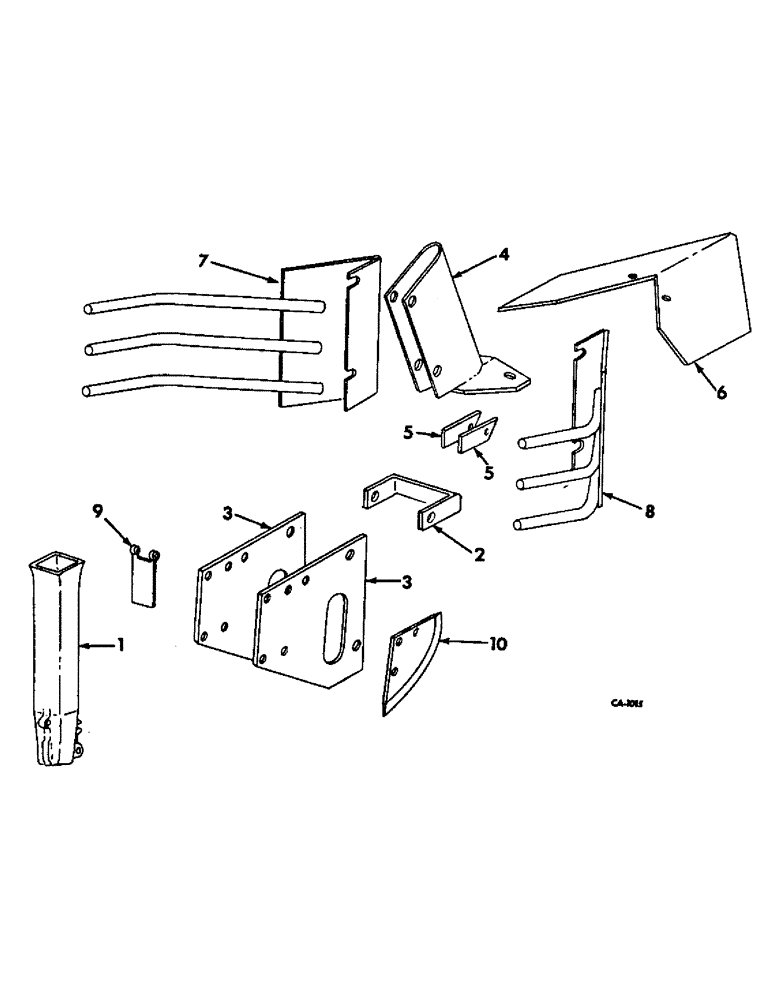

Запчасти Case IH 82-SERIES (B-23) - SIDE PLATES AND SEED TUBES

1

517934R2

TUBE

SPOUT, lower seed, 1 per row

1шт.

PO26190X

HARDWARE

BOLT ASSY, covering frame pivot

1шт.

271501

SOCKET

NUT, 7/16-14 c-z hex.

2шт.

PO2944

NUT

pivot

2шт.

2

656739R1

STOP, friction break-off, 1 per row

1шт.

3

541656R3

PLATE

side, 2 per row

1шт.

180161

SCREW, 7/16-14 x 3-1/4 znd hex-hd cap

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 c-z hex.

2шт.

4

477160R91

BRACKET ASSY. SUPPORT, 1 per row, 4 and 6 row till planting

1шт.

5

477164R1

BAR, 2 per row, 4 and 6 row till planting

1шт.

6

477165R91

SWEEP ASSY, 1 per row

1шт.

19059R1

PLOW BOLT,#3, 1/2" - 13 x 1 1/4", Gr 2

BOLT, 1/2-13 x 1-1/4 znd no. 3 plow

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

7

477168R91

DEFLECTOR ASSY, trash LH, 1 per row, 4 and 6 row till planting

1шт.

8

477169R91

DEFLECTOR ASSY, trash RH, 1 per row, 4 and 6 row till planting

1шт.

18827R1

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 2

5/8-11 x 3-1/2 znd hex-hd cap, thru side plate and beam

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 c-z hex.

1шт.

9

PO16642A

VALVE, heel, 1 per row, 4 and 6 row till planting

1шт.

21951R1

PIN,5/16" x 2 1/4"

5/16 x 2-1/4 c-z std-hd

1шт.

21628R1

PIN

1/8 x 3/4 c-z self-opening cot

1шт.

10

514714R2

FROG

CUTTER, root, 1 per row

1шт.

18795R1

BOLT,Hex, 7/16"-14 x 1 1/4", G2

7/16 x 1-1/4 znd hex-hd mach

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

271501

SOCKET

NUT, 7/16-14 c-z hex.

2шт.
