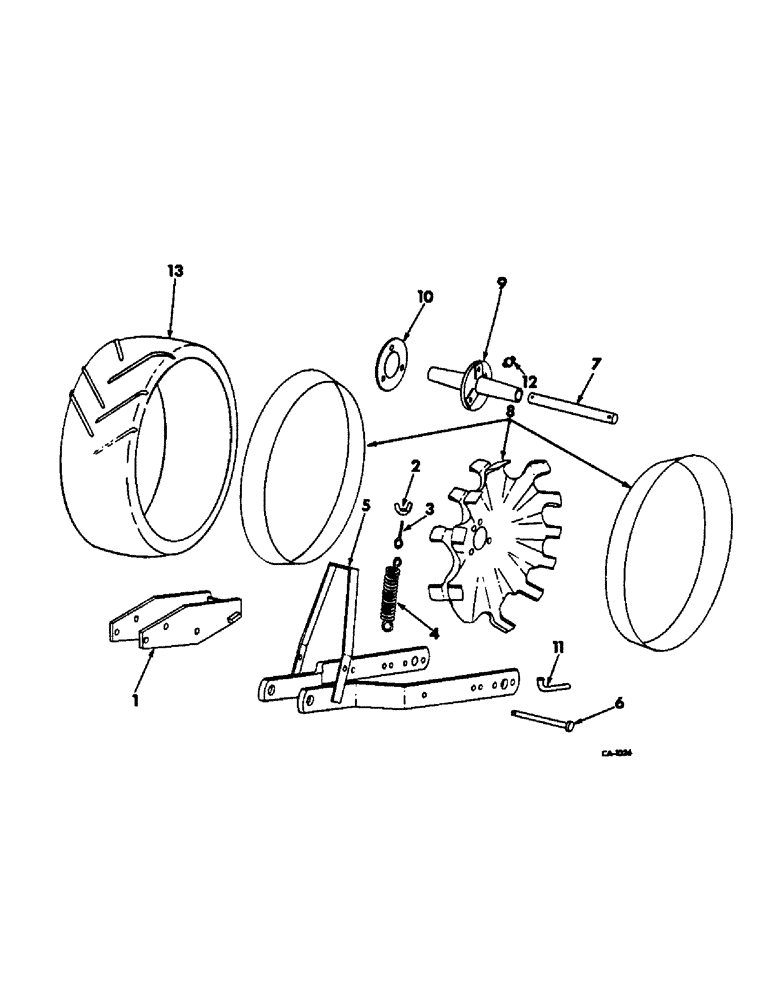

Запчасти Case IH 82-SERIES (B-22) - PRESS WHEEL AND FRAME

1

541705R1

PLATE

ASSY, pivot

1шт.

180163

BOLT,Hex, 7/16" - 14 x 3 3/4", Gr 5

7/16 x 3-3/4 type 5

4шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 c-z hex.

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

2

129-419

WING NUT,5/16"-18

NUT, 5/16-18 wing

1шт.

3

S1070

BOLT

hook

1шт.

4

PO6

SPRING

pressure

1шт.

5

541708R1

FRAME ASSY, press wheel

2шт.

541712R1

BUSHING

press wheel frame

4шт.

18796R1

BOLT,Hex, 7/16"-14 x 1 1/2", G2

7/16 x 1-1/2 type 1

4шт.

21331R1

WASHER

15/32 x 1-1/4 x 16 ga

4шт.

231-1447

NUT,7/16"-14, GB

NUT, LOCK, 7/16"-14, GB

4шт.

6

541713R1

HEADED PIN,1/2" x 5"

PIN, stop

2шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

2шт.

7

461911R1

PIN

AXLE, press wheel

2шт.

8

486609R1

WHEEL

press half, w/steel tire

2шт.

9

472106R1

HUB

press wheel

2шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8-16 x 1-1/4 znd hex-hd mach

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

9

483328R1

DISC

half press wheel 7/16, all except lister w/steel wheel

4шт.

18473R1

SCREW,Hex, 5/16"-18 X 5/8", G2

BOLT, 5/16 x 5/8 znd hex-hd mach

12шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

120376

NUT,5/16"-18, G5

12шт.

10

464466R1

RETAINER

WASHER, press wheel, w/steel tire

1шт.

11

461912R1

ROD

PIN, axle retaining

2шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

2шт.

12

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4 str lub drive

2шт.

13

624478R1

TYRE/TIRE

TIRE, 7 x 16 semi-pneumatic crowned

2шт.

13

477311R1

TYRE/TIRE

TIRE, 7 x 16 semi-pneumatic crowned, traction type

2шт.

13

483118R1

TYRE/TIRE

TIRE, 7 x 16 semi-pneumatic crowned, flat tread

2шт.

13

542240R1

TYRE/TIRE

TIRE, 7 x 16 semi-pneumatic dual rib, traction tread

2шт.
