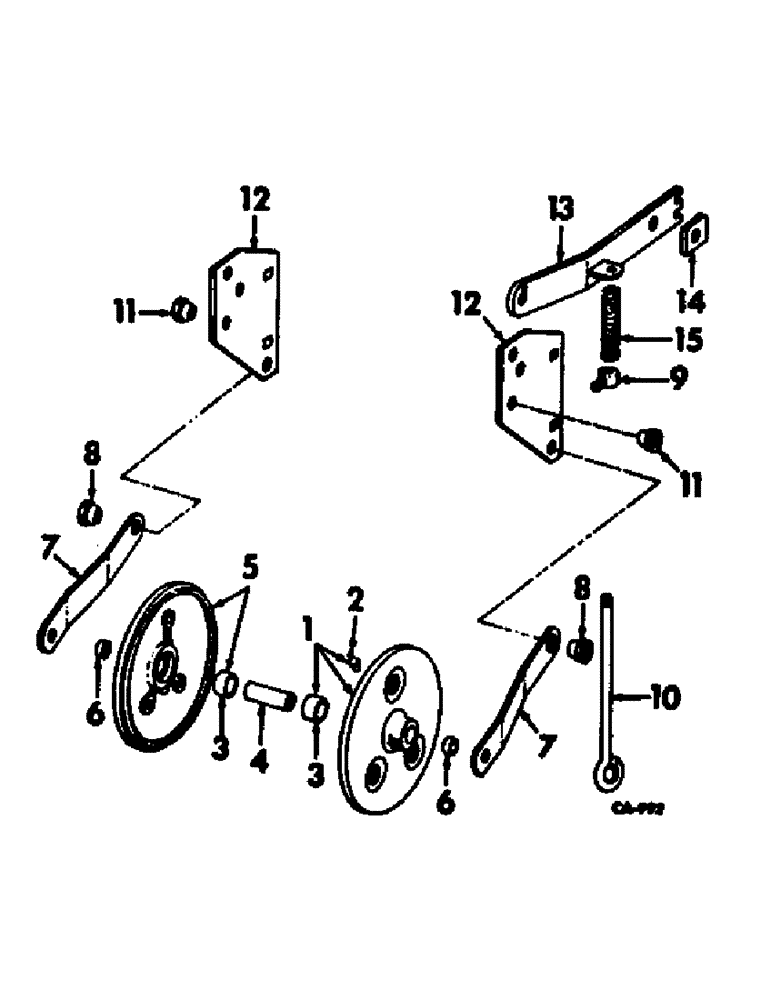

Запчасти Case IH 82-SERIES (B-21) - SEED FIRMING WHEEL, ONE PER ROW

1

524732R11

WHEEL

ASSY, half

1шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4-20 x 3/4 znd hex-hd mach

3шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

3шт.

2

109455

LUBE NIPPLE,5/16" x .56 lg, Drive

FITTING, 5/16 str drive type lub

1шт.

3

524735R1

BUSHING

wheel

2шт.

4

524734R1

BUSHING

wheel

1шт.

5

524733R11

WHEEL ASSY.

WHEEL ASSY, half

1шт.

6

520209R1

SPACER

pressure rod

2шт.

7

520210R1

SUPPORT

RAIL, wheel side

2шт.

18787R1

BOLT,Hex, 3/8"-16 x 4", G2

3/8 x 4 znd hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

178372R1

WASHER

13/32 x 1-1/4 x 16 ga c-z

1шт.

8

PO2944

NUT

side rail pivot

2шт.

131017

WASHER

13/16 x 1-1/2 x .134 c-z

2шт.

18795R1

BOLT,Hex, 7/16"-14 x 1 1/4", G2

7/16-14 x 1-1/4 znd hex-hd mach

2шт.

9

517951R11

WEAR PAD

COLLAR ASSY, pressure rod set

1шт.

105111

FITTING

SCREW, 5/16-18 x 3/8 sq-hd cup-pt set

1шт.

10

519181R1

ROD

pressure

1шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga c-z

1шт.

13042R1

AXLE PIN,1/8" x 3/4"

Pin, Split (Cotter), , self-opening 1/8" x 3/4"

1шт.

11

PO2944

NUT

side rail pivot

2шт.

NLS

NO LONGER SERVICED

13/16 x 1-1/2 x .134 c-z

2шт.

18795R1

BOLT,Hex, 7/16"-14 x 1 1/4", G2

7/16-14 x 1-1/4 znd hex-hd mach

2шт.

12

520213R2

PLATE, attaching

1шт.

180162

SCREW,Hex, 7/16" - 14 x 3 1/2", Gr 5

7/16-14 x 3-1/2 znd hex-hd cap

2шт.

271501

SOCKET

NUT, 7/16-14 c-z hex.

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

3/8-16 x 1-1/2 znd hex-hd mach

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

13

477154R21

ARM

ASSY, pressure rod

1шт.

14

520212R1

SPACER, pressure arm

1шт.

15

PO104

VALVE SPRING

SPRING, pressure

1шт.

622359R1

TYRE/TIRE

TIRE, 1 x 10 zero pressure

1шт.
