Запчасти Case IH 82-SERIES (B-19) - COVERING FRAME AND SEED TUBE, BLACKLAND PLANTER EQUIPMENT

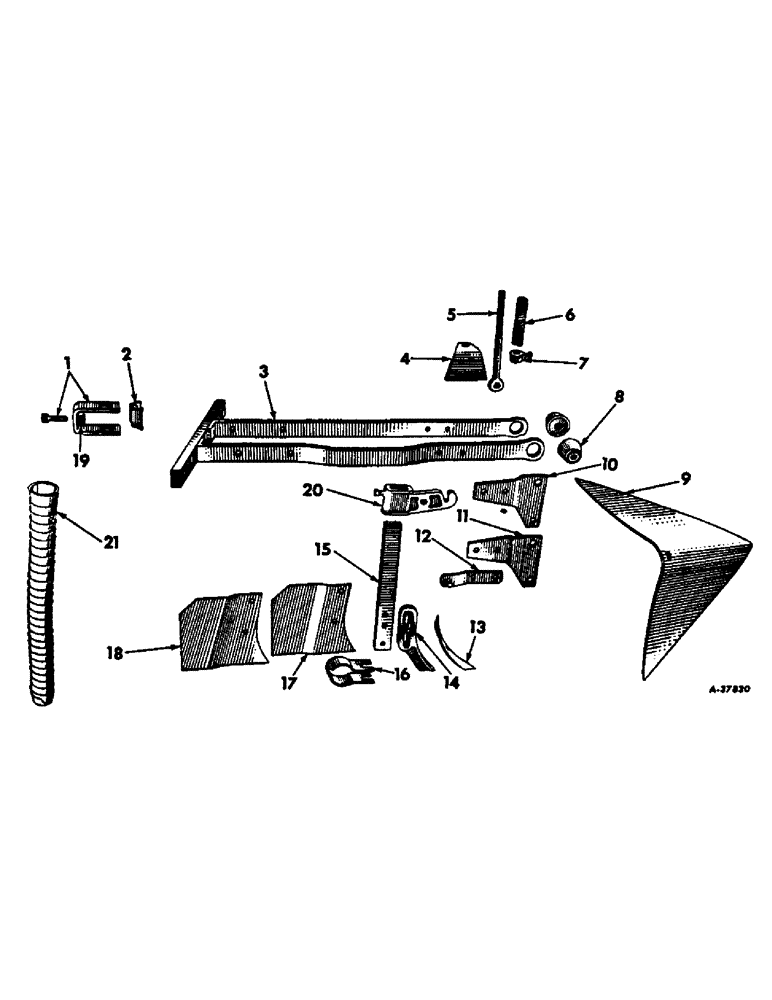

Схема запчастей Case IH 82-SERIES - (B-19) - COVERING FRAME AND SEED TUBE, BLACKLAND PLANTER EQUIPMENT

Артикул

Название

Примечание

Количество

1

PO12856

CLAMP

covering shovel shank

2шт.

22219R1

SET SCREW

5/8-11 x 1-1/2 c-z sq-hd cup-pt set

2шт.

2

PO960

BLOCK

covering standard clamp

2шт.

3

515499R94

FRAME ASSY, covering

1шт.

4

515500R2

BRACKET

pressure spring

2шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8-16 x 1-1/4 c-z hex-hd mach

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

5

516700R1

BOLT,1/2" x 8"

ROD, pressure spring

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga c-z

4шт.

6

PO104

VALVE SPRING

SPRING, covering frame pressure

2шт.

7

5326X

COLLAR

ASSY, set

2шт.

22211R1

SCREW

3/8-16 x 1/2 c-z sq-hd cup-pt set

2шт.

8

PO2051

BUSHING, covering frame rail

2шт.

22035R1

BOLT, 5/8-11 x 7-3/4 c-z hex-hd mach

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 c-z hex.

1шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga c-z

2шт.

9

NOT USED IN THIS APPLICATION

1шт.

10

517927R2

PLATE

LH side

1шт.

11

517928R2

PLATE

RH side

1шт.

19544R1

BOLT,Hex, 5/8"-11 x 3 1/4", G2

5/8-11 x 3-1/4 c-z hex-hd mach

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 c-z hex.

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

12

PO27837

BRACKET

ASSY, spring pressure rod

2шт.

18799R1

BOLT,Hex, 7/16"-14 x 2 1/4", G2

7/16-14 x 2-1/4 c-z hex-hd mach

2шт.

271501

SOCKET

NUT, 7/16-14 c-z hex.

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

21632R1

COTTER PIN

PIN, 3/16 x 1 c-z self-opening cot

2шт.

13

26013B

SHOVEL

double point

1шт.

16237BX

BOLT,Plow, #3 Hd, 3/8" - 16 x 2", Gr 5, W/ Nut & Wshr

ASSY, shovel

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga c-z

1шт.

14

7600

FUSE

BREAK-OFF, opener shovel

1шт.

18798R1

BOLT,Hex, 7/16"-14 x 2", G2

7/16-14 x 2 c-z hex-hd mach

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 c-z hex.

2шт.

15

PO27828A

BAR

STANDARD, furrow opener

1шт.

PO28179A

CLIP

WASHER, heel bolt

1шт.

22013R1

BOLT

5/8-11 x 5-1/4 c-z sq-nk crg

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 c-z hex.

1шт.

16

515919R1

CLAMP

BRACKET, seed tube

1шт.

17

515921R1

SHIELD

LH opener shovel dirt

1шт.

18

515922R1

SHIELD

RH opener shovel dirt

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

1шт.

142745

NUT, WING

NUT, 5/16-18 c-z wing

1шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga c-z

1шт.

19

517033R1

SQUARE NUT

clamp block

2шт.

20

PO3143X

CLAMP

ASSY, standard

1шт.

21689R1

SCREW

1/2-13 x 3/4 c-z sq-hd cup-pt set

2шт.

21

PO27873A

TUBE,1.437" ID x 1.875" OD x 20" L

ribbon seed

1шт.

543007R1

WASHER, ribbon tube retainer

1шт.

543006R1

TUBE

seed, Blackland

1шт.

Выбрано товаров: 52
