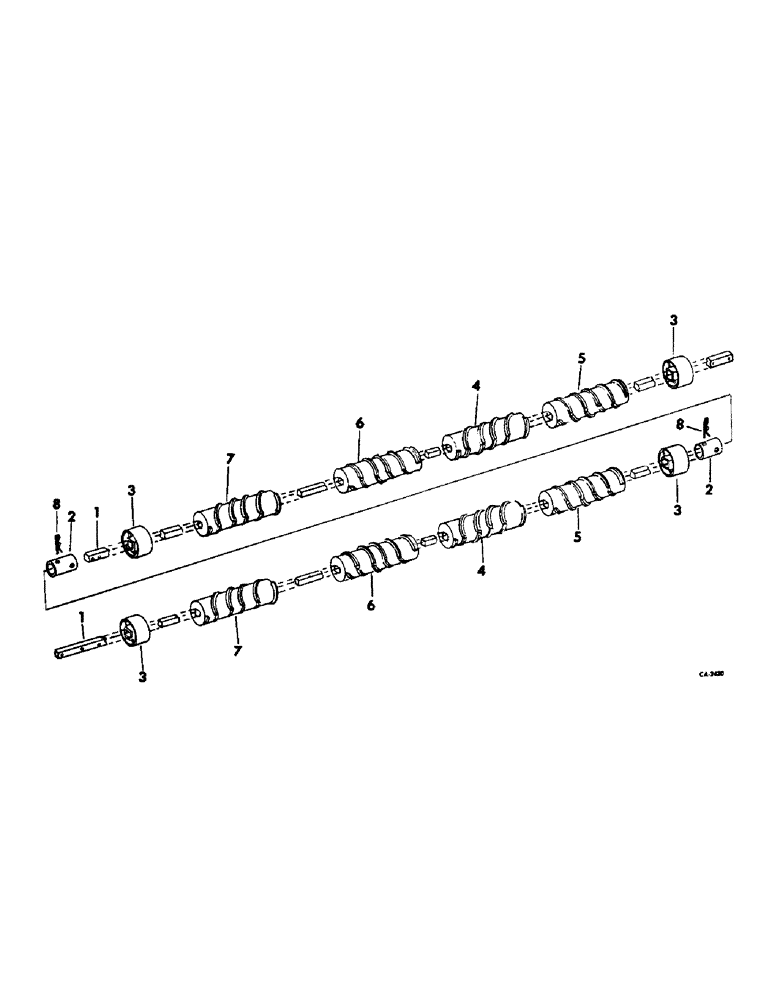

Запчасти Case IH 82-SERIES (B-17) - AUGERS AND RELATED PARTS, FOR USE WITH FERTILIZER UNITS

1

487632R1

BAR

SHAFT, auger feed, 2 for 4 row, 3 for 6 row wide & 4 for 8 row

1шт.

21650R1

LOCK PIN,5/16" x 2 1/2", Slotted

Pin, , 1 per shaft 5/16" x 2 1/2", Slotted

1шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), , 6 per shaft 3/16" x 1 1/4"

1шт.

1

484278R2

BAR

SHAFT, auger feed, 2 for 6 row narrow

1шт.

21650R1

LOCK PIN,5/16" x 2 1/2", Slotted

Pin, 5/16" x 2 1/2", Slotted

2шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

16шт.

2

472414R1

COUPLING

COUPLER, auger shaft, 4-29/32 in. long, 2 for 4 row, 4 for 8 row

1шт.

2

489026R1

COUPLER, auger shaft inner, 15-1/2 in. long, 6 row wide

1шт.

2

489025R1

COUPLER, auger shaft outer, 10-9/16 in. long, 6 row wide

1шт.

2

472415R1

SPACER

COUPLER, auger shaft, 1-19/32 in. long, 2 for 6 row narrow

1шт.

89375H

CLEVIS PIN

PIN, 1/4 x 1-19/32 rod end, 1 per coupling

1шт.

112726

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), , 1 per coupling 1/16" x 1/2"

1шт.

3

472417R1

BEARING

auger, 2 per shaft

1шт.

Ref #3 472417R1 was eliminated on ECN # FEC 94403 in 1974 per service bulletin S 2968. The auger shaft was lengthened to take up the as cast bearing space.

1шт.

4

472419R1

AUGER

low rate RH inner, 2 for 4 row & 6 row narrow, 3 for 6 row wide, 4 for 8 row

1шт.

4

472423R1

AUGER

high rate RH inner, 2 for 4 row & 6 row narrow, 3 for 6 row wide, 4 for 8 row

1шт.

4

472425R1

AUGER

extra high rate RH inner, 2 for 4 row & 6 row narrow, 3 for 6 row wide, 4 for 8 row

1шт.

4

480152R1

AUGER

low rate RH inner short center, 2 for 6 row narrow

1шт.

4

480107R1

AUGER

high rate RH inner short center, 2 for 6 row narrow

1шт.

4

487033R1

AUGER

extra high rate RH inner short center, 2 for 6 row narrow

1шт.

466502R1

SPACER, auger section, 1 per auger

1шт.

5

472421R1

AUGER

low rate RH outer, 2 for 4 row & 6 row narrow, 3 for 6 row wide, 4 for 8 row

1шт.

5

472425R1

AUGER

high rate RH outer, 2 for 4 row & 6 row narrow, 3 for 6 row wide, 4 for 8 row

1шт.

5

483534R1

AUGER

extra high rate RH outer, 2 for 4 row & 6 narrow, 3 for 6 row wide, 4 for 8 row

1шт.

21762R1

WASHER

29/32 x 1-3/8 x 10 ga c-z, (Or as required)

2шт.

6

472418R1

AUGER

low rate LH inner, 2 for 4 row & 6 row narrow, 3 for 6 row wide, 4 for 8 row

1шт.

6

472422R1

AUGER

high rate LH inner, 2 for 4 row & 6 row narrow, 3 for 6 row wide, 4 for 8 row

1шт.

6

472424R1

AUGER

extra high rate LH inner, 2 for 4 row & 6 row narrow, 3 for 6 row wide, 4 for 8 row

1шт.

6

480151R1

AUGER

low rate LH inner short center, 2 for 6 row narrow

1шт.

6

480106R1

AUGER

high rate LH inner short center, 2 for 6 row narrow

1шт.

6

487032R1

AUGER

extra high rate LH inner short center, 2 for 6 row narrow

1шт.

466502R1

SPACER, auger section, 1 per auger

1шт.

7

472420R1

AUGER

low rate LH outer, 2 for 4 row & 6 row narrow, 3 for 6 row wide, 4 for 8 row

1шт.

7

472424R1

AUGER

high rate LH outer, 2 for 4 row & 6 row narrow, 3 for 6 row wide, 4 for 8 row

1шт.

7

483533R1

AUGER

extra high rate LH outer, 2 for 4 row & 6 row narrow, 3 for 6 row wide, 4 for 8 row

1шт.

21762R1

WASHER

29/32 x 1-3/8 x 10 ga c-z, (Or as required)

2шт.

8

520177R1

PIN

3/16 quick attachable cot., 1 per coupling

1шт.
