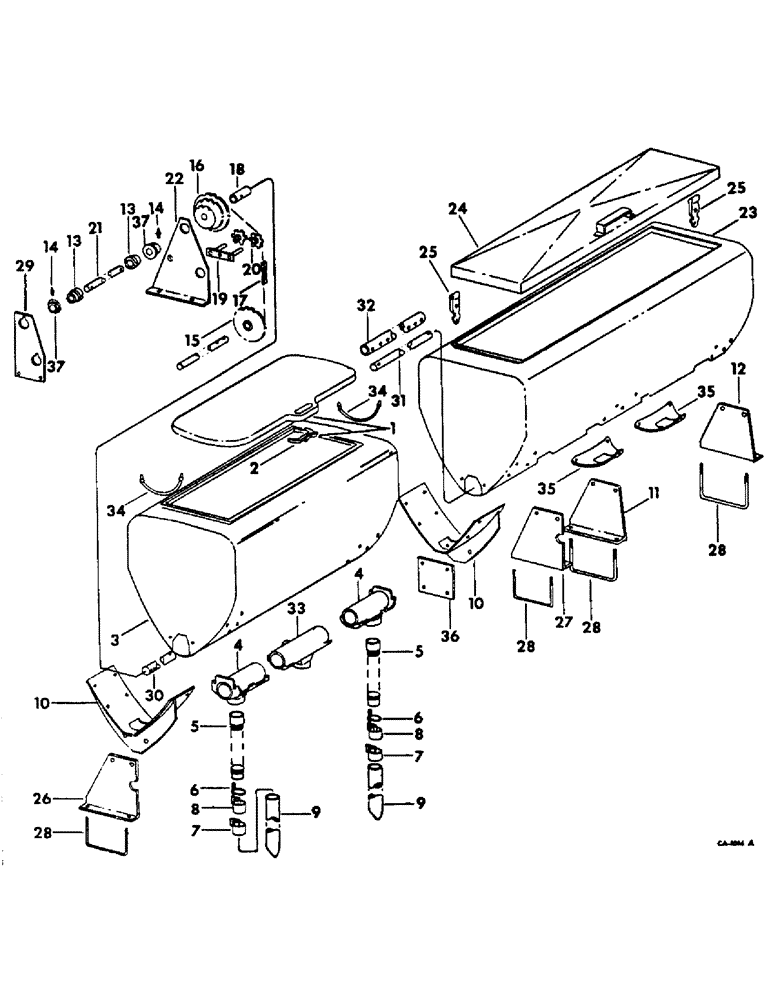

Запчасти Case IH 82-SERIES (B-14) - FERTILIZER UNIT

1

483446R11

COVER

ASSY, hopper, 2 for 4 row, 3 for 6 row wide and 4 for 8 row

1шт.

483450R1

RIVET

latch ret, 2 per cover

1шт.

483451R1

RIVET

lid ret, 2 per cover

1шт.

2

483445R1

LATCH

cover, 2 for 4 row, 3 for 6 row wide and 4 for 8 row

1шт.

3

541592R1

HOPPER

ASSY, fiberglass, 2 for 4 row, 3 for 6 row wide and 4 for 8 row

1шт.

4

483441R2

HOUSING

auger feed, 4 for 4 row & 6 row narrow, 6 for 6 row wide & 8 for 8 row

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, , 4 per housing Short NK, 5/16"-18 x 1", G2, Full Thd

1шт.

120376

NUT,5/16"-18, G5

4 per housing 5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 4 per housing 5/16"

1шт.

134238R1

WASHER

11/32 x 1 x 16 ga c-z, 4 per housing

1шт.

5

492854R91

KIT

HOSE PACKAGE, 70 corrugations, 1 per row

1шт.

860200R1

HOSE CLAMP,#36, 2 1/4", Spring

CLAMP, no. 36 hose, 1 per hose

1шт.

6

526269R1

FASTENER

CLIP, hose lower, 1 per hose

1шт.

19505R1

BOLT,1/4" - 20 x 1", Class 2

1/4-20 x 1 cdp step

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

625533R1

WASHER

9/32 x 1 x 18 ga cdp

1шт.

7

514644R1

CLAMP, short, lower spout, 1 per row

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

1шт.

120910

SCREW, 10-24 x 3/4 c-z slt-rd-hd mach

1шт.

8

514651R1

CLAMP

long, upper spout, 1 per row

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

1шт.

120910

SCREW, 10-24 x 3/4 c-z slt-rd-hd mach

1шт.

9

520769R1

TUBE

SPOUT, 1 per row

1шт.

10

542540R1

SUPPORT ASSY, hopper, Replaces 541822R1, 4 for 4 row, 6 for 6 row, 8 for 8 row

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 8 per support 1/2"-13, G5

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 c-z hex., 2 per support

1шт.

180174

BOLT,Hex, 1/2" - 13 x 1 1/8", Gr 5

SCREW, 1/2-13 x 1-1/8 znd hex-hd cap, 8 per support

1шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 1-1/2 znp hex-hd cap, 2 per support

1шт.

120384

WASHER,1/2"

LOCK, , 8 per support 1/2"

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 2 per support 5/8"

1шт.

21041R1

WASHER

17/32 x 2 x 16 ga c-z, 8 per support

1шт.

11

541828R1

SUPPORT, fertilizer tank LH, 3 for 6 row wide

1шт.

11

541825R1

SUPPORT, fertilizer tank LH inner, 2 for 8 row

1шт.

12

541829R1

SUPPORT, fertilizer tank RH, 3 for 6 row wide

1шт.

12

541826R1

SUPPORT, fertilizer tank RH inner, 2 for 8 row

1шт.

13

483535R1

BUSHING

drive shaft

4шт.

14

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 straight lub

4шт.

15

484138R1

SPROCKET ASSY.

SPROCKET, 17, 8, 12 t

2шт.

22212R1

SCREW

3/8-16 x 5/8 znd sq-hd cup-pt set

4шт.

16

483537R1

SPROCKET ASSY.

SPROCKET, 11, 15, 18 t

2шт.

23668R1

CLEVIS PIN,3/16" x 1 3/4"

PIN, CLEVIS, , Rod end 3/16" x 1 3/4"

2шт.

112726

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

2шт.

17

CHAIN, fertilizer drive, Use 43 links of 1 in. extended pitch roller chain from a 10 ft roll marked, 569088R91 and one connecting link, 457113R91, 2 for 4 row & 6 row narrow

2шт.

18

541839R1

SPACER

COUPLER, fertilizer shaft, 2 for 6 row narrow & 6 row wide

1шт.

18

543436R1

COUPLER, fertilizer shaft, 2 for 4 row

1шт.

520175R1

CLIP

PIN, 3/16 quick attachable cot., 2 for 4 row & 6 row wide

1шт.

18

472415R1

SPACER

COUPLER, fertilizer shaft, 4 for 8 row

1шт.

19

541700R1

TIGHTENER ASSY, chain

2шт.

21632R1

COTTER PIN

PIN, 3/16 x 1 c-z self-opening cot.

4шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2-13 x 1-1/4 znd sq-nk crg

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

20

472344R2

DRIVE SPROCKET

SPROCKET, 6 t idler

4шт.

21

541837R1

SHAFT, fertilizer drive, 2 for 4 row & 6 row narrow

1шт.

21

541838R1

SHAFT, fertilizer drive, 2 for 6 row wide

1шт.

21

541836R1

SHAFT, fertilizer drive, 2 for 8 row

1шт.

137268

KNIFE

3/16 x 2-1/4 c-z cot.

4шт.

22

541842R1

SUPPORT, fertilizer bearing LH, 4 row & 6 row narrow

1шт.

22

541843R1

SUPPORT, fertilizer bearing RH, 4 row & 6 row narrow

1шт.

22

541832R1

SUPPORT, fertilizer bearing LH, 6 row wide & 8 row

1шт.

22

541833R1

SUPPORT, fertilizer bearing RH, 6 row wide & 8 row

1шт.

23

542542R1

HOPPER

ASSY, 850 lb fiberglass, 2 for 6 row narrow

1шт.

24

542529R1

COVER

LID ASSY, hopper, 2 for 6 row narrow

1шт.

25

542534R1

HINGE

lid, 4 for 6 row narrow

1шт.

542535R1

GASKET

hinge bracket

8шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

8шт.

619856R1

WASHER

13/32 x 1 x 16 ga c-z

16шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

542536R1

SPACER

hinge arm

4шт.

542537R1

ROD

hinge

4шт.

23505R1

WASHER

9/32 x 5/8 x 16 ga c-z

8шт.

21628R1

PIN

1/8 x 3/4 c-z self-opening cot

8шт.

26

541830R1

SUPPORT, fertilizer tank LH, 2 for 4 row, 3 for 6 row narrow

1шт.

27

541831R1

SUPPORT, fertilizer tank RH, 2 for 4 row, 3 for 6 row narrow

1шт.

28

541688R1

BOLT,U, 5/8" - 11 x 7.20"

U-BOLT, 5/8-11 x 7-5/8 in. long, 8 for 6 row wide, 6 for 8 row

1шт.

28

492942R2

U-BOLT

5/8-11 x 6-3/4 in. long, 4 for 4 row & 6 for 6 row narrow

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 c-z hex., 2 per U-bolt

1шт.

29

541844R1

PLATE, fertilizer bearing support, 4 row & 6 row narrow

1шт.

29

541834R1

PLATE, fertilizer bearing support, 6 row wide

2шт.

271771

HOUSING,Hex, 3/4" - 10 x 2", Gr 5

SCREW, 3/4-10 x 2 znd hex-hd cap

2шт.

21218R1

BOLT,Hex, 3/4" - 10 x 5 1/4", Gr 5

SCREW, 3/4-10 x 5-1/4 znd hex-hd cap

2шт.

29

541835R1

PLATE, fertilizer bearing support, 8 row

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 znd hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

30

541845R1

SHAFT, wheel pivot, 2 for 4 row & 6 row narrow

1шт.

31

541840R1

COUPLER, fertilizer shaft, 2 for 6 row wide

1шт.

21242R1

HEADED PIN

PIN, 1/4 x 1-3/4 c-z std-hd

2шт.

112726

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

2шт.

32

541841R1

SLEEVE, fertilizer shaft coupler, For 6 row wide

1шт.

21242R1

HEADED PIN

PIN, 1/4 x 1-3/4 c-z std-hd

2шт.

112726

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

2шт.

33

480099R2

HOUSING

auger feed center, 2 for 6 row narrow

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

8шт.

134238R1

WASHER

11/32 x 1 x 16 ga c-z

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

120376

NUT,5/16"-18, G5

8шт.

34

483455R1

STRAP

lid retainer, 2 per cover

1шт.

35

542340R1

COVER

hopper outlet, 4 for 6 row narrow

1шт.

18473R1

SCREW,Hex, 5/16"-18 X 5/8", G2

BOLT, 5/16 x 5/8 znd hex-hd mach

16шт.

134238R1

WASHER

11/32 x 1 x 16 ga c-z

32шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

16шт.

120376

NUT,5/16"-18, G5

16шт.

36

541827R1

PLATE, fertilizer tank support outer, 2 for 8 row

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

280954

NUT,3/4"-10, G5

2шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 znd hex-hd cap

2шт.

87403

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

37

472431R1

COLLAR

BEARING, drive shaft

4шт.
