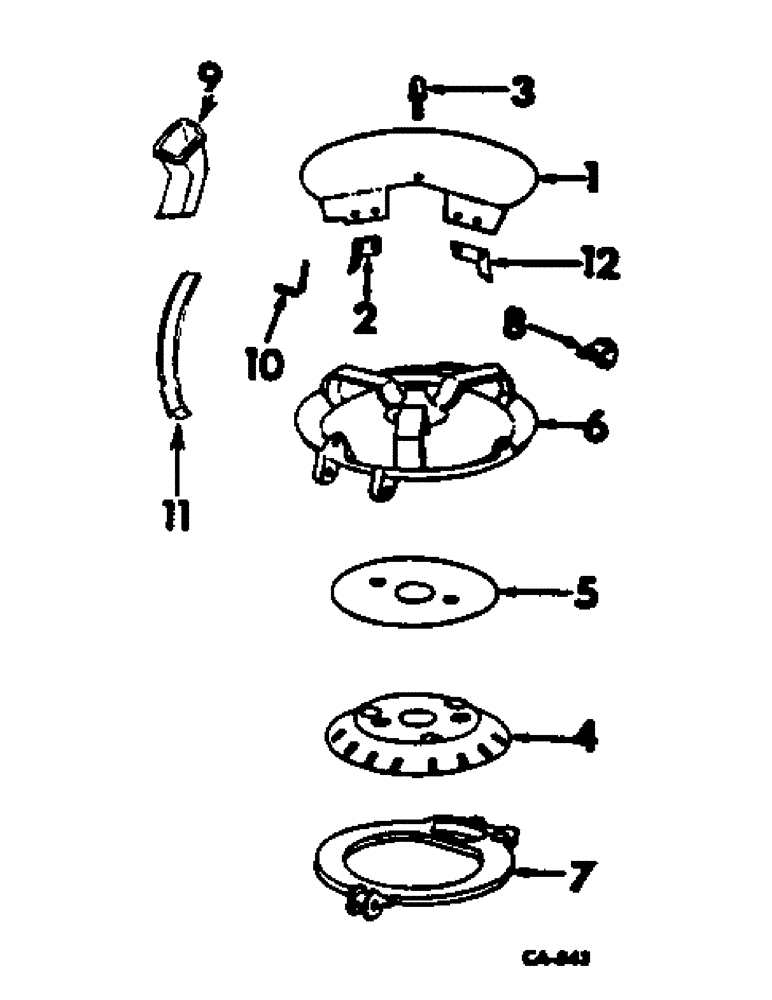

Запчасти Case IH 82-SERIES (B-13) - PEANUT AND BEAN PLANTER EQUIPMENT, ONE PER ROW

1

487064R2

BAFFLE

ASSY, peanut

2шт.

2

487066R1

REINFORCEMENT

peanut cut-off

2шт.

436692

SCREW,Slotted Pan Hd, #8-32 x 5/16"

8/32 x 5/16 c-z mach

4шт.

3

377363R1

THUMB SCREW,1/4" x 3/4"

thumb

2шт.

4

487067R2

LARGE PLATE

PLATE, peanut seed

2шт.

5

487068R1

PLATE

ASSY, peanut baffle

2шт.

5

490621R1

PLATE

agitator

2шт.

6

492921R1

BOTTOM

rotary hopper

2шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

8шт.

611344R1

WASHER

11/32 x 7/8 x 16 ga c-z

8шт.

138538

LOCK WASHER

WASHER, 5/16 c-z int-tooth lock

8шт.

7

492922R1

PLATE

hopper bottom

2шт.

21959R1

HEADED PIN,5/16" x 3 1/2"

PIN, 5/16 x 3-1/2 c-z std-hd

2шт.

648002

KNIFE

1/8" x 3/4"

2шт.

124920

JAM NUT,Jam, 5/16"-24, G5

2шт.

181595

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

SCREW, 5/16-24 x 3/4 c-z hex-hd cap

2шт.

138538

LOCK WASHER

WASHER, 5/16 c-z int-tooth lock

2шт.

8

490272R1

VALVE SPRING

SPRING ASSY, bottom plate retainer

2шт.

9

NOT USED IN THIS APPLICATION

1шт.

10

490622R1

SPRING

seed cut-off

2шт.

436692

SCREW,Slotted Pan Hd, #8-32 x 5/16"

8-32 x 5/16 c-z mach

2шт.

11

NOT USED IN THIS APPLICATION

1шт.

12

490620R1

GUIDE

GATE, rotary cone bottom

2шт.

436692

SCREW,Slotted Pan Hd, #8-32 x 5/16"

8-32 x 5/16 c-z mach

4шт.

138530

LOCK WASHER,Int Tooth, #8

WASHER, LOCK, , Terminal Int Tooth, #8

4шт.

120622

NUT,#8-32

4шт.
