Запчасти Case IH 82-SERIES (B-11) - SEED HOPPER WITH BOTTOM, CORN PLANTING

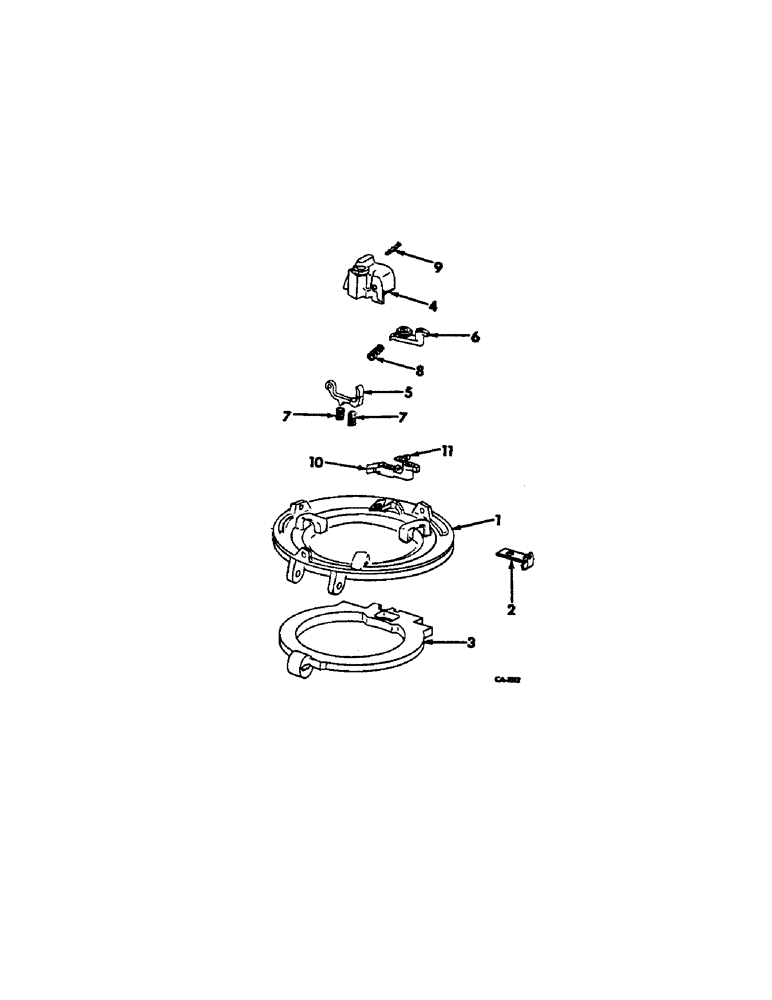

Схема запчастей Case IH 82-SERIES - (B-11) - SEED HOPPER WITH BOTTOM, CORN PLANTING

Артикул

Название

Примечание

Количество

1

488790R91

BOTTOM

W/CORN EQUIPMENT, International

2шт.

120376

NUT,5/16"-18, G5

2шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

8шт.

180089

SPRING

SCREW, 5/16-18 x 2-1/4 znd hex-hd cap

2шт.

138538

LOCK WASHER

WASHER, 5/16 c-z int-tooth lock

10шт.

611344R1

WASHER

11/32 x 7/8 x 16 ga c-z

8шт.

2

490272R1

VALVE SPRING

SPRING ASSY, bottom plate retainer

2шт.

3

484888R1

PLATE ASSY.

PLATE, reversible bottom corn

2шт.

21959R1

HEADED PIN,5/16" x 3 1/2"

PIN, 5/16 x 3-1/2 c-z std-hd

2шт.

648002

KNIFE

1/8" x 3/4"

2шт.

4

484871R91

SERVICE KIT

corn double pawl

2шт.

484883R1

PIN

3/16 x 1 knurled head

2шт.

484882R1

PIN

3/16 x 1-1/2 knurled head

2шт.

22433R1

PIN,3/16" x 1 5/16"

3/16 x 1-5/16 c-z chamfered str

2шт.

5

484875R1

PAWL

corn cutoff

4шт.

6

484885R21

ARM

ASSY, corn roller knocker

2шт.

488808R1

SCREW

no. 10 x 1/2 c-z slt-pan-hd tap.

2шт.

131015

WASHER

3/16 x 7/16 x .038 c-z

2шт.

376308R1

SPRING WASHER

2шт.

7

484881R1

SPRING

cutoff pawl

4шт.

8

542320R1

SPRING

knockout pawl

2шт.

9

484879R1

DOOR

GATE, double pawl cover

2шт.

10

484878R12

ARM

ASSY, small seed knocker

2шт.

11

484880R2

STRIP

small seed knocker arm

2шт.

436694

SCREW,Slotted Pan Hd, #8-32 x 7/16"

8-32 x 7/16 c-z slt-pan-hd mach.

2шт.

138530

LOCK WASHER,Int Tooth, #8

WASHER, LOCK, , Terminal Int Tooth, #8

2шт.

120622

NUT,#8-32

2шт.

Выбрано товаров: 27
