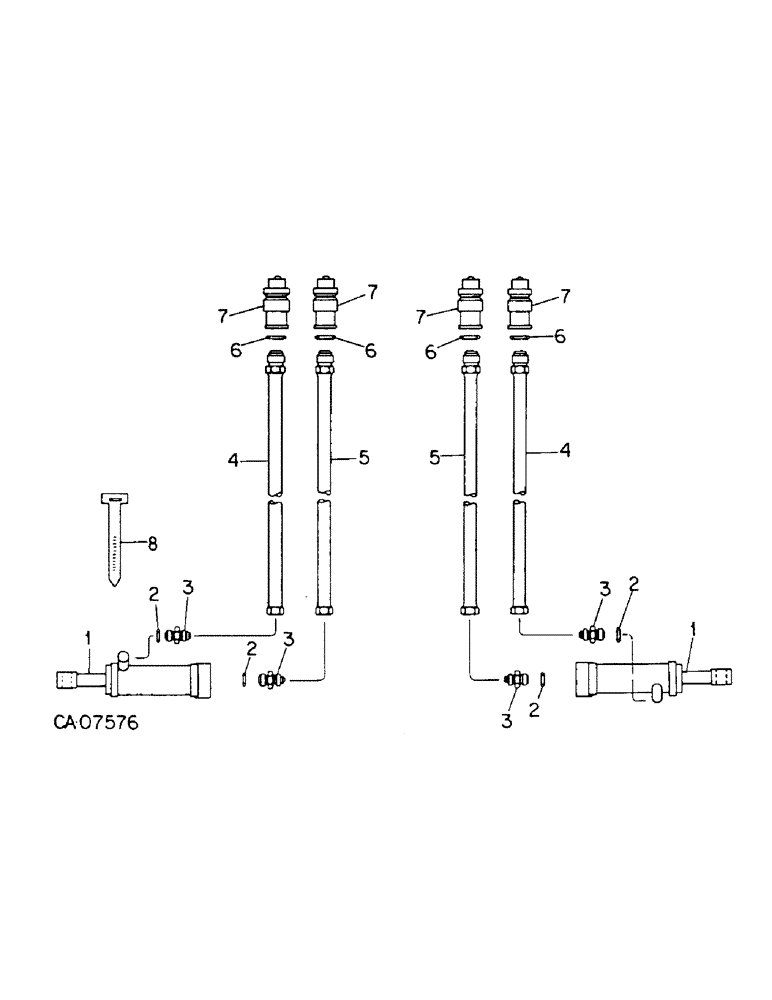

Запчасти Case IH 80 (YB-23) - HYDRAULIC CONNECTIONS FOR CULTIVATORS

1

149863C92

CYLINDER

hyd 3 x 16 in. stroke, use for unit A

2шт.

1

149864C93

CYLINDER

hyd 3-1/2 x 16 in. stroke, use for units B & C

2шт.

2

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6

4шт.

3

149257C1

RESTRICTOR

4шт.

4

1250728C1

HYDRAULIC HOSE

HOSE, hyd 88 in., 2 used for unit A

1шт.

4

1250699C1

HYDRAULIC HOSE,9.65 mm x 2700.00 mm, SAE 100R7

Use for unit B

1шт.

4

149528C1

HYDRAULIC HOSE,9.52 mm ID x 2962.00 mm, SAE 100R7

- 2 used for unit C 9.52 mm ID x 2962.00 mm, SAE 100R7

1шт.

5

1250729C1

HYDRAULIC HOSE

HOSE, hyd 66 in., 2 used for unit A

1шт.

5

1250698C1

HOSE

hyd 86 in., use for unit B

1шт.

5

1250697C1

HYDRAULIC HOSE

HOSE, hyd 96 in., used for unit C

1шт.

6

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6

4шт.

7

544787R91

COUPLING, BREAK AWAY

COUPLER ASSY, male

4шт.

8

141465C1

STRAP, plastic tie

2шт.
