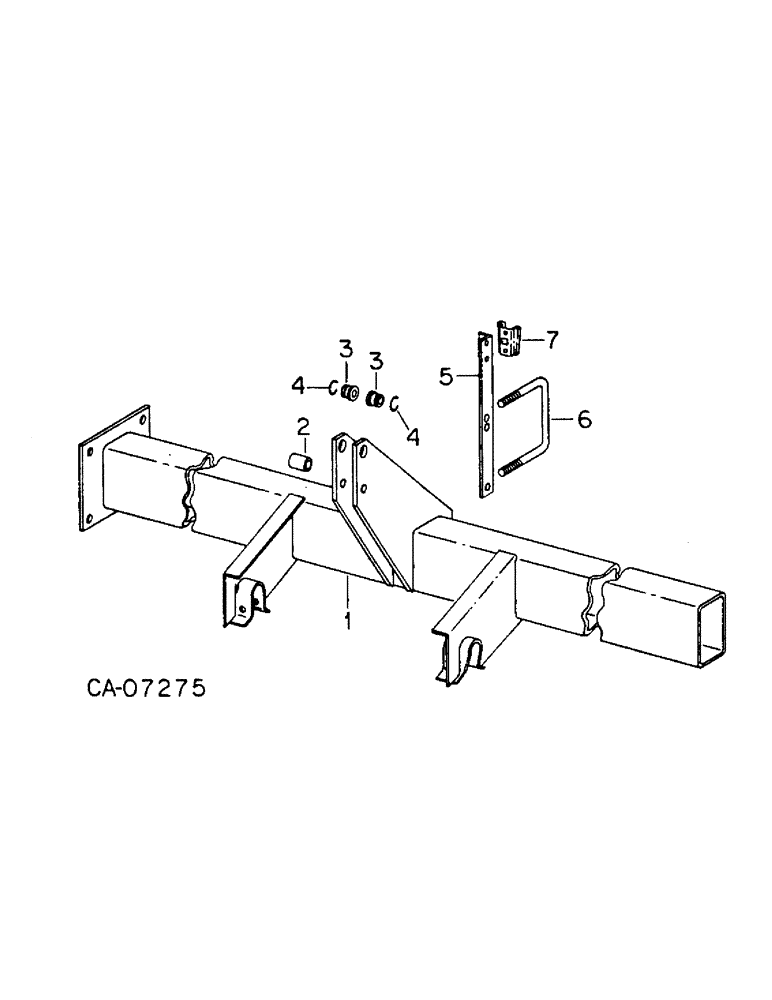

Запчасти Case IH 80 (YB-13) - RIGID FRAME 800 PLANTER

1

137206C1

TUBE

ASSY, frame, Use for unit A

1шт.

1

134212C1

FRAME

TUBE ASSY, frame, Use for unit B

1шт.

2

462425R1

SPACER

mast

1шт.

271779

STRIP,Hex, 3/4" - 10 x 4", Gr 5

3/4 x 4 type 5

1шт.

280954

NUT,3/4"-10, G5

1шт.

3

541781R1

BUSHING

mast

2шт.

4

152450R1

SNAP RING,#125, Ext

RING, 1156 ext ret

2шт.

5

58316C1

SUPPORT

safety light

1шт.

6

492942R2

U-BOLT

Use for unit A

1шт.

6

493837R2

U-BOLT

Use for unit B

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

2шт.

7

398976R1

BRACKET

SOCKET, SMV emblem

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 crg type 1

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

2шт.
