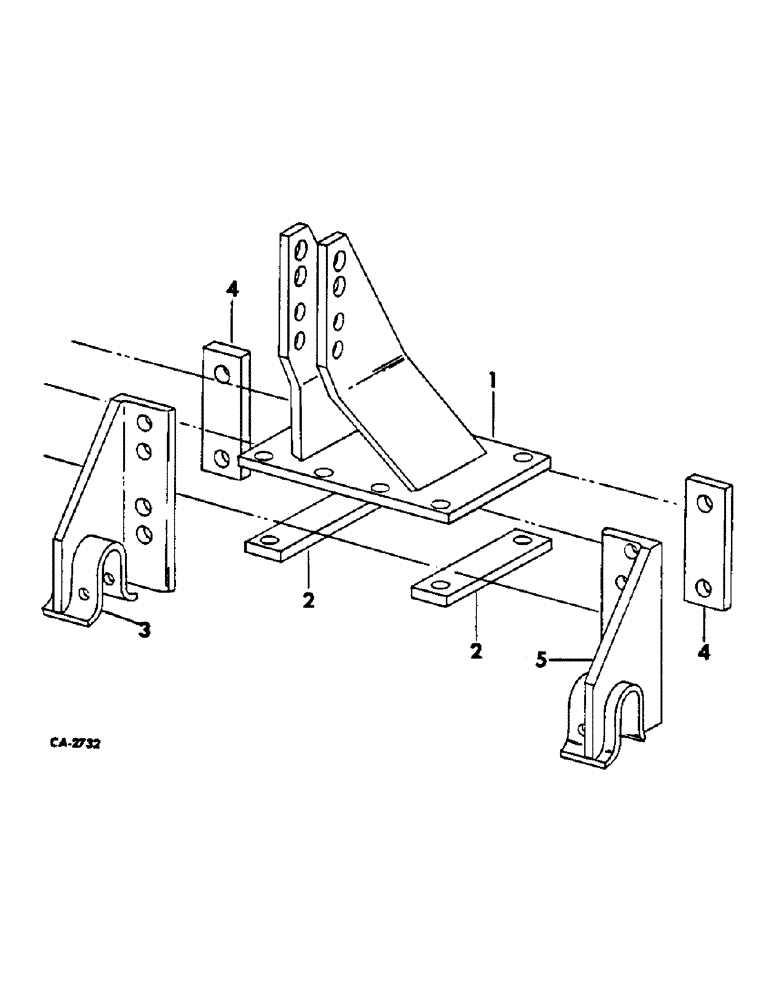

Запчасти Case IH 80 (A-06) - TOOL BAR SUPPORTS AND CONNECTIONS

1

486225R1

SUPPORT ASSY, upper mast

1шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

4шт.

20102R1

SCREW,Hex, 7/8"-9 x 6 1/2", G5

7/8-9 x 6-1/2 c-z hex-hd cap

4шт.

NLS

NO LONGER SERVICED

7/8"

4шт.

2

480223R1

BAR, mast strap

2шт.

3

486230R1

SUPPORT ASSY, bracket LH

1шт.

217216

NUT

1-14 c-z hex.

2шт.

22207R1

SCREW, 1-14 x 10-1/2 c-z hex-hd cap

2шт.

492-11100

LOCK WASHER,1"

WASHER, LOCK, 1"

2шт.

4

486232R1

BAR, lower link support

2шт.

5

486231R1

SUPPORT ASSY, bracket RH

1шт.

217216

NUT

1-14 c-z hex.

2шт.

22207R1

SCREW, 1-14 x 10-1/2 c-z hex-hd cap

2шт.

492-11100

LOCK WASHER,1"

WASHER, LOCK, 1"

2шт.
