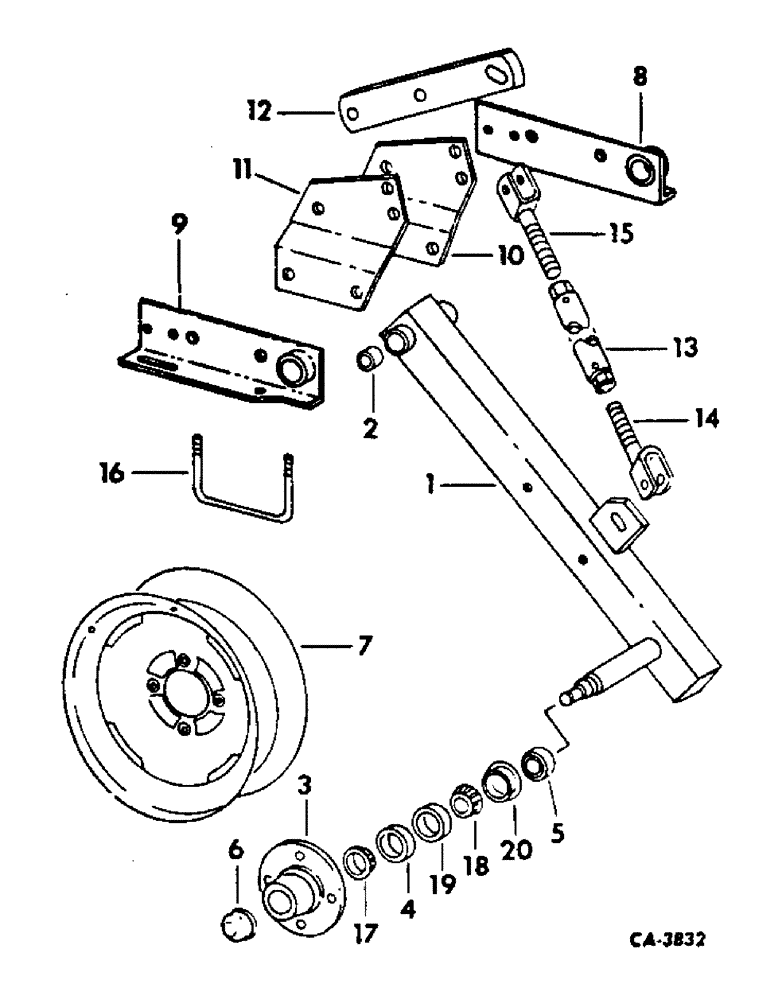

Запчасти Case IH 80 (YB-03) - GAUGE WHEEL

1

541784R1

TUBE

ASSY, wheel LH

1шт.

1

541785R1

TUBE

ASSY, wheel RH

1шт.

219-45

LUBE NIPPLE,65 Degree Elbow, 1/4" NPTF

FITTING, 1/4 hole 65d lub

1шт.

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

1шт.

69442D

NUT

3/4-16 slt hex.

1шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

2

480233R1

BUSHING

wheel pipe pivot

1шт.

2

583346R1

BUSHING,25.45mm ID x 28.55mm OD x 25.4mm L

bronze

2шт.

3

472220R21

HUB

W/SET SCREW, wheel

2шт.

84-4254

SET SCREW,Hex Soc, 1/4"-28 x 1/4"

SCREW, 1/4 NF x 1/4 o/pt pln hdl/hs set

2шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4 unf lub

2шт.

4

651814R1

BEARING CUP

BEARING, wheel hub outer cup

1шт.

5

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

wheel hub oil

2шт.

6

651194R1

CAP

wheel brg hub

2шт.

7

455169R92

WHEEL

15 in. pneumatic

2шт.

387897R91

VALVE STEM

VALVE, tr 415 w/core & cap

1шт.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

wheel hub

8шт.

8

541787R1

ANGLE

ASSY, gauge wheel LH

2шт.

9

541788R1

ANGLE

ASSY, gauge wheel RH

2шт.

10

541793R1

PLATE

gauge wheel LH

2шт.

11

541794R1

PLATE

gauge wheel RH

2шт.

480256R1

SPACER, gauge wheel clamp

2шт.

271783

CAGE,Hex, 3/4" - 10 x 5", Gr 5

3/4 x 5 type 5

2шт.

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

6шт.

280954

NUT,3/4"-10, G5

6шт.

12

541795R1

ANCHOR

gauge wheel

2шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

280954

NUT,3/4"-10, G5

4шт.

13

480249R1

TRUSS ROD

TURNBUCKLE

2шт.

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 hole lub

4шт.

14

480250R91

ROD

ASSY, LH

2шт.

15

480251R91

ROD

ASSY, RH

2шт.

426899

NUT,Jam, 1"-8, G5

1 jam type 5

2шт.

480255R1

HEADED PIN,1" x 2 3/16"

PIN, 1 x 2.188 pln hd type 1

4шт.

21636R1

PIN, 1/4 x 1-1/2 c-z cot.

4шт.

16

147451C1

U-BOLT,3/4" - 10

3/4

4шт.

280954

NUT,3/4"-10, G5

8шт.

541791R1

CLIP, gauge wheel

4шт.

17

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING, outer cone

2шт.

17

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

18

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING, wheel hub inner cone

2шт.

19

651817R1

BEARING CUP

BEARING, wheel hub inner cup

2шт.

20

472222R1

SLEEVE

oil seal wear

2шт.
