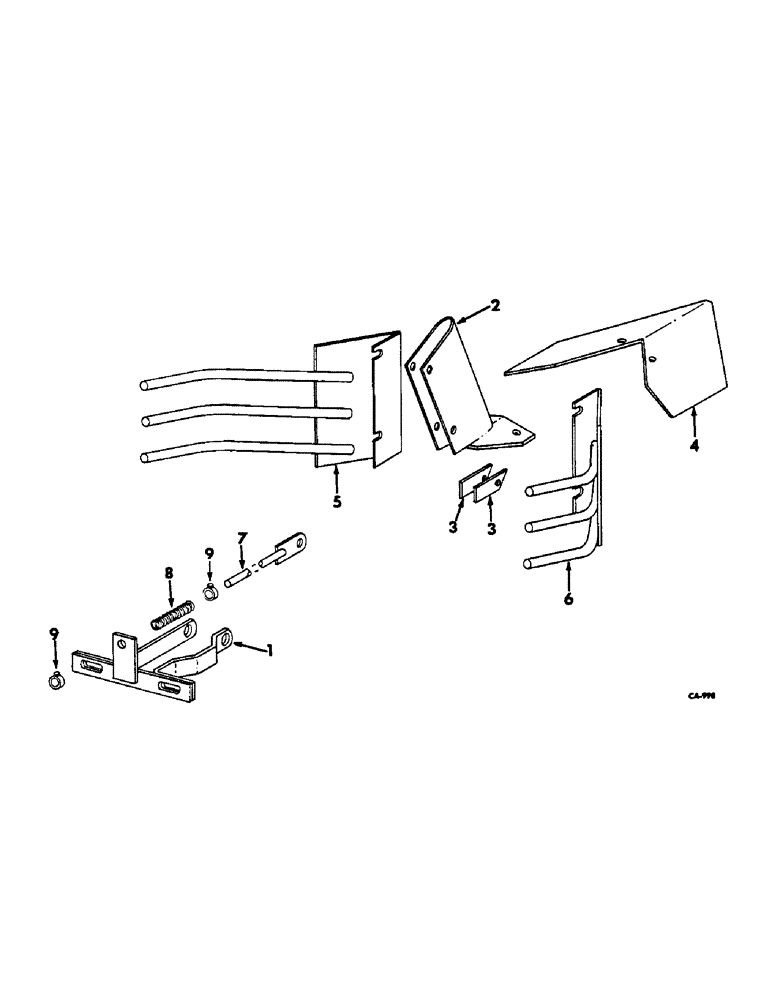

Запчасти Case IH 80 (A-33) - DEFLECTORS AND SWEEPS, MINUMUM TILLAGE

1

484153R91

FRAME ASSY, carrying

2шт.

2

477160R91

BRACKET ASSY, support

2шт.

484158R1

WASHER

BUSHING, pressure rod

2шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 znd hex-hd mach

2шт.

NLS

NO LONGER SERVICED

17/32 x 1-1/16 x 13 ga c-z

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

3

477164R1

BAR

4шт.

4

477165R91

SWEEP ASSY

2шт.

15565R1

BOLT,1/2"-13 x 1 1/4", G2, Full Thd

1/2-13 x 1-1/4 no. 3 plow

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

102637

NUT,1/2"-13, G5

4шт.

5

477168R91

DEFLECTOR ASSY, trash, left

2шт.

6

477169R91

DEFLECTOR ASSY, trash, right

2шт.

18827R1

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 2

5/8 x 3-1/2 znd hex-hd mach

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 c-z hex.

4шт.

7

484155R91

ROD ASSY, spring pressure

2шт.

8

PO104

VALVE SPRING

SPRING

2шт.

9

516595R1

COLLAR

set

4шт.

85-15010

SET SCREW,Sq Hd, 1/2"-13 x 5/8"

SCREW, 1/2-13 x 5/8 sq-hd cup-pt set

4шт.
